Toyota TOYOACE/DYNA — ROOF PANEL & BACK PANEL

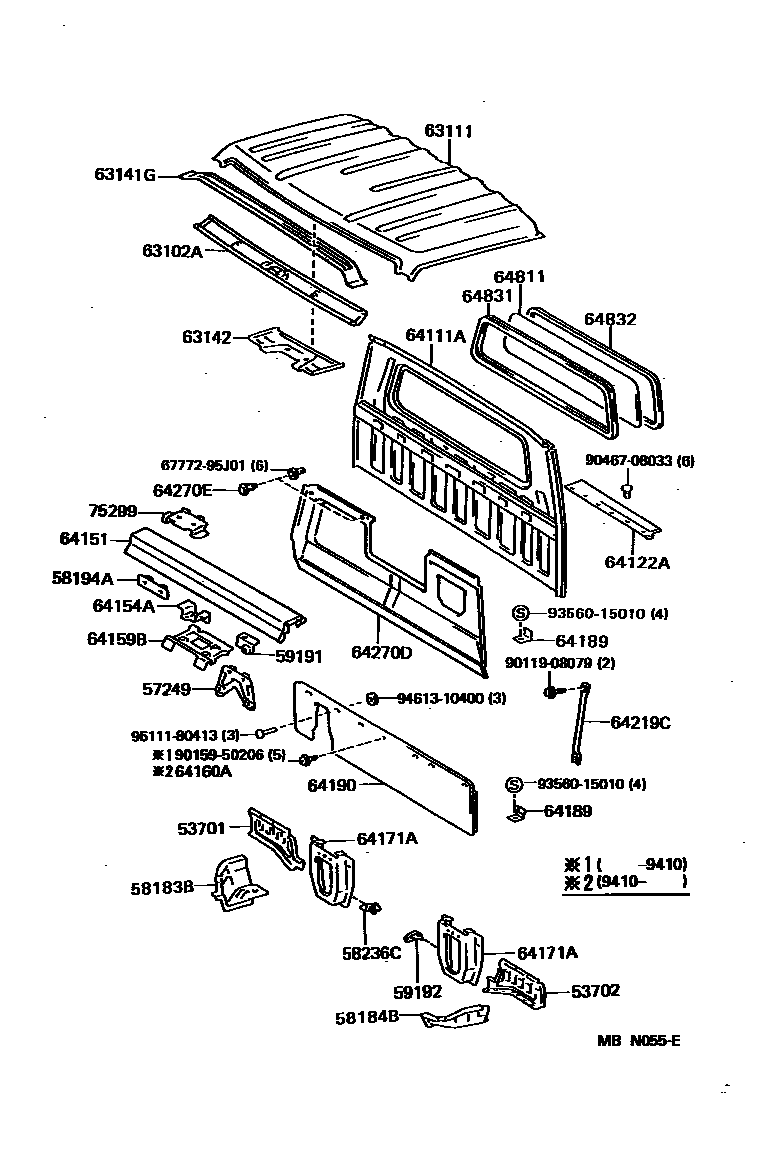

Parts diagram

53701APRON SUB-ASSY, FRONT FENDER, RH

main53717-95411i198708-198808

main53717-95413i198808-199008

main53717-95A03i198708-198808

main53717-95A05i198808-199008

53702APRON SUB-ASSY, FRONT FENDER, LH

main53718-95412i198708-198808

main53718-95414i198808-199008

main53718-95A02i198808-199008

main53718-95A03i198808-199008

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95A00i198912-199505

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95405i198708-198808

main58183-95406i198808-199008

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95404i198708-198808

main58184-95405i198808-199008

58194ARETAINER, ENGINE COVER HINGE

main58194-95400i198912-199505

58236CBRACKET, CLUTCH TUBE

main58236-95A00i198708-199505

59191BRACKET, NOISE SHUTTER

main59191-95A00i198912-199505

59192BRACKET, NOISE SHUTTER, NO.2

main59192-95A00i198708-199505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-95418i198808-199505

main63132-95420i198708-198808

63111PANEL, ROOF

main63111-37010i199004-199505

main63111-37020i199004-199505

main63111-95409i198708-199004

main63111-95410i198808-199004

main63111-95416i198808-199505

main63111-95417i198708-199505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010i199004-199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400i198708-198808

64111APANEL, BACK

main64100-25010i199107-199505

main64100-25030i199107-199309

main64100-25040i199107-199505

main64100-25050i199309-199505

main64100-95039i198808-199107

main64100-95040i198808-199107

main64100-95041i198808-199107

main64100-95042i198808-199107

main64100-95450i198708-199505

64122ABAFFLE, DUST REAR BODY

main64122-25010i199210-199505

main64122-25030i199210-199505

main64122-37060i199210-199505

main64122-95019i198708-199210

main64122-95A03i198708-199210

main64122-95A05i198708-199210

main64122-95A06i198708-199210

64151FRAME, BACK

main64151-25020i199107-199309

main64151-25021i199309-199505

main64151-37010i199107-199309

main64151-37011i199309-199505

main64151-95028i198912-199107

main64151-95409i198912-199107

64154ARETAINER, BACK FRAME SHIFT CONTROL LINK

main64154-95A00i198912-199505

64159BBRACKET, BACK FRAME SHIFT CONTROL LINK

main64159-95A00i198912-199505

main64159-95A01i198912-199505

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-C0×5i199410-199505

BLACK,TRIM1#

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25010×2i199107-199505

main64025-25020×2i199107-199505

main64171-95408×2i198708-199107

main64171-95410×2i198708-199107

64189CLAMP, BACK PANEL SILENCER

main64189-95400×4i198708-199505

64190SILENCER ASSY, BACK PANEL

main64190-95014-03i198708-199109

main64190-95014-06i198708-199109

main64190-95015i198708-199505

64219CSTAY, BACK PANEL

main64219-25010×2i199107-199505

64270DTRIM ASSY, BACK PANEL

main64160-95401-03i198708-198711

GRAY,TRIM8#

main64160-95401-06i198708-198711

BROWN,TRIM4#

main64270-25010-B0i199109-199309

GRAY,TRIM1#

main64270-95400-03i199107-199109

main64270-95400-06i199107-199109

64270ECLIP

main90467-07054-13×6i199109-199309

GRAY,TRIM1#

main90467-07054-16×6i198708-199109

BROWN,TRIM4#

64811GLASS, BACK WINDOW

main64811-37010i199109-199309

main64811-37020i199309-199505

main64811-37050×2i199109-199309

main64811-95409i199309-199406

main64812-95402×2i198708-199109

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95406i199406-199505

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010i198708-199406

main64832-95013i198708-199505

75299BASE, JACK HOLDER

main75299-95A00i198912-199505

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9011908079

main90119-08079

9015950206

main90159-50206

9046708033

main90467-08033

9356015010

main93560-15010

9461310400

main94613-10400

9511180413

main95111-80413

36 parts on this diagram · 5 diagrams in section

ROOF PANEL & BACK PANEL for Toyota TOYOACE/DYNA

This section contains 94 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota TOYOACE/DYNA. Key components include: APRON SUB-ASSY, FRONT FENDER, RH, APRON SUB-ASSY, FRONT FENDER, LH, BRACKET, FLEXIBLE HOSE, NO.1, REINFORCEMENT, REAR MOUNTING, RH, REINFORCEMENT, REAR MOUNTING, LH.
