Toyota TOYOACE/DYNA — PARTIAL ENGINE ASSEMBLY

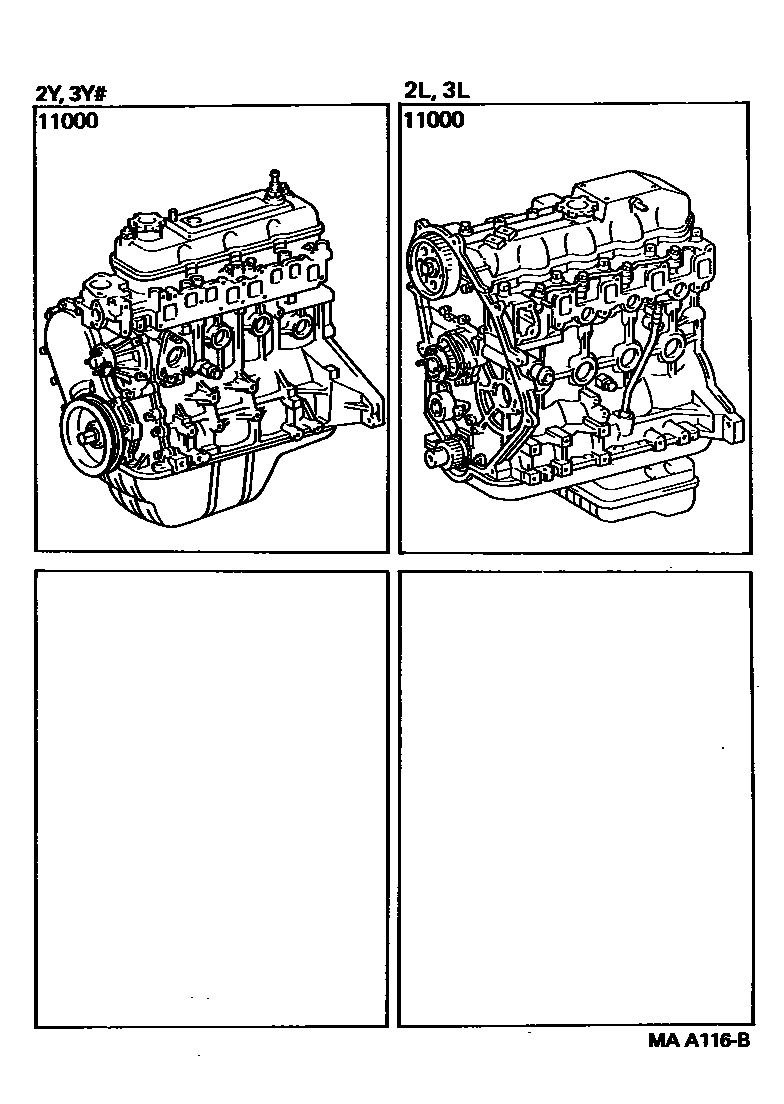

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-54510i198708-198805

main19000-54521i198805-198807

main19000-54522i198807-198808

main19000-54830i198808-198910

main19000-54840i198808-198910

main19000-5B100i198910-199505

main19000-5B110i198910-199505

main19000-72270i198708-198910

main19000-72340i198910-199303

main19000-72341i199303-199309

main19000-73360i198708-198906

main19000-73361i198906-198910

main19000-73700i198910-199008

main19000-73762i199406-199505

main19000-73770i199008-199308

main19000-73771i199308-199505

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota TOYOACE/DYNA

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota TOYOACE/DYNA. Key components include: ENGINE ASSY, PARTIAL.
