Toyota TOWNACE — LANE-KEEPING ASSIST

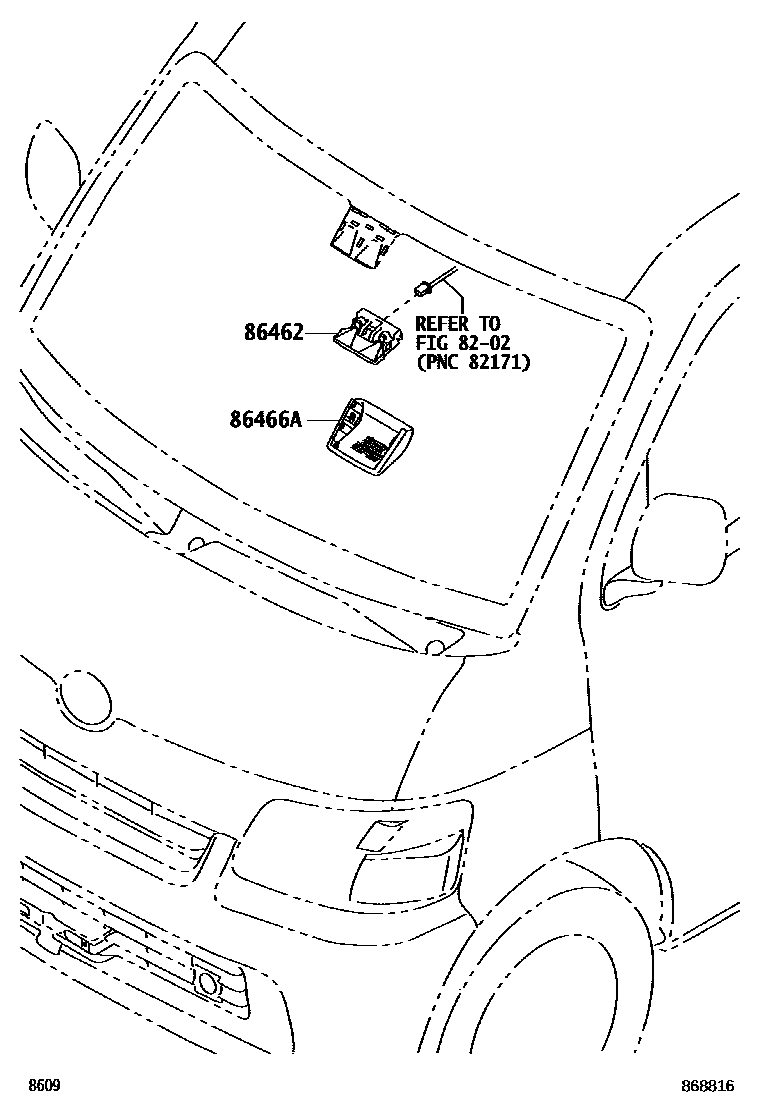

8202WIRING & CLAMP

→ Go to FIG 82-02

86462CAMERA, OBJECT RECOGNITION

main8646C-B5100i202201

main8646C-B5110i202212

86466ACOVER, LANE RECOGNITION, NO.1

main86466-B5030-C0i202201

BLACK,TRIM1#

3 parts on this diagram · 1 diagram in section

LANE-KEEPING ASSIST for Toyota TOWNACE

This section contains 3 genuine Toyota parts for the LANE-KEEPING ASSIST system of the Toyota TOWNACE. Key components include: WIRING & CLAMP, CAMERA, OBJECT RECOGNITION, COVER, LANE RECOGNITION, NO.1.
