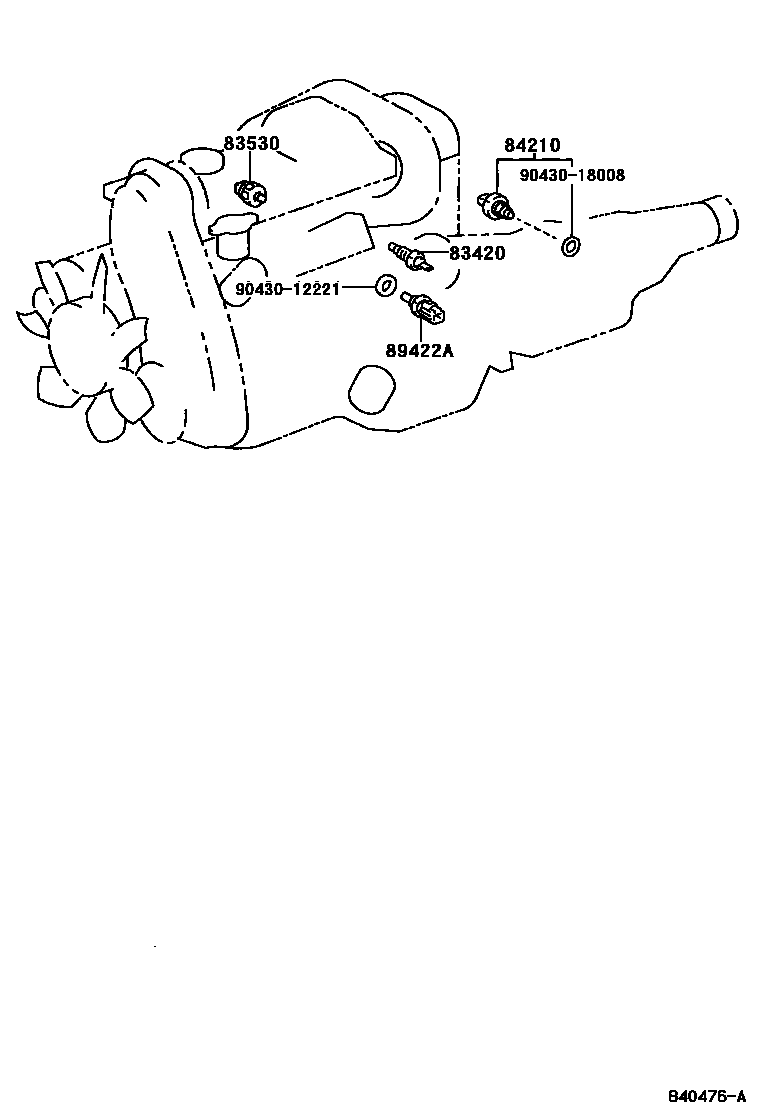

Toyota TOWNACE/LITEACE — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040i199611-200412

main83420-20020i199611-200112

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14070i199611-199803

DENSO

main83530-28010i199803-200412

DENSO

main83530-28020i199803-200310

DENSO

main83530-30090i199611-199803

main83530-30100i199611-199803

YAZAKI

main83530-60010i199803-200412

YAZAKI

main83530-60020i199803-200310

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i199611-200412

89422ASENSOR, WATER TEMPERATURE

main89422-20010i199611-200112

9043012221

main90430-12221

9043018008

main90430-18008

6 parts on this diagram · 16 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota TOWNACE/LITEACE

This section contains 109 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota TOWNACE/LITEACE. Key components include: VACUUM PIPING, IGNITION COIL & SPARK PLUG / GLOW PLUG, FUEL FILTER, RELAY ASSY, STARTER, TIMER, PREHEATING.
