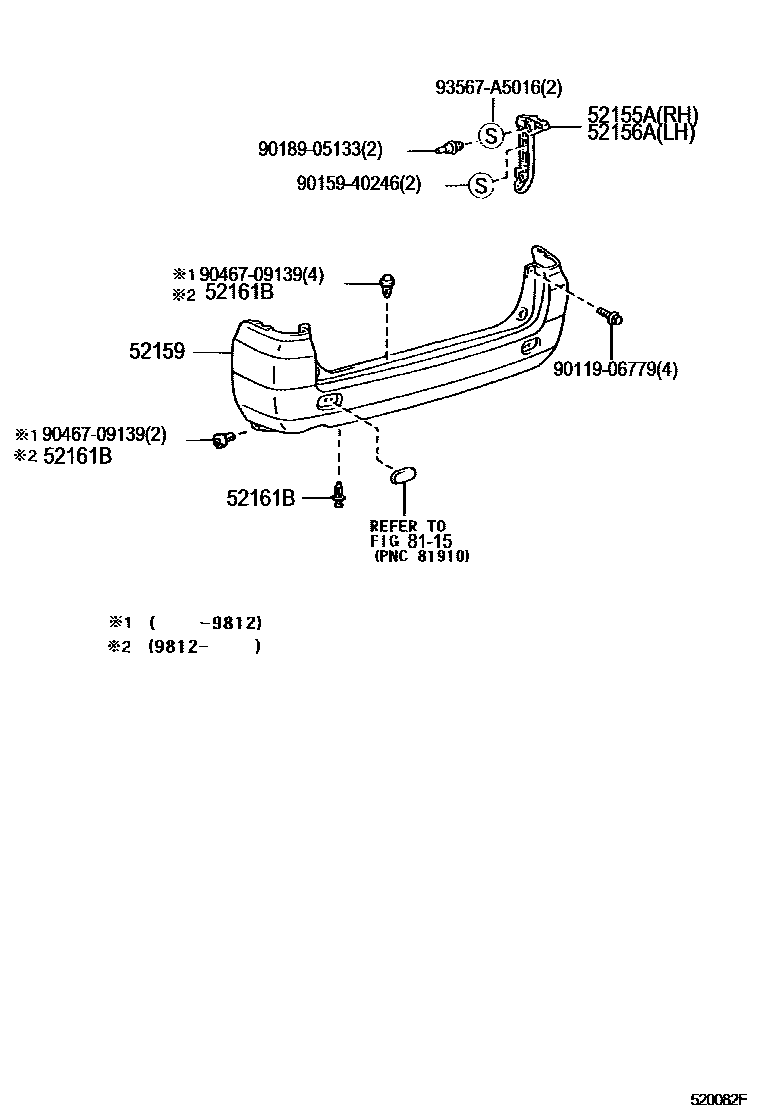

Toyota TOWNACE/LITEACE — REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28050i199611-199812

main52155-28060i199812-200111

WHITE

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-28030i199812-200111

BLACK

main52156-28040i199812-200112

WHITE

52159COVER, REAR BUMPER

main52159-28120i199812-200412

PIGMENTATION BLACK

main52159-28903i199812-200111

FOR BODY COLOR = TWO TONE

52161BPIECE, REAR BUMPER

main52161-16010×6i199812-200112

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011906779

main90119-06779

9015940246

main90159-40246

9018905133

main90189-05133

9046709139

main90467-09139

93567A5016

main93567-A5016

10 parts on this diagram · 1 diagram in section

REAR BUMPER & BUMPER STAY for Toyota TOWNACE/LITEACE

This section contains 10 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota TOWNACE/LITEACE. Key components include: SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, COVER, REAR BUMPER, PIECE, REAR BUMPER, REFLEX REFLECTOR.
