Toyota TOWNACE/LITEACE — PARTIAL ENGINE ASSEMBLY

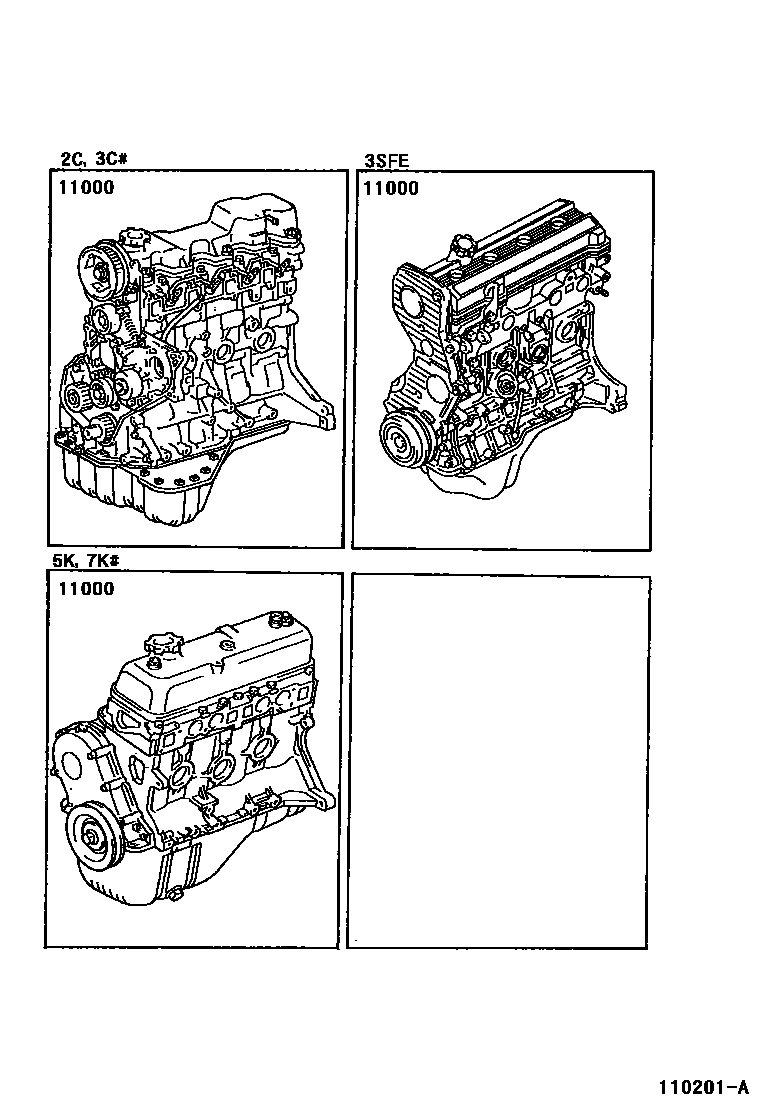

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-06020i199611-199812
main19000-06080i199812-200310
main19000-06090i199812-200310
main19000-13540i199611-199812
main19000-6A110i199611-199808
sub90105-16064
sub90560-16025
main19000-6A111i199808-199812
main19000-6A240i200008-200407
main19000-6A250i199812-200112
main19000-7A160i199611-199812
main19000-7A390i199710-199812
main19000-7A550i199812-200111
main19000-7A560i199812-200111

1 parts on this diagram · 1 diagram in section
