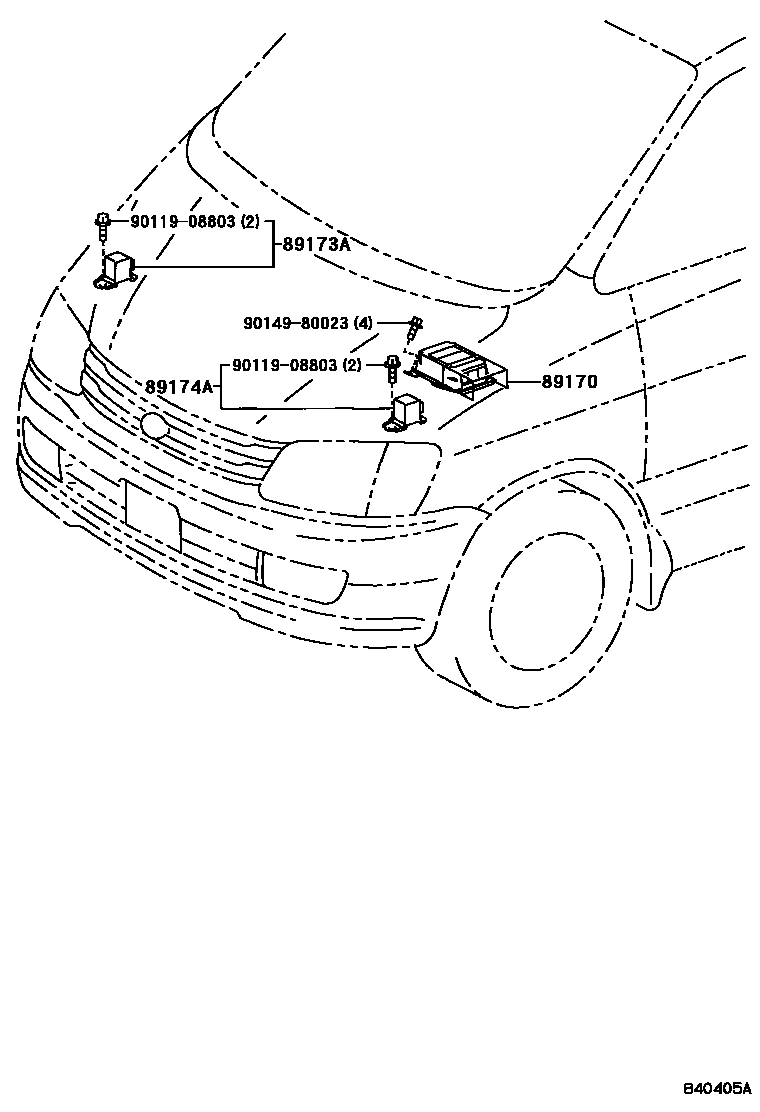

Toyota TOWNACE/LITEACE — AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-28090i199611-199710

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-28100i199611-199710

W(*80,DRIVER SIDE)

main89170-28110i199801-199812

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-28120i199801-199812

W(*80,DRIVER SIDE)

main89170-28150i199812-200111

W(*80,DRIVER SIDE & PASSENGER SIDE)

main89170-28160i199812-200111

W(*80,DRIVER SIDE)

main89170-28200i200208-200310

89173ASENSOR, AIRBAG, FRONT RH

main89173-29135i199812-200208

main89173-29215i200208-200310

89174ASENSOR, AIRBAG, FRONT LH

main89173-29135i199812-200208

main89173-29215i200208-200310

9011908803

main90119-08803

9014980023

main90149-80023

5 parts on this diagram · 1 diagram in section

AIR BAG for Toyota TOWNACE/LITEACE

This section contains 5 genuine Toyota parts for the AIR BAG system of the Toyota TOWNACE/LITEACE. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH.
