Toyota TOWN/MASTERACE V,WG — STEERING WHEEL

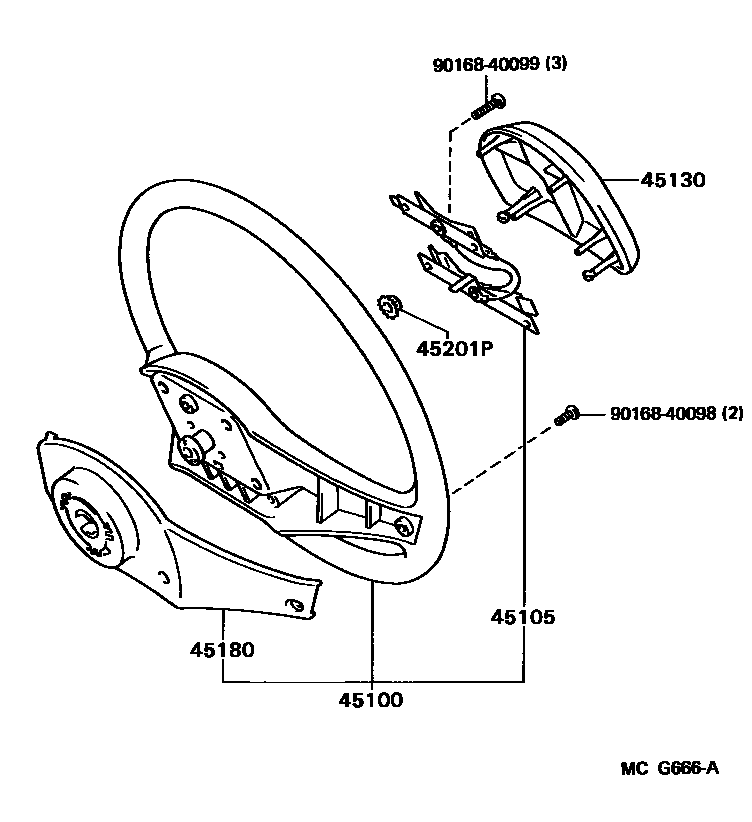

Parts diagram
45100WHEEL ASSY, STEERING
main45100-28030-03i198808-199201
SHADOW GRAY,TRIM1#
main45100-28030-06i198808-199201
SABLE,TRIM4#
main45100-28040-03i198808-199201
SHADOW GRAY,TRIM1#
main45100-28040-06i198808-199201
SABLE,TRIM4#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-28010i198808-199201
main45105-28020i198808-199201
45130BUTTON ASSY, HORN
main45130-28100-03i198808-199201
SHADOW GRAY,TRIM1#
main45130-28100-06i198808-199201
SABLE,TRIM4#
main45130-28110-03i198808-199201
main45130-28110-06i198808-199201
main45130-28120-03i198808-199201
SHADOW GRAY,TRIM1#
main45130-28120-06i198808-199201
SABLE,TRIM4#
main45130-28130-03i198808-199201
main45130-28130-06i198808-199201
45180COVER SUB-ASSY, STEERING WHEEL
main45180-28010-03i198808-199201
SHADOW GRAY,TRIM1#
main45180-28010-06i198808-199201
SABLE,TRIM4#
main45180-28020-03i198808-199201
SHADOW GRAY,TRIM1#
main45180-28020-06i198808-199201
SABLE,TRIM4#
45201PNUT, STEERING WHEEL SET
main90179-12086i198808-199201
9016840098
main90168-40098
9016840099
main90168-40099

7 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota TOWN/MASTERACE V,WG

This section contains 11 genuine Toyota parts for the STEERING WHEEL system of the Toyota TOWN/MASTERACE V,WG. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, BUTTON ASSY, HORN, COVER SUB-ASSY, STEERING WHEEL, NUT, STEERING WHEEL SET.
