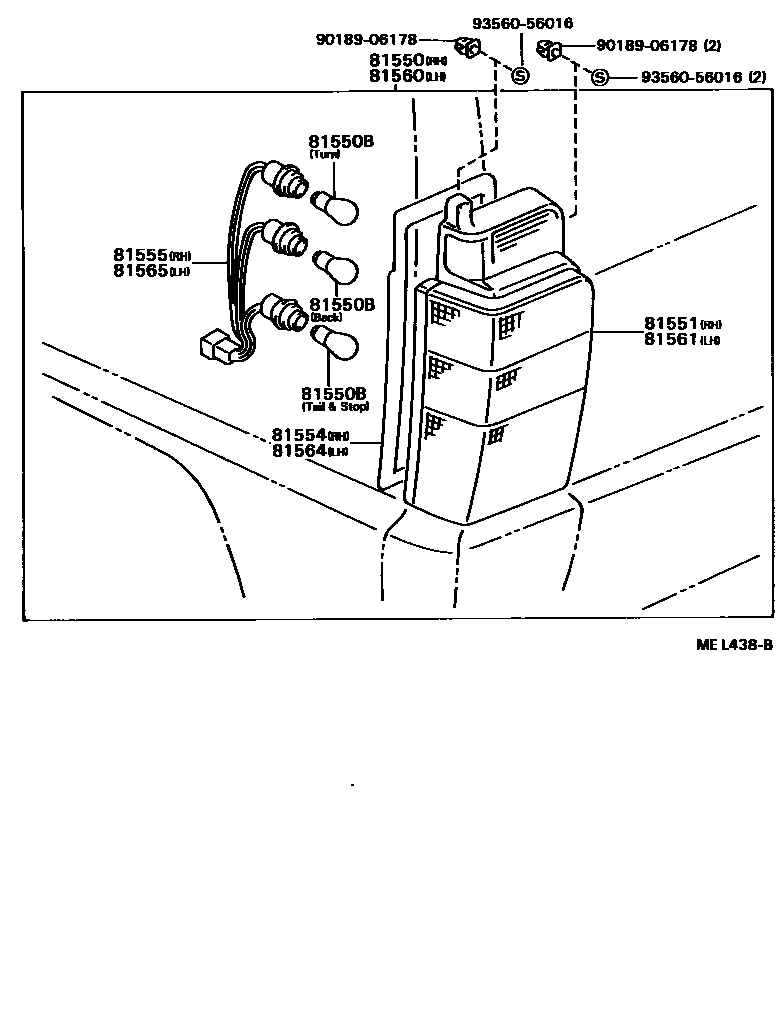

Toyota TOWN/MASTERACE V,WG — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-87008i198808-199201

main81550-87009i198808-199201

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2i198808-199201

main99132-21210×2i198808-199201

81551LENS, REAR COMBINATION LAMP, RH

main81551-87008i198808-199201

main81551-87009i198808-199201

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-87008i198808-199201

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-87008i198808-199201

main81555-87009i198808-199201

81560LAMP ASSY, REAR COMBINATION, LH

main81560-87008i198808-199201

main81560-87009i198808-199201

81561LENS, REAR COMBINATION LAMP, LH

main81561-87008i198808-199201

main81561-87009i198808-199201

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-87008i198808-199201

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-87008i198808-199201

main81555-87009i198808-199201

9018906178

main90189-06178

9356056016

main93560-56016

11 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota TOWN/MASTERACE V,WG

This section contains 16 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota TOWN/MASTERACE V,WG. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
