Toyota TOWN/MASTERACE V,WG — PARTIAL ENGINE ASSEMBLY

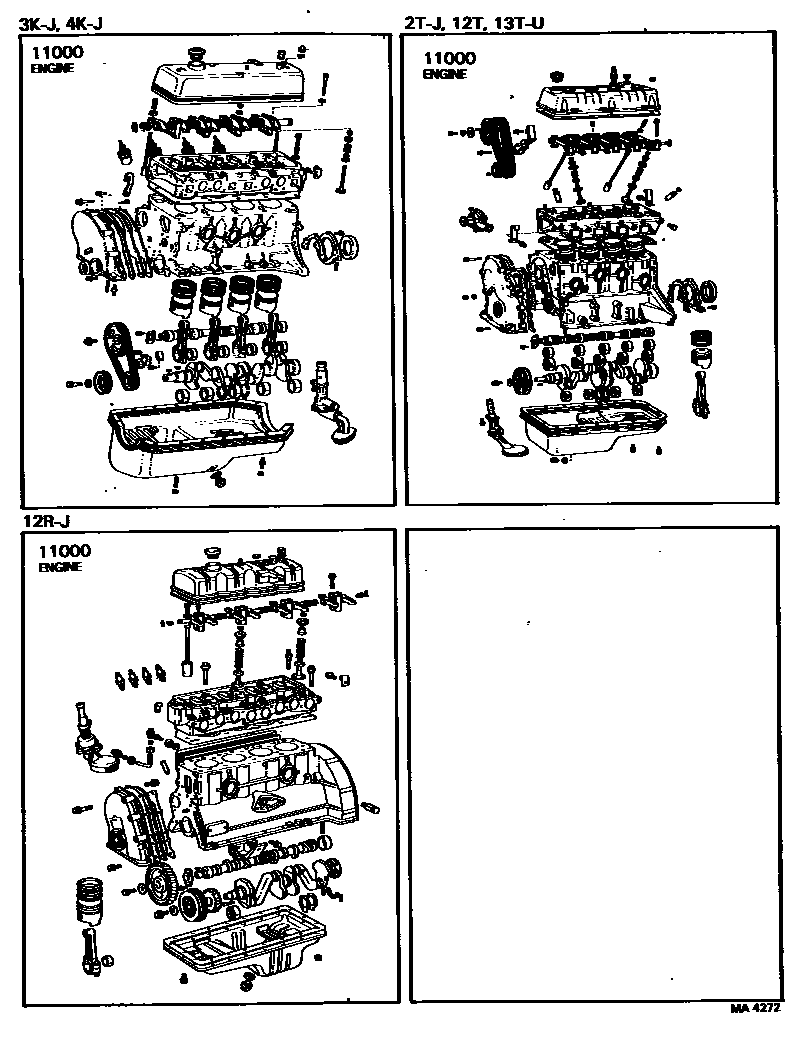

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-13020i197802-197910

main19000-13070i197910-198210

main19000-18030i197808-197910

main19000-18031i197910-198207

main19000-18032i198207-198210

main19000-24055i197610-197705

main19000-24056i197705-197710

main19000-24057i197710-197802

main19000-26210i197610-197704

main19000-26211i197704-197708

main19000-26212i197708-197910

main19000-26213i197910-198210

main19000-27050i197610-197808

main19000-31260i197808-197911

main19000-31280i197911-198001

main19000-31281i198001-198210

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota TOWN/MASTERACE V,WG

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota TOWN/MASTERACE V,WG. Key components include: ENGINE ASSY, PARTIAL.
