Toyota TOWN/MASTERACE V,WG — FRONT TURN SIGNAL LAMP

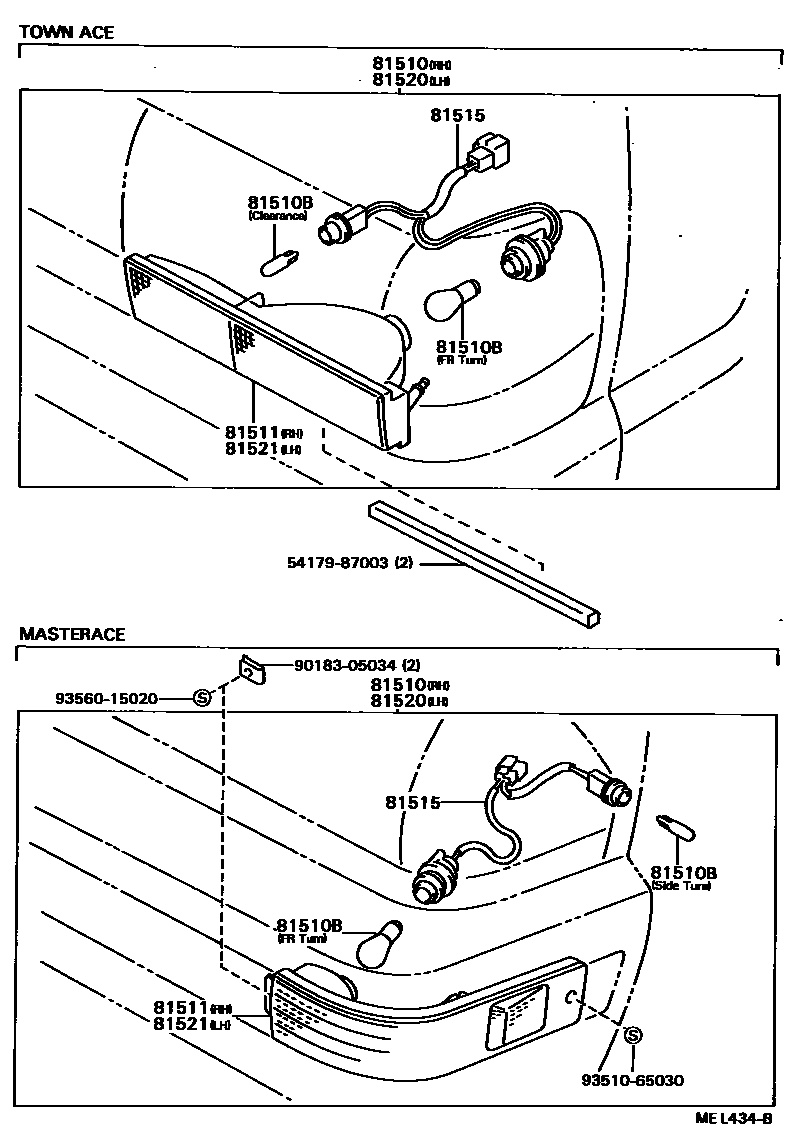

Parts diagram

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-87013i198808-199201

main81510-87014i198808-199201

main81510-87015i198808-199201

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2i198808-199201

main99132-12050×2i198808-199201

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-87013i198808-199201

main81511-87014i198808-199201

main81511-87015i198808-199201

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-87013×2i198808-199201

main81515-87014×2i198808-199201

main81515-87015×2i198808-199201

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-87013i198808-199201

main81520-87014i198808-199201

main81520-87015i198808-199201

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-87013i198808-199201

main81521-87014i198808-199201

main81521-87015i198808-199201

5417987003

main54179-87003

9018305034

main90183-05034

9351065030

main93510-65030

9356015020

main93560-15020

10 parts on this diagram · 2 diagrams in section

FRONT TURN SIGNAL LAMP for Toyota TOWN/MASTERACE V,WG

This section contains 12 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota TOWN/MASTERACE V,WG. Key components include: LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY, LAMP ASSY, FRONT TURN SIGNAL, LH.
