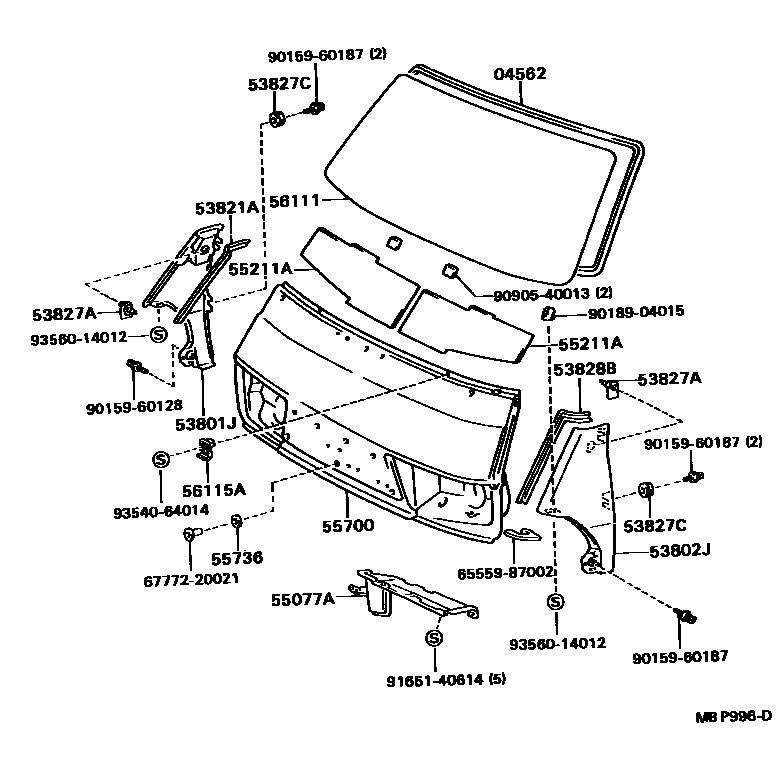

Toyota TOWN/MASTERACE V,WG — FRONT PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
53801JPANEL SUB-ASSY, FRONT SIDE, RH
53802JPANEL SUB-ASSY, FRONT SIDE, LH
53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH
53827ARETAINER, FRONT SIDE PANEL SET
53827CPROTECTOR, FRONT SIDE PANEL, NO.4
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
55077ACOVER SUB-ASSY, HEATER AIR DUCT HOLE
55211ASILENCER, FRONT PANEL, UPPER
55700PANEL ASSY, FRONT
55736SEAL, WATER GUARD PLATE
main55736-28010iCR21,28,30,37,YR20,28,36..B,D,F,G; YR20..E;CR21,27,30,36,KR2#,YR21,25,30..(HRF,SRF)..(D,E,N,Q)198808-199201
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
6555987002PAD, SIDE PANEL REAR END POST
main65559-87002
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9015960128
main90159-60128
9015960187
main90159-60187
9018904015
main90189-04015
9090540013
main90905-40013
9165140614
main91651-40614
9354064014
main93540-64014
9356014012
main93560-14012
22 parts on this diagram · 2 diagrams in section
FRONT PANEL & WINDSHIELD GLASS for Toyota TOWN/MASTERACE V,WG
This section contains 33 genuine Toyota parts for the FRONT PANEL & WINDSHIELD GLASS system of the Toyota TOWN/MASTERACE V,WG. Key components include: DAM KIT, WINDSHIELD GLASS, PAD, HEADLAMP DOOR, PACKING, HEADLAMP SERVICE HOLE COVER, SHIELD, HEATER AIR, LH, RETAINER, COOL AIR INTAKE DUCT.
