Toyota TOWN/MASTERACE V,WG — FRONT PANEL & WINDSHIELD GLASS

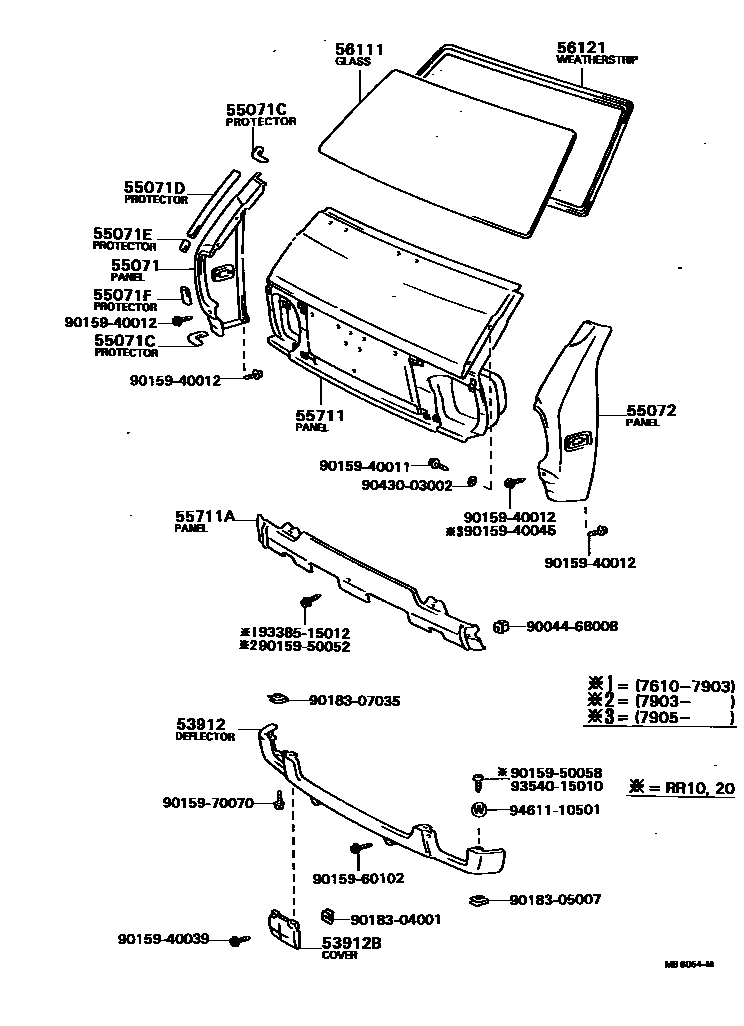

Parts diagram

53912DEFLECTOR, FRONT BUMPER STONE

main53161-87001i197610-197910

main53161-87002i197910-198101

main53161-95D00i197808-198101

main53161-95D01i198101-198210

53912BCOVER, STEERING GEAR HOUSING

main52113-95D00i197808-198210

55071PANEL SUB-ASSY, FRONT SIDE, RH

main55713-87001i197610-198101

main55713-87002i198101-198210

55071CPROTECTOR, FRONT SIDE PANEL, NO.1

main55716-87001×4i197807-198210

NATURAL

main55716-87002×4i197807-198210

BLACK

55071DPROTECTOR, FRONT SIDE PANEL, NO.2

main55717-87001×2i197807-198210

55071EPROTECTOR, FRONT SIDE PANEL, NO.3

main55718-87001×2i197807-198210

55071FPROTECTOR, FRONT SIDE PANEL, NO.4

main55719-87001×2i197807-198210

NATURAL

main55719-87002×2i197807-198210

BLACK

55072PANEL SUB-ASSY, FRONT SIDE, LH

main55714-87001i197610-198101

main55714-87002i198101-198210

55711PANEL, COWL TOP, OUTER

main55701-87003i197610-197910

main55701-87007i197910-198101

main55701-87009i198101-198210

main55701-87011i198101-198210

main55701-95D00i197808-197911

main55701-95D01i197911-198210

55711APANEL, FRONT, LOWER

main55721-87001i197610-198101

main55721-87002i198101-198210

56111GLASS, WINDSHIELD

main56111-87001i198101-198210

*ZT,T=5.0

main56111-87002i197610-197910

*TZT,T=5.0

main56111-87004i198101-198210

*TL,T=5.3

main56111-87005i198201-198210

BRONZE,*TZT,T=5.0

56121WEATHERSTRIP, WINDSHIELD

main56121-87001i197909-198210

main56121-87002i197909-198210

main56121-95D00i197909-198210

main56121-95D01i197909-198210

9004468008

main90044-68008

9015940011

main90159-40011

9015940012

main90159-40012

9015940039

main90159-40039

9015940045

main90159-40045

9015950052

main90159-50052

9015950058

main90159-50058

9015960102

main90159-60102

9015970070

main90159-70070

9018304001

main90183-04001

9018305007

main90183-05007

9018307035

main90183-07035

9043003002

main90430-03002

9338515012

main93385-15012

9354015010

main93540-15010

9461110501

main94611-10501

28 parts on this diagram · 3 diagrams in section

FRONT PANEL & WINDSHIELD GLASS for Toyota TOWN/MASTERACE V,WG

This section contains 35 genuine Toyota parts for the FRONT PANEL & WINDSHIELD GLASS system of the Toyota TOWN/MASTERACE V,WG. Key components include: DEFLECTOR, FRONT BUMPER STONE, COVER, STEERING GEAR HOUSING, PANEL SUB-ASSY, FRONT SIDE, RH, PROTECTOR, FRONT SIDE PANEL, NO.1, PROTECTOR, FRONT SIDE PANEL, NO.2.
