Toyota TOWN/MASTERACE V,WG — FRONT BUMPER & BUMPER STAY

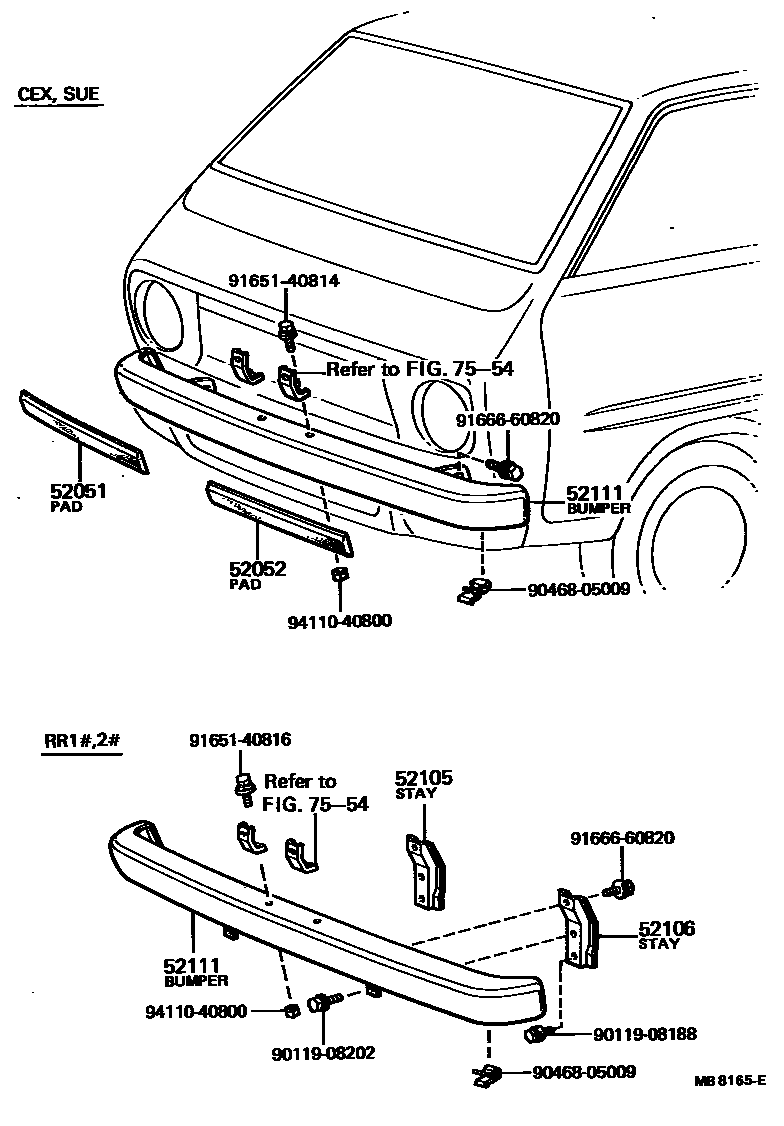

Parts diagram

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-29105i198101-198210

main52129-87001i197808-198101

main52401-87101i197706-197706

SPECIAL WAGON

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-29025i198101-198210

main52161-87001i198101-198210

main52401-87101i197706-197706

SPECIAL WAGON

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-87002i197610-198101

main52143-95D00i197808-198210

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-87001i197610-198101

main52143-95D00i197808-198210

52111BUMPER ASSY, FRONT

main52018-29015i197610-197811

main52018-29025i197610-198101

main52018-29035i198101-198210

main52018-87003i197808-198101

main52018-87005i198101-198210

main52018-87007i198101-198210

DARK GRAY-M

main52018-87008i198101-198210

DARK GRAY-M

main52018-87009i198009-198009

EVENT,BLACK

main52018-87010i198101-198210

WHITE

main52018-87011i198101-198210

WHITE

main52018-95D00i197808-198101

main52018-95D01i198101-198210

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

9011908188

main90119-08188

9011908202

main90119-08202

9046805009

main90468-05009

9165140814

main91651-40814

9165140816

main91651-40816

9166660820

main91666-60820

9411040800

main94110-40800

13 parts on this diagram · 6 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota TOWN/MASTERACE V,WG

This section contains 32 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota TOWN/MASTERACE V,WG. Key components include: PAD SUB-ASSY, FRONT BUMPER, RH, PAD SUB-ASSY, FRONT BUMPER, LH, STAY SUB-ASSY, FRONT BUMPER, RH, STAY SUB-ASSY, FRONT BUMPER, LH, BUMPER ASSY, FRONT.
