Toyota TOWN/MASTERACE V,WG — FOG LAMP

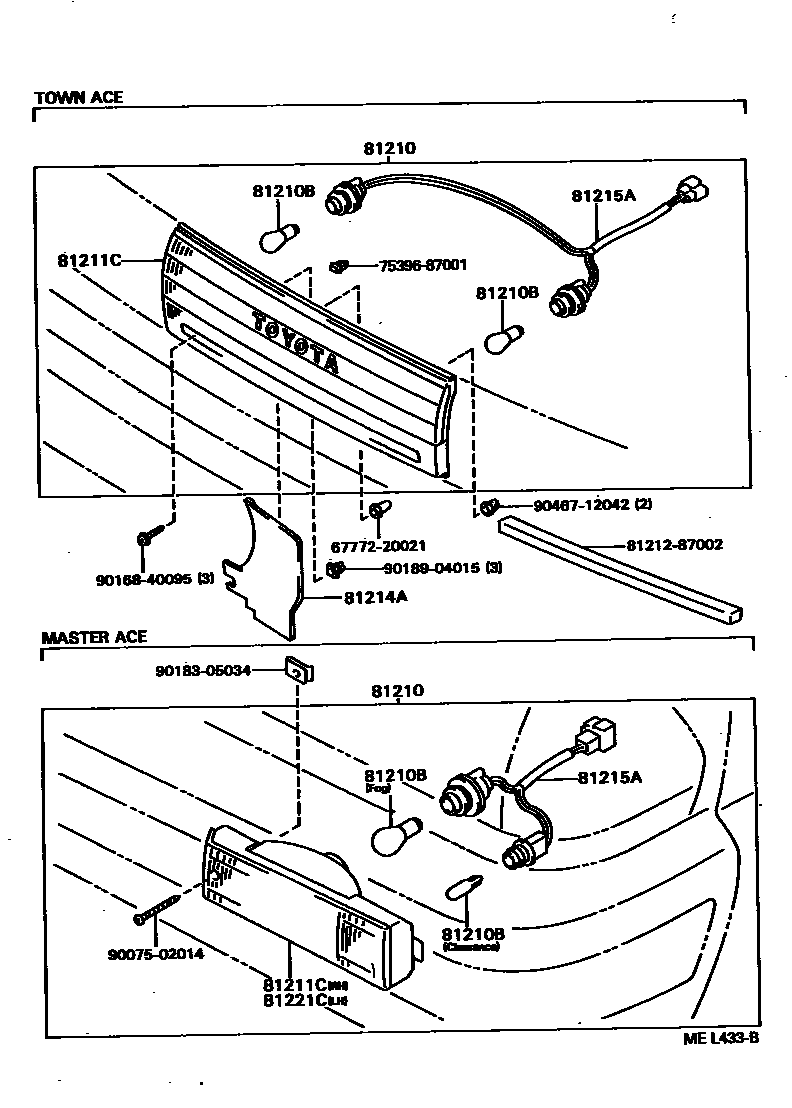

Parts diagram

81210LAMP ASSY, FOG

main81210-87005i198808-199201

main81210-87006i198808-199201

main81220-87006i198808-199201

81210BBULB, FOG LAMP

main90981-13026×2i198808-199008

main90981-13052×2i199008-199201

main99132-12050×2i198808-199201

81211CLAMP UNIT, FOG LAMP, RH

main81211-87005i198808-199201

main81211-87006i198808-199201

81214APACKING, FOG LAMP BODY

main81214-87001i198808-199201

81215ASOCKET & WIRE, FOG LAMP

main81215-87005i198808-199201

main81215-87006×2i198808-199201

81221CLAMP UNIT, FOG LAMP, LH

main81221-87006i198808-199201

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

7539687001CLIP, OUTSIDE MOULDING, NO.2

main75396-87001

8121287002GASKET, FOG LAMP LENS

main81212-87002

9007502014

main90075-02014

9016840095

main90168-40095

9018305034

main90183-05034

9018904015

main90189-04015

9046712042

main90467-12042

14 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota TOWN/MASTERACE V,WG

This section contains 14 genuine Toyota parts for the FOG LAMP system of the Toyota TOWN/MASTERACE V,WG. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, PACKING, FOG LAMP BODY, SOCKET & WIRE, FOG LAMP.
