Toyota TOWN/MASTERACE V,WG — FOG LAMP

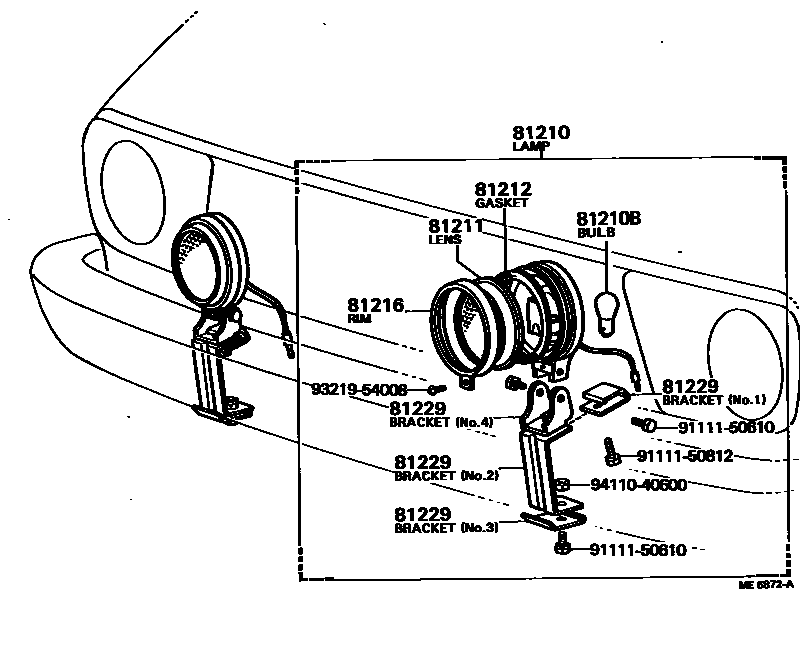

Parts diagram
81210LAMP ASSY, FOG
main81210-87002×2i197706-197706
SPECIAL WAGON
81210BBULB, FOG LAMP
main81221-87002×2i197706-197706
12V 35W,SPECIAL WAGON
81211LENS, FOG LAMP
main81211-87001×2i197706-197706
SPECIAL WAGON
81212GASKET, FOG LAMP LENS
main81212-87001×2i197706-197706
SPECIAL WAGON
81216RIM, FOG LAMP, NO.1
main81216-87001×2i197706-197706
SPECIAL WAGON
81229BRACKET, FOG LAMP
main81217-87002×2i197706-197706
NO.1,SPECIAL WAGON
main81217-87003×2i197706-197706
NO.2,SPECIAL WAGON
main81217-87004×2i197706-197706
NO.3,SPECIAL WAGON
main81217-87005×2i197706-197706
NO.4,SPECIAL WAGON
9111150610
main91111-50610
9111150812
main91111-50812
9321954008
main93219-54008
9411040600
main94110-40600

10 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota TOWN/MASTERACE V,WG

This section contains 10 genuine Toyota parts for the FOG LAMP system of the Toyota TOWN/MASTERACE V,WG. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, GASKET, FOG LAMP LENS, RIM, FOG LAMP, NO.1.
