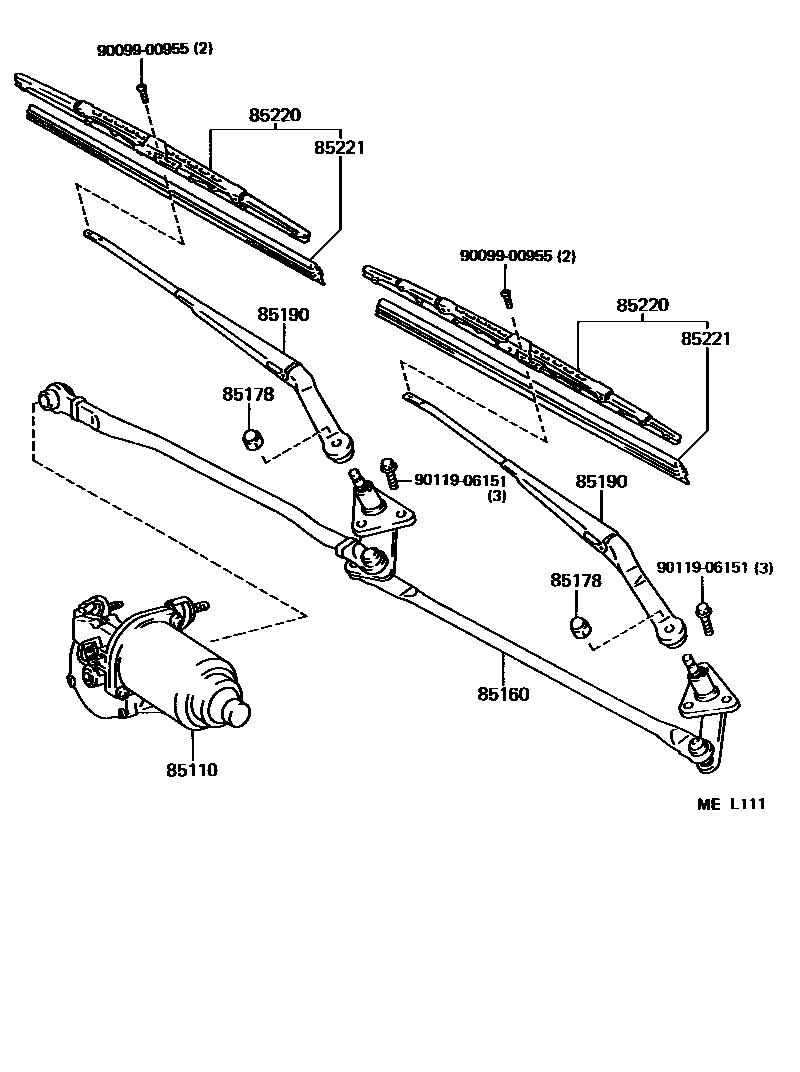

Toyota TERCEL — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16262iEL31..CND198808-199009

COLD SPEC

sub85110-16470

main85110-16370iEL31..USA198808-198903

main85110-16371iEL31..USA198903-199009

sub85110-16460

85160LINK ASSY, WINDSHIELD WIPER

main85160-16200iEL31..CND198808-199009

COLD SPEC

main85160-16240iEL31..USA198808-199009

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iEL31198808-199009

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-16170iEL31198808-198912

LH

main85190-16171iEL31198912-199009

LH

main85210-16040iEL31198808-198912

RH

main85210-16041iEL31198912-199009

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16670iEL31198808-198912

RH

main85220-16671iEL31198912-199009

RH

sub85212-47021

sub85230-14030

main85220-32280iEL31198808-198912

LH

main85220-3A060iEL31198912-199009

LH

sub85222-23050

85221BLADE, WINDSHIELD WIPER

main85221-16100iEL31198808-199009

RH

sub85223-18010

main85221-32060iEL31198808-199009

LH

sub85221-30130

9009900955

main90099-00955

9011906151

main90119-06151

8 parts on this diagram · 1 diagram in section
