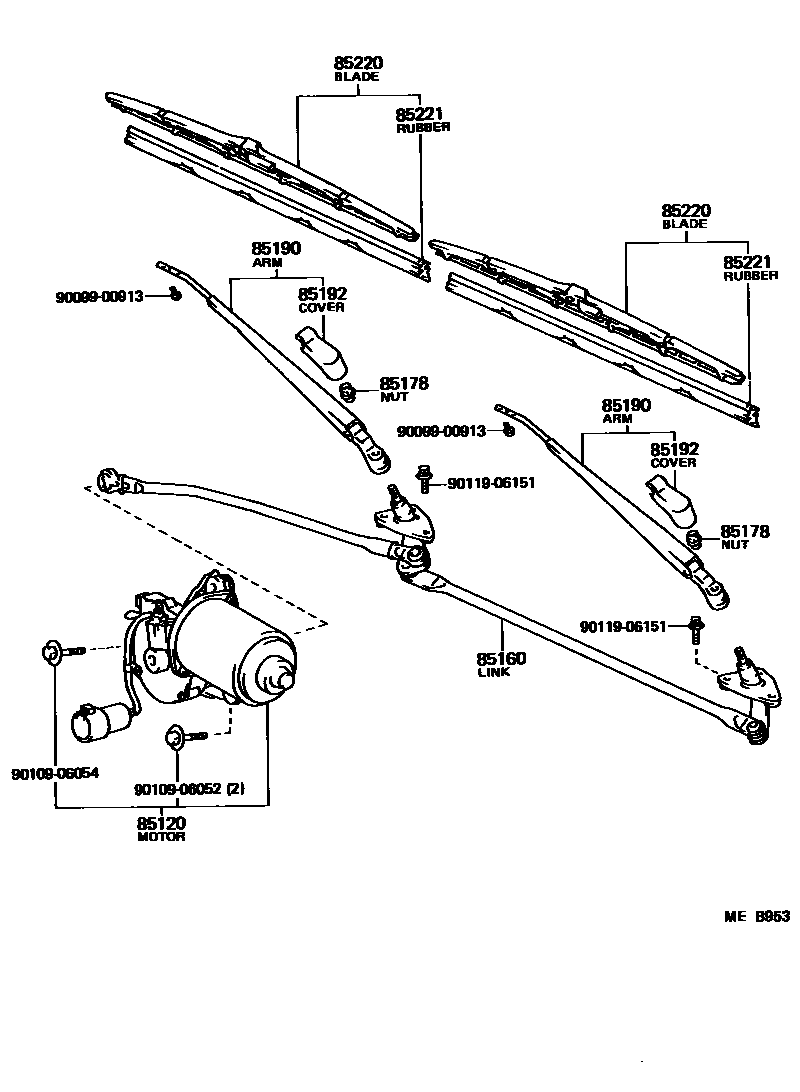

Toyota TERCEL — WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-16120iAL2#..USA198208-198801

main85120-16130iAL2#..USA198208-198308

COLD SPEC

main85120-16131iAL2#..USA198308-198608

COLD SPEC

main85120-16132iAL2#..USA198608-198704

COLD SPEC

main85120-16133iAL2#..USA198704-198801

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-16130iAL2#..USA198208-198608

main85160-16140iAL2#..USA198208-198608

COLD SPEC

main85160-16141iAL2#..USA198608-198801

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016×2iAL2#198208-198801

85190ARM ASSY, WINDSHIELD WIPER

main85190-16100iAL2#198208-198801

LH

main85210-16020iAL2#198208-198801

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-16020×2iAL2#198208-198801

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16140iAL2#198208-198306

LH

main85220-16150iAL2#198208-198306

RH

sub85220-16640

main85220-16270iAL2#198306-198801

LH

sub85220-16640

main85220-16340iAL2#198306-198801

RH

sub85220-16640

85221BLADE, WINDSHIELD WIPER

main85221-12120×2iAL2#198208-198306

sub85214-24H90

main85221-30100×2iAL2#198306-198801

sub85221-40040

9009900913

main90099-00913

9010906052

main90109-06052

9010906054

main90109-06054

9011906151

main90119-06151

11 parts on this diagram · 1 diagram in section
