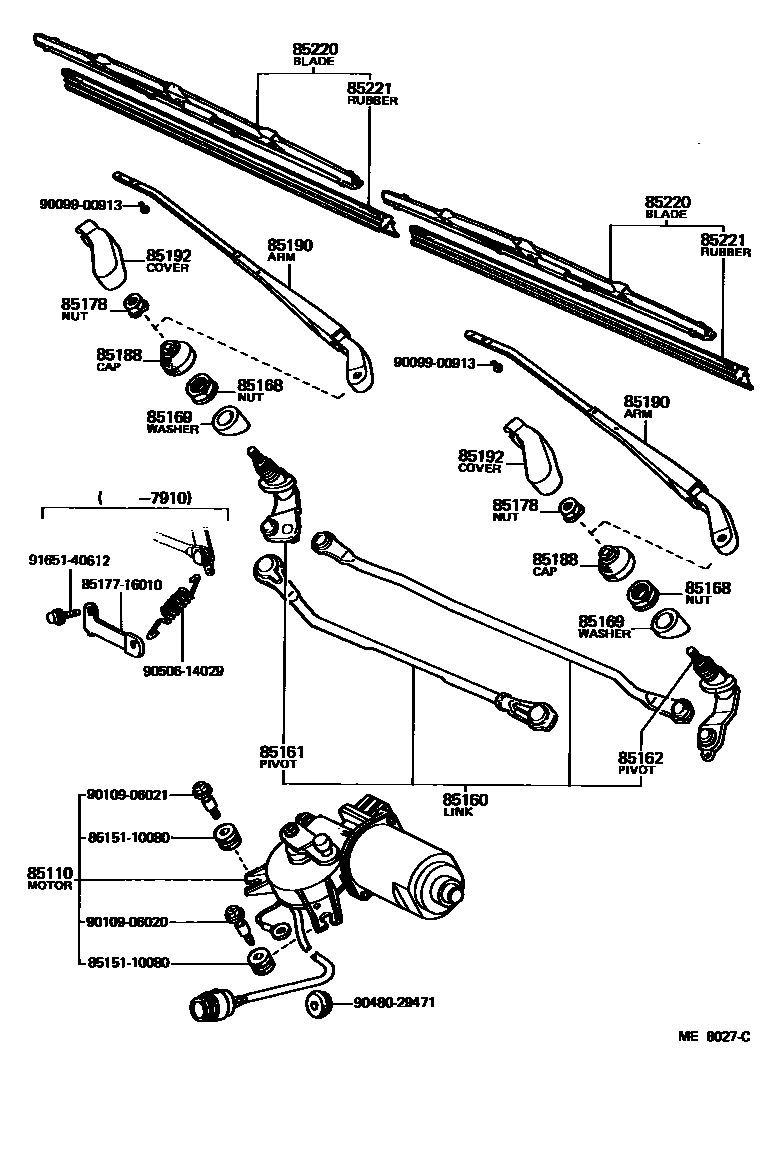

Toyota TERCEL — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
COLD SPEC
W/AM/FM RADIO
ARCTIC,W/AM/FM RADIO
85160LINK ASSY, WINDSHIELD WIPER
COLD SPEC
LH
LH,COLD SPEC
RH
RH,COLD SPEC
85161PIVOT, WINDSHIELD WIPER LINK, NO.1
COLD SPEC
COLD SPEC
85162PIVOT, WINDSHIELD WIPER LINK, NO.2
COLD SPEC
COLD SPEC
85168NUT, WINDSHIELD WIPER LINK PIVOT
85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85178NUT (FOR FRONT WIPER ARM SETTING)
85188CAP, WINDSHIELD WIPER PIVOT, NO.1
85192COVER, WINDSHIELD WIPER ARM
85220BLADE ASSY, WINDSHIELD WIPER
RH
LH
8515110080BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
main85151-10080
8517716010SHAFT, WINDSHIELD WIPER LINK
main85177-16010
9009900913
main90099-00913
9010906020
main90109-06020
9010906021
main90109-06021
9048029471
main90480-29471
9050614029
main90506-14029
9165140612
main91651-40612
20 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota TERCEL
This section contains 25 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota TERCEL. Key components include: MOTOR ASSY, WINDSHIELD WIPER, MOTOR AND BRACKET ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, PIVOT, WINDSHIELD WIPER LINK, NO.1, PIVOT, WINDSHIELD WIPER LINK, NO.2.
