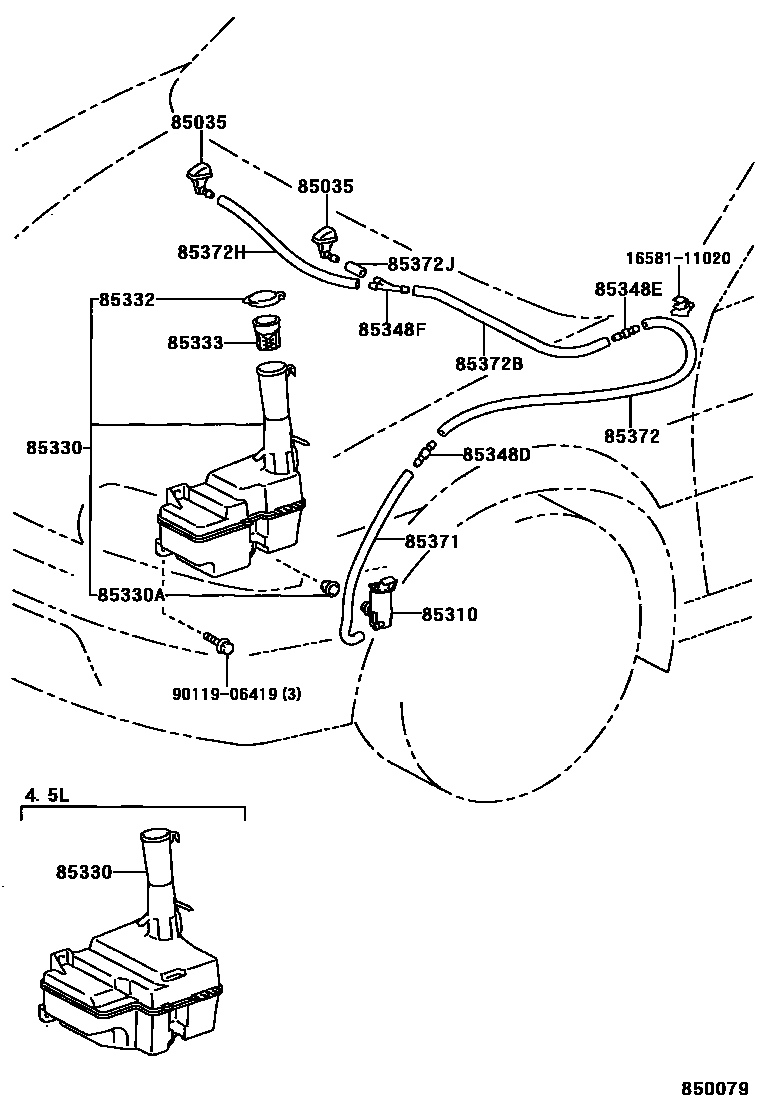

Toyota TERCEL — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16070×2iEL53199409

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20190iEL53199409-199608

4.5L:REFER TO ILLUSTRATION

main85310-20210iEL53..USA199409-199608

main85330-10280iEL53..USA199608

main85330-33020iEL53199608

4.5L:REFER TO ILLUSTRATION

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070iEL53..USA199508

main85315-16110iEL53..DX199409-199508

4.5L:REFER TO ILLUSTRATION

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEL53199409

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iEL53199409-199608

main85316-33050iEL53199608

85333FILTER, WINDSHIELD WASHER JAR

main85312-16010iEL53199409-199411

main85333-12470iEL53199411

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85334-22480iEL53199409

4.5L:REFER TO ILLUSTRATION

main85349-89122iEL53..USA199409

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85334-22470iEL53199409

4.5L:REFER TO ILLUSTRATION

main85349-89122iEL53..USA199409

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85348-14390iEL53199409

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iEL53199409

L=1100(*H,L=380),4.5L:REFER TO ILLUSTRATION

main90099-33080iEL53..USA199409

L=1450(*H,L=380)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iEL53199409

L=1100(*H,L=600),4.5L:REFER TO ILLUSTRATION

main90446-07001iEL53..USA199409

L=1800(*H,L=600)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iEL53199409

L=1450(*H,L=570)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iEL53199409-199412

L=1450(*H,L=550),4.5L:REFER TO ILLUSTRATION

main90099-33299iEL53..USA199409-199412

L=1000(*H,L=550)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iEL53199409

L=1450(*H,L=40),4.5L:REFER TO ILLUSTRATION

main90099-33299iEL53..USA199409

L=1000(*H,L=40)

1658111020CLAMP, HOSE(FOR WATER HOSE)

main16581-11020

9011906419

main90119-06419

16 parts on this diagram · 1 diagram in section
