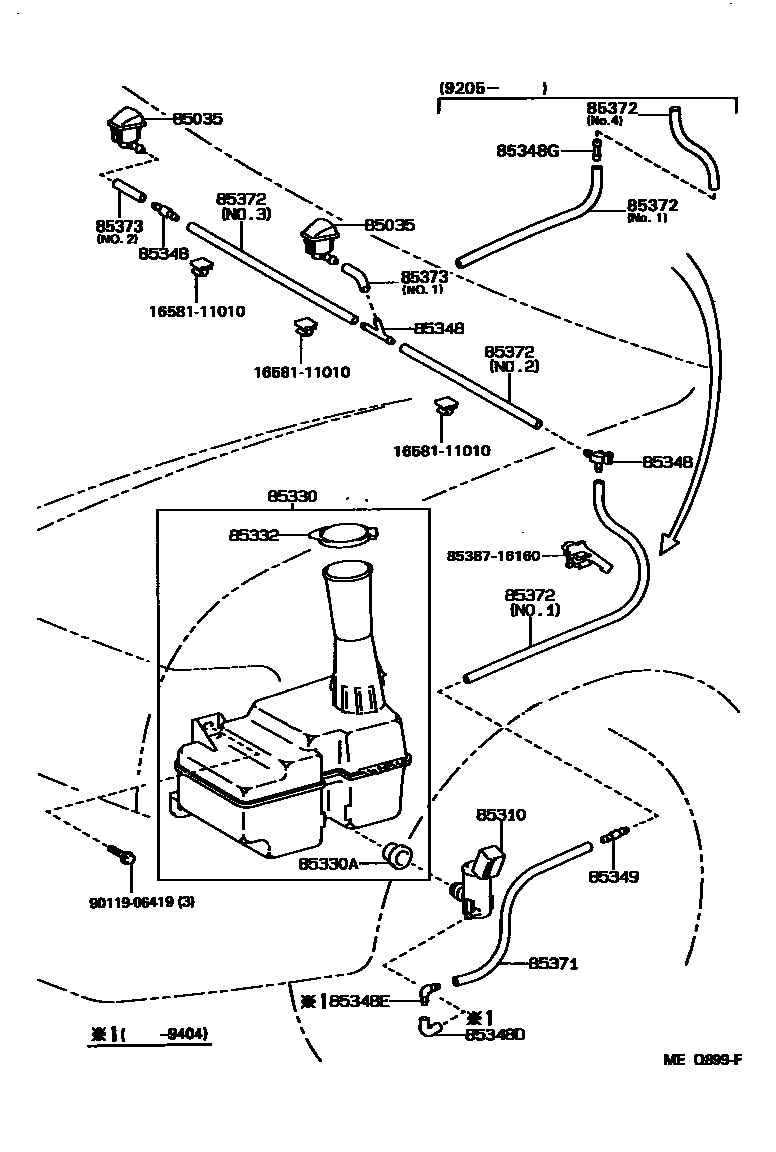

Toyota TERCEL — WINDSHIELD WASHER

0001 1 0003 1

85035NOZZLE SUB-ASSY, WASHER

main85381-16020×2iEL42199009-199409

sub85381-30020

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20190iEL42..CND199208-199409

COLD SPEC

sub85330-33020

main85310-20210iEL42..4DS..CND199208-199409

CHILE SPEC

sub85330-10280

main85330-16170iEL42..CND199009-199208

COLD SPEC

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070iEL42..USA;EL42..STD..CND199208-199409

CHILE SPEC

main85315-16110iEL42..(DLX,LE)..CND199009-199409

COLD SPEC

main85315-16140iEL42..STD..CND199009-199208

COLD SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEL42..USA199009-199208

main90099-32103iEL42..CND199009-199208

COLD SPEC

85332CAP, WINDSHIELD WASHER JAR

main85316-10190iEL42199009-199309

main85316-16070iEL42199309-199409

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390iEL42199009-199409

3 WAY

main85375-10260iEL42..USA199009-199409

2 WAY

main85375-16160iEL42199009-199409

L JOINT

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iEL42..4DS..CND199208-199404

CHILE SPEC

main85355-32110iEL42..CND199009-199404

COLD SPEC

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14040iEL42..CND199009-199404

COLD SPEC

main85355-20200iEL42..USA199009-199404

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-50040iEL42..USA199205-199409

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iEL42..CND199009-199409

TO NOZZLE

main85334-22480iEL42..CND199009-199409

COLD SPEC,TO JAR

main85349-89122iEL42..USA199009-199409

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iEL42..(DLX,LE)..CND199203-199404

L=1100

main90099-33080iEL42..USA199404-199409

L=1450,CHILE SPEC

main90099-33090iEL42..STD..CND199009-199404

L=300,COLD SPEC

main90099-33299iEL42..USA199009-199208

L=1000

main90099-33334iEL42..(DLX,LE)..CND199104-199203

L=2000,COLD SPEC

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33071iEL42..CND199009-199409

L=1100(*H,L=600),COLD SPEC,NO.1

main90099-33080iEL42..CND199208-199409

L=1450,NO.2

main90446-06013iEL42..USA199009-199409

L=1000,NO.3,NO.2

main90446-07001iEL42..4DS..CND199208-199409

L=1800,CHILE SPEC,NO.1

main90446-07012iEL42..USA199009-199205

L=1800(*H,L=900),NO.1

sub90099-33368

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEL42..CND199009-199409

L=1450,COLD SPEC,NO.1

main90099-33299iEL42..CND199009-199409

L=1000,COLD SPEC,NO.2

1658111010CLAMP, HOSE(FOR WATER HOSE)

main16581-11010

8538716160CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-16160

9011906419

main90119-06419

16 parts on this diagram · 2 diagrams in section
