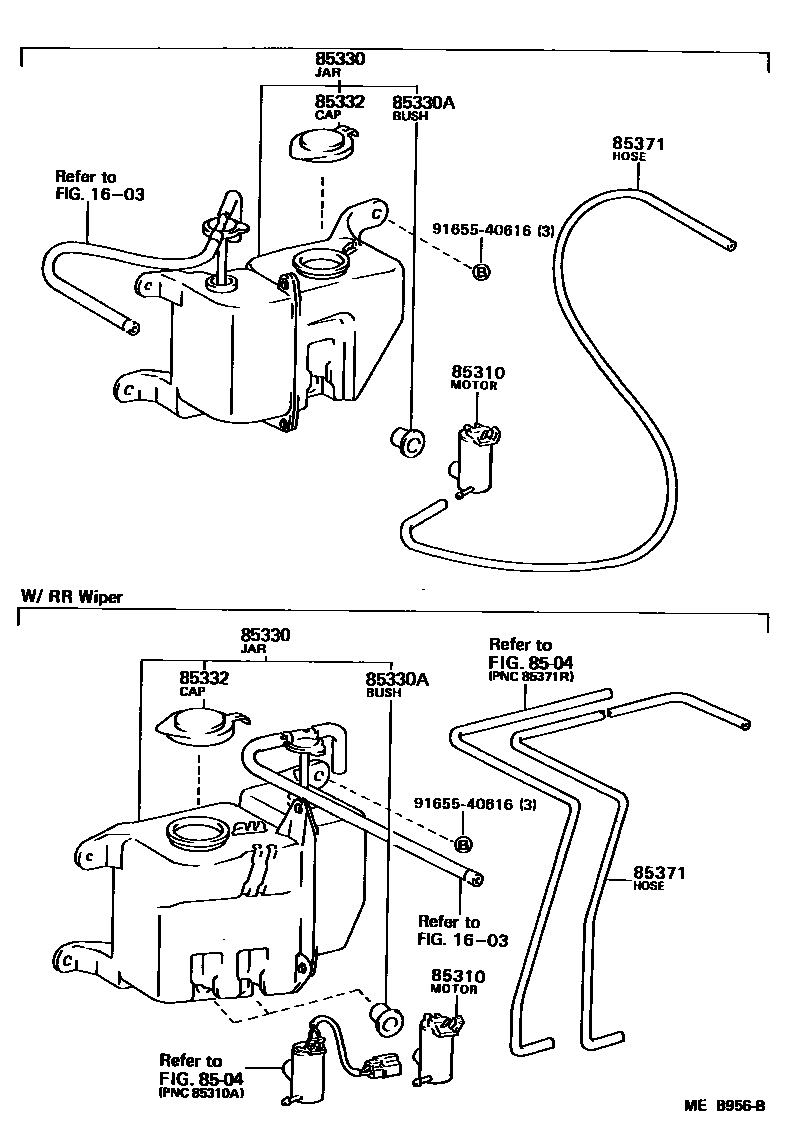

Toyota TERCEL — WINDSHIELD WASHER

0001 1 0002 1 0003 1

1603

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10140iAL2#198208-198308

sub85310-89105

main85310-12130iAL21..3A;AL2#..WG..CND198408-198801

COLD SPEC

sub85330-12310

main85310-20130iAL2#..(3FC,5F,6F)..USA198308-198408

COLD SPEC

85330JAR ASSY, WINDSHIELD WASHER

main85330-16100iAL2#..USA;AL21..STD..CND..3AC198208-198801

main85330-16130iAL2#..USA;AL21..STD..CND..3AC198208-198408

W/RR WIPER

main85330-16150iAL21..3A;AL25..CND198208-198308

COLD SPEC

main85330-16160iAL21..3A;AL25..CND198208-198308

COLD SPEC & W/RR WIPER

main85331-16161iAL2#..USA;AL21..STD..CND..3AC198408-198801

W/RR WIPER

main85331-16191iAL21..3A;AL2#..WG..CND198308-198408

COLD SPEC

main85331-16192iAL2#..(3FC,5F,6F)..USA198408-198801

COLD SPEC

main85331-16211iAL21..3A;AL2#..WG..CND198308-198408

COLD SPEC & W/RR WIPER

main85331-16212iAL2#..(3FC,5F,6F)..USA198408-198801

COLD SPEC & W/RR WIPER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iAL2#..USA;AL21..STD..CND..3AC198308-198801

NO.2,W/RR WIPER

main90099-32103iAL2#..(3FC,5F,6F)..USA198308-198801

NO.1;NO.1,W/RR WIPER

85332CAP, WINDSHIELD WASHER JAR

main85332-12320iAL2#..(3FC,5F,6F)..USA198308-198801

W/RR WIPER

main85332-16010iAL2#..USA;AL21..STD..CND..3AC198208-198801

main85332-20060iAL2#..(3FC,5F,6F)..USA198208-198308

W/RR WIPER

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33060iAL2#..(3FC,5F,6F)..USA198408-198801

L=1000(*H,L=400)

main90099-33299iAL2#..(3FC,5F,6F)..USA198308-198408

L=400,COLD SPEC

9165540616

main91655-40616

8 parts on this diagram · 3 diagrams in section
