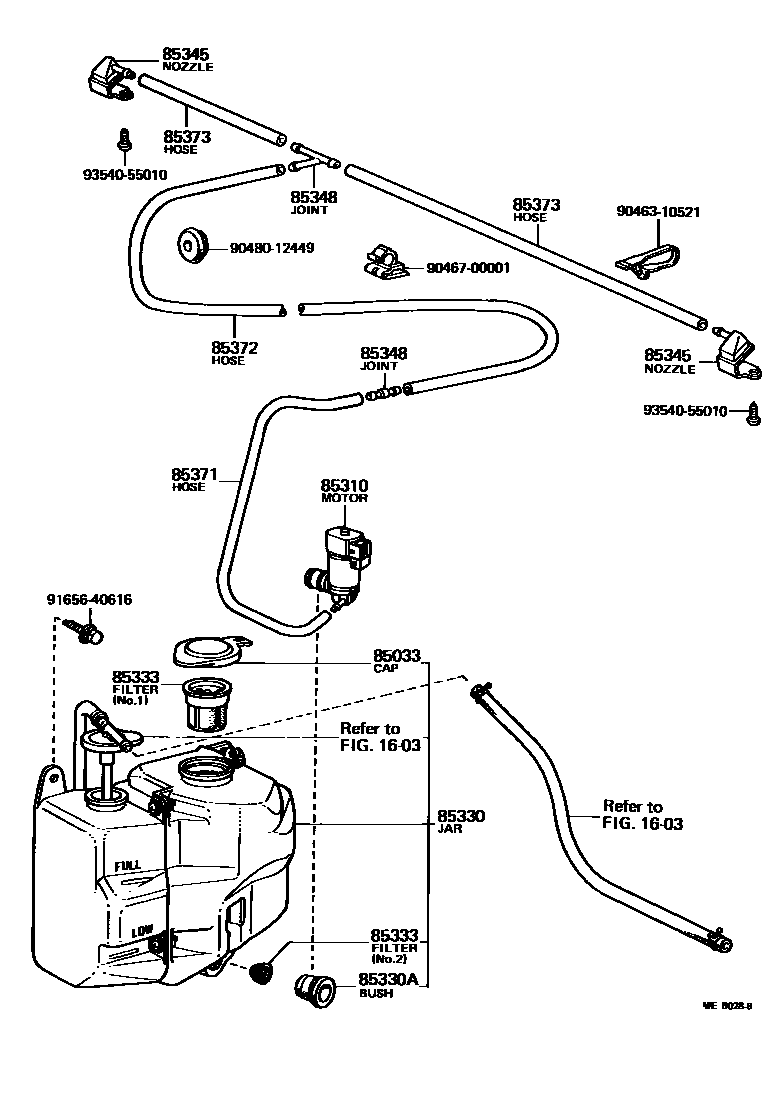

Toyota TERCEL — WINDSHIELD WASHER

1603

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iAL10197908-198008

main85332-20060iAL12..3DS,4DS197908-198207

COLD SPEC

sub85332-12320

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12120iAL10197908-198008

sub85310-89105

main85310-20130iAL12..3DS,4DS198008-198207

COLD SPEC

sub85310-12130

85330JAR ASSY, WINDSHIELD WASHER

main85330-16022iAL10197908-198008

main85330-16040iAL12;AL10..USA197908-198008

COLD SPEC

main85330-16060iAL12..USA;AL12..3AC198008-198207

main85330-16070iAL12..3DS,4DS198008-198207

COLD SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAL10197908-198008

main90099-32103iAL12..3DS,4DS197908-198207

COLD SPEC

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iAL12..3DS,4DS198008-198207

NO.1,COLD SPEC

main85333-20020iAL12..3DS,4DS198008-198207

NO.2,COLD SPEC

85345NOZZLE, WINDSHIELD WASHER

main85345-16010iAL1#197908-198201

RH

main85345-16020iAL12;AL10..USA197908-198008

RH,COLD SPEC

main85345-16030iAL12..USA198201-198207

RH,COLD SPEC

main85346-16010iAL12..USA;AL12..3AC198201-198207

LH

main85346-16020iAL12..USA198201-198207

LH,COLD SPEC

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-40010iAL12..3DS,4DS197908-198201

3WAY,COLD SPEC

main85348-89101iAL12..3DS,4DS198201-198207

3WAY,COLD SPEC

main85349-20010iAL12..3DS,4DS197908-198207

2WAY,COLD SPEC

sub85334-22480

main85355-14010iAL12..USA;AL12..3AC198008-198207

3WAY

sub85348-12250

main85355-87201iAL1#..USA;AL12..3AC197908-198207

2 WAY

sub85349-89122

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33330iAL12..3DS,4DS197908-198207

L=2000(*H,L=400),COLD SPEC

main90446-06286iAL10197908-198008

L=1000(*H,L=400)

sub90446-06013

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33315iAL10197908-198008

L=1450(*H,L=900)

main90099-33332iAL12..3DS,4DS198201-198207

*H,L=900,COLD SPEC

sub90099-33334

main90099-33355iAL12..3DS,4DS197908-198201

L=900,COLD SPEC

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33248iAL12..USA;AL12..3AC198008-198207

L=1000(*H,L=80)

main90099-33332iAL12..3DS,4DS198201-198207

*H,L=400,COLD SPEC;*H,L=80,COLD SPEC

sub90099-33334

main90099-33354iAL12..3DS,4DS197908-198201

L=1000(*H,L=80),COLD SPEC

sub90099-33299

main90445-07063iAL10..USA197908-198008

L=1000(*H,L=400),COLD SPEC

sub90099-33299

main90446-06286iAL12..USA;AL12..3AC198008-198207

L=1000(*H,L=400)

sub90446-06013

9046310521

main90463-10521

9046700001

main90467-00001

9048012449

main90480-12449

9165640616

main91656-40616

9354055010

main93540-55010

16 parts on this diagram · 1 diagram in section
