Toyota TERCEL — WATER PUMP

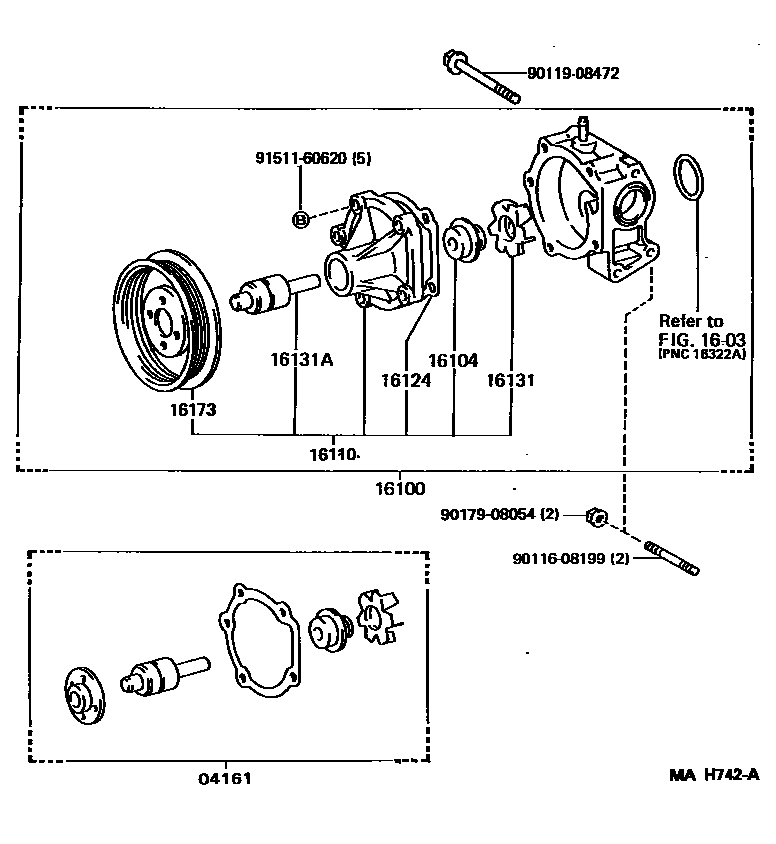

Parts diagram

04161PUMP KIT, WATER

main04161-10022i199409-199611

main04161-10023i199611

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19226i199409

16104SEAL SET, WATER PUMP

main16104-16040i199409-199505

main16104-46060i199611

main16104-74010i199505-199611

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19106i199409-199611

main16110-19107i199611

16124GASKET, WATER PUMP COVER

main16124-10013i199409

16131ROTOR, WATER PUMP

main16131-10013i199611

main16131-15080i199409-199611

16131ABEARING, WATER PUMP

main90029-36809i199409-199611

main90029-36850i199611

16173PULLEY, WATER PUMP

main16173-10013i199409

9011608199

main90116-08199

9011908472

main90119-08472

9017908054

main90179-08054

9151160620

main91511-60620

13 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota TERCEL

This section contains 13 genuine Toyota parts for the WATER PUMP system of the Toyota TERCEL. Key components include: PUMP KIT, WATER, RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, SEAL SET, WATER PUMP, PUMP ASSY, WATER, W/O COUPLING.
