Toyota TERCEL — WATER PUMP

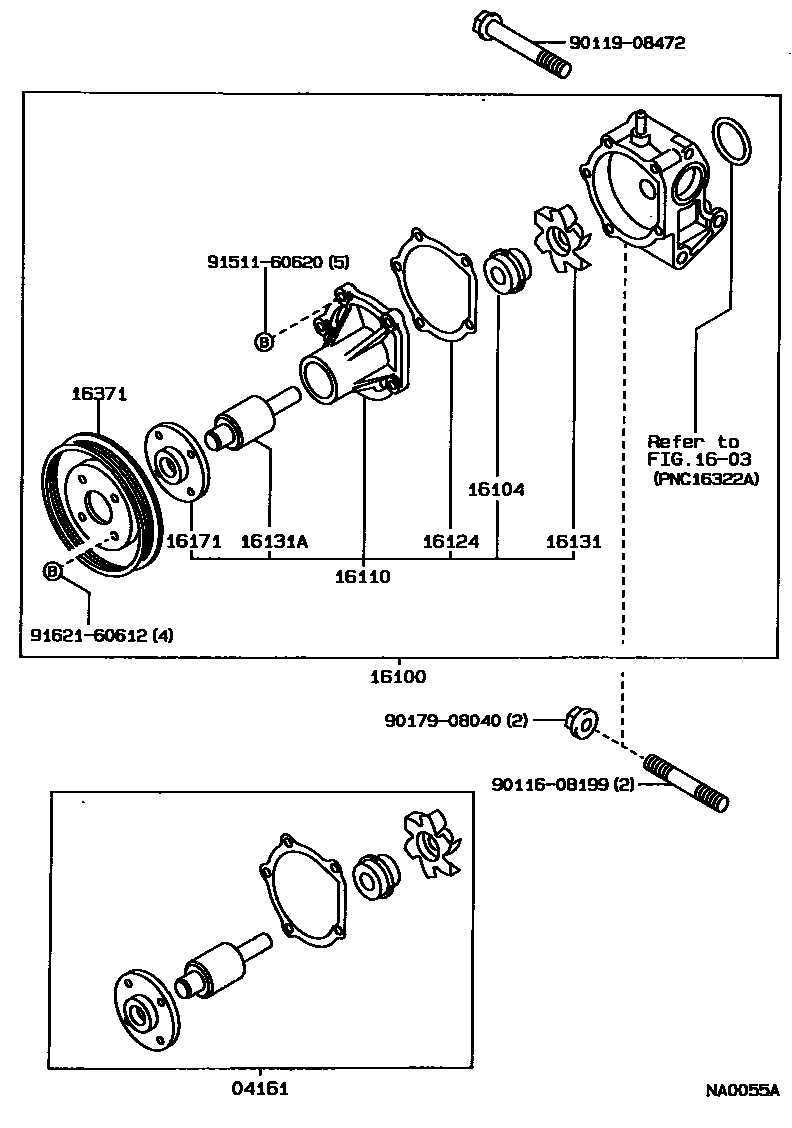

Parts diagram

04161PUMP KIT, WATER

main04161-10020i199002-199009

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19126i198908-198912

main16100-19195i198808-199009

main16100-19225i198912-199009

16104SEAL SET, WATER PUMP

main16104-15020i198808-198810

main16104-70010i198810-198810

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19105i199002-199009

16124GASKET, WATER PUMP COVER

main16124-10012i198912-199009

16131ROTOR, WATER PUMP

main16131-15080i198808-198906

16131ABEARING, WATER PUMP

main90369-30064i198808-199009

16171SEAT, WATER PUMP PULLEY

main16171-10012i198912-199009

main16171-15050i198912-199009

16371PULLEY, FAN

main16173-10011i198808-198912

main16173-10012i198912-199009

9011608199

main90116-08199

9011908472

main90119-08472

9017908040

main90179-08040

9151160620

main91511-60620

9162160612

main91621-60612

15 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota TERCEL

This section contains 15 genuine Toyota parts for the WATER PUMP system of the Toyota TERCEL. Key components include: PUMP KIT, WATER, RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, SEAL SET, WATER PUMP, PUMP ASSY, WATER, W/O COUPLING.
