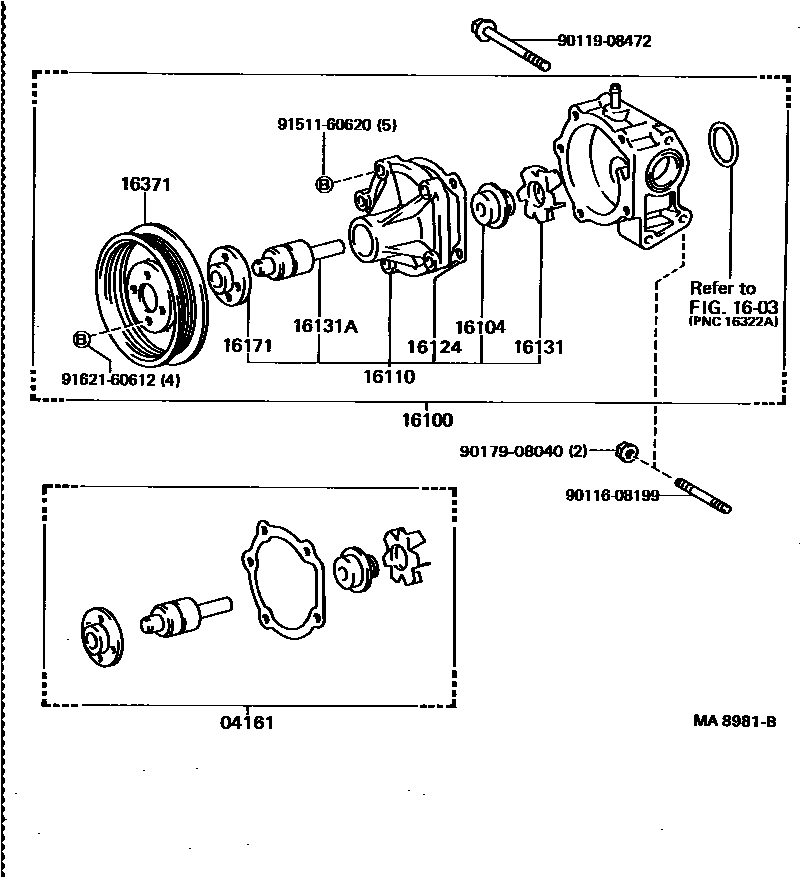

Toyota TERCEL — WATER PUMP

04161PUMP KIT, WATER

main04161-10010i198608-198808

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19195i198608-198808

16104SEAL SET, WATER PUMP

main16104-15020i198608-198808

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19065i198608-198808

16124GASKET, WATER PUMP COVER

main16124-10010i198608-198808

16131ROTOR, WATER PUMP

main16131-15050i198608-198712

main16131-15080i198712-198808

16131ABEARING, WATER PUMP

main90369-30064i198608-198808

16171SEAT, WATER PUMP PULLEY

main16171-15050i198608-198808

16371PULLEY, FAN

main16173-10011i198608-198808

9011608199

main90116-08199

9011908472

main90119-08472

9017908040

main90179-08040

9151160620

main91511-60620

9162160612

main91621-60612

15 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota TERCEL

This section contains 15 genuine Toyota parts for the WATER PUMP system of the Toyota TERCEL. Key components include: PUMP KIT, WATER, RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, SEAL SET, WATER PUMP, PUMP ASSY, WATER, W/O COUPLING.
