E
EPC Data

Toyota TERCEL — V-BELT

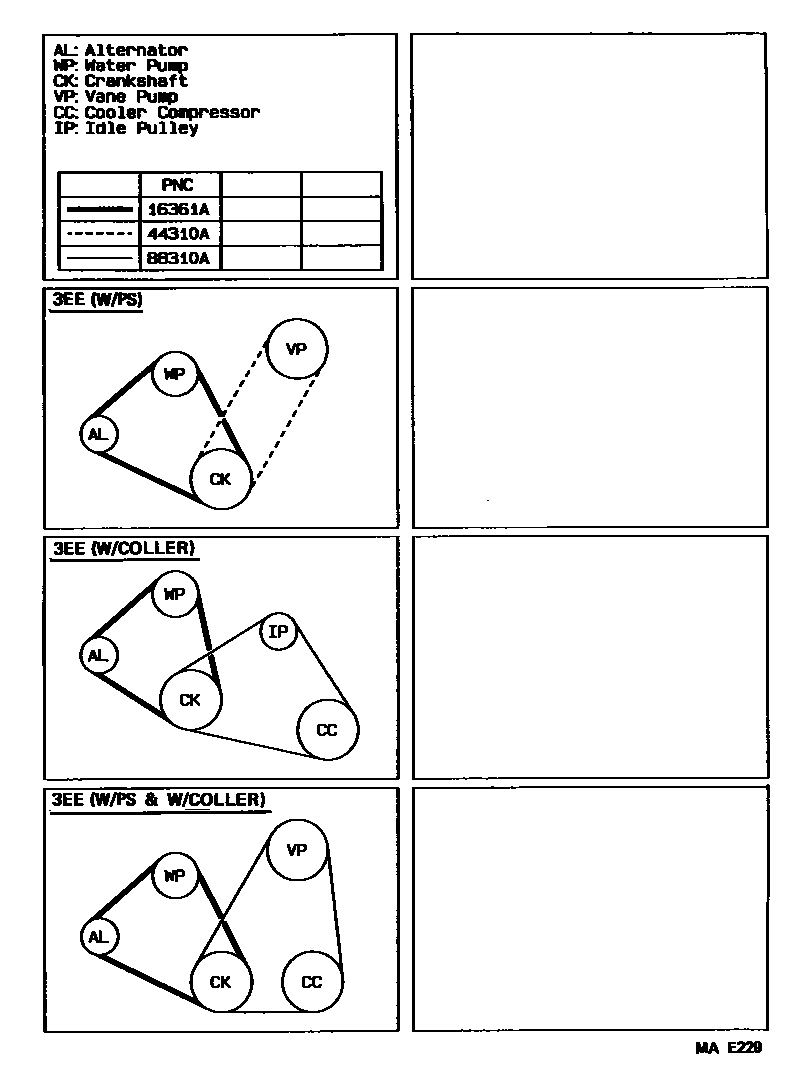

Parts diagram
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02332i199009-199208
main90916-02341i199009-199208
COLD SPEC
main90916-02341i199208-199409
44310ABELT, V(FOR VANE PUMP)
main99364-00930i199009-199409
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main99364-00910i199009-199105
main99364-00910i199009-199308
MITSUBOSHI
main99364-01090i199009-199105
PUERTORICO SPEC & W(POWER STEERING)
main99364-01100i199009-199104
W(POWER STEERING)
main99364-01100i199104-199308
W(POWER STEERING),MITSUBOSHI
main99364-20880i199105-199308
L=880,PUERTORICO SPEC,MITSUBOSHI
main99364-20900i199308-199409
L=900,PUERTORICO SPEC,MITSUBOSHI
main99364-21090i199105-199409
L=1090,PUERTORICO SPEC & W(POWER STEERING),MITSUBOSHI
main99364-21110i199308-199409
L=1110,W(POWER STEERING) OR COLD SPEC
main99364-21110i199308-199409
L=1110,W(POWER STEERING)
main99364-21110i199308-199409
L=1110,W(POWER STEERING) OR CHILE SPEC
main99364-50880i199009-199105
PUERTORICO SPEC
main99364-70880i199105-199308
L=880,PUERTORICO SPEC,BANDO
main99364-70910i199208-199308
L=910,W(AIR CONDITIONER)
main99364-70910i199105-199409
L=910,BANDO
main99364-70910i199104-199208
L=910
main99364-71090i199105-199308
PUERTORICO SPEC & W(POWER STEERING),BANDO
main99364-71100i199104-199308
L=1110,W(POWER STEERING)
main99364-71100i199105-199308
L=1110,W(POWER STEERING),BANDO
main99364-80900i199308-199409
PUERTORICO SPEC,BANDO
main99364-80910i199308-199409
L=910,W(*66),BANDO
main99364-80910i199308-199409
L=910,BANDO
main99364-80910i199308-199409
L=910
main99364-81090i199308-199409
PUERTORICO SPEC & W(POWER STEERING),BANDO

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota TERCEL

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota TERCEL. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
