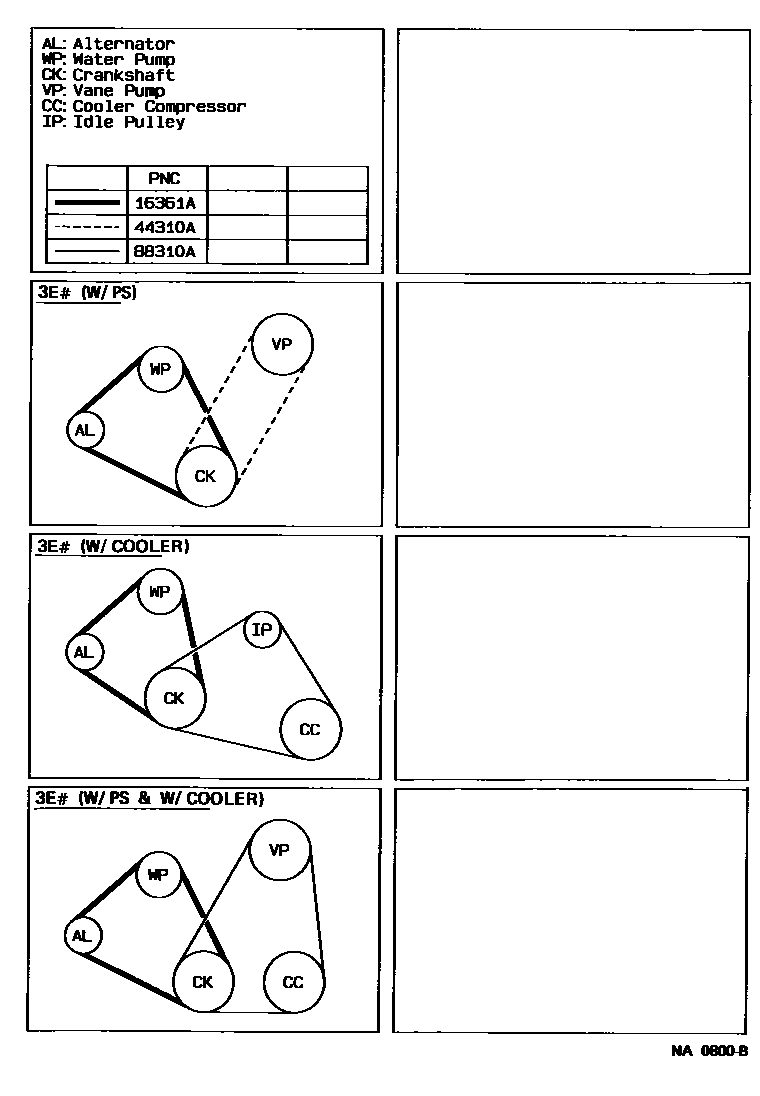

Toyota TERCEL — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02135i198808-199007

main90916-02332i199007-199009

44310ABELT, V(FOR VANE PUMP)

main99365-00930i198808-199009

main99365-50940i198908-199009

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99365-50910i198808-199009

L=910

main99365-51110i198808-199009

W(POWER STEERING)

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota TERCEL

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota TERCEL. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
