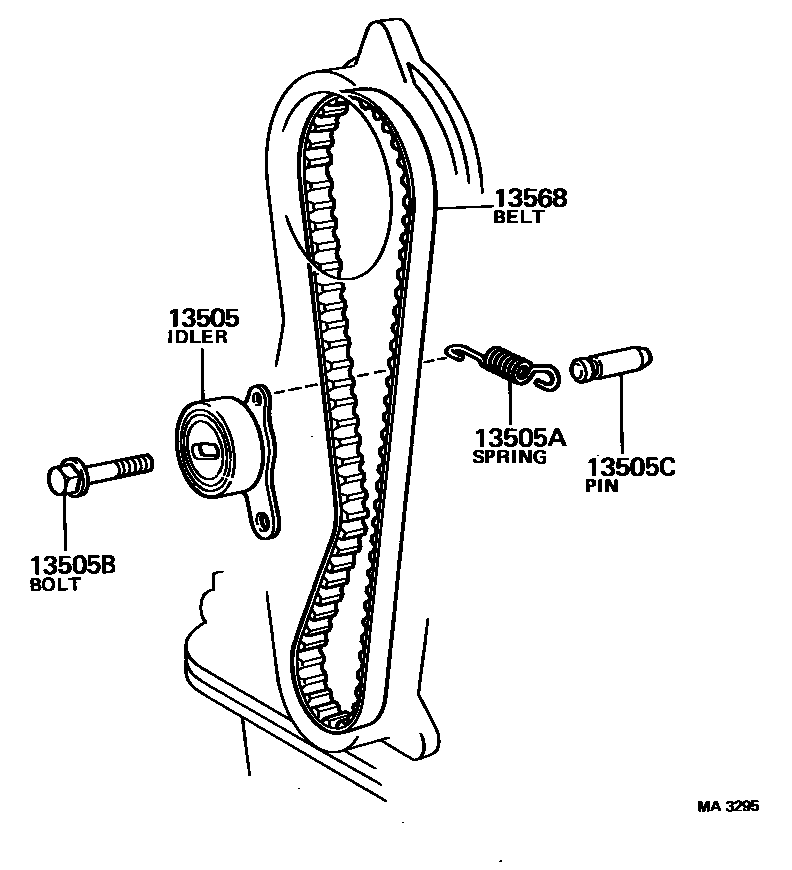

Toyota TERCEL — TIMING BELT
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13505BBOLT, FLANGE (FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13568BELT, TIMING
5 parts on this diagram · 1 diagram in section
TIMING BELT for Toyota TERCEL
This section contains 5 genuine Toyota parts for the TIMING BELT system of the Toyota TERCEL. Key components include: IDLER SUB-ASSY, TIMING BELT, NO.1, SPRING, TENSION(FOR IDLER), BOLT, FLANGE (FOR IDLER), PIN(FOR IDLER SPRING TENSION), BELT, TIMING.
