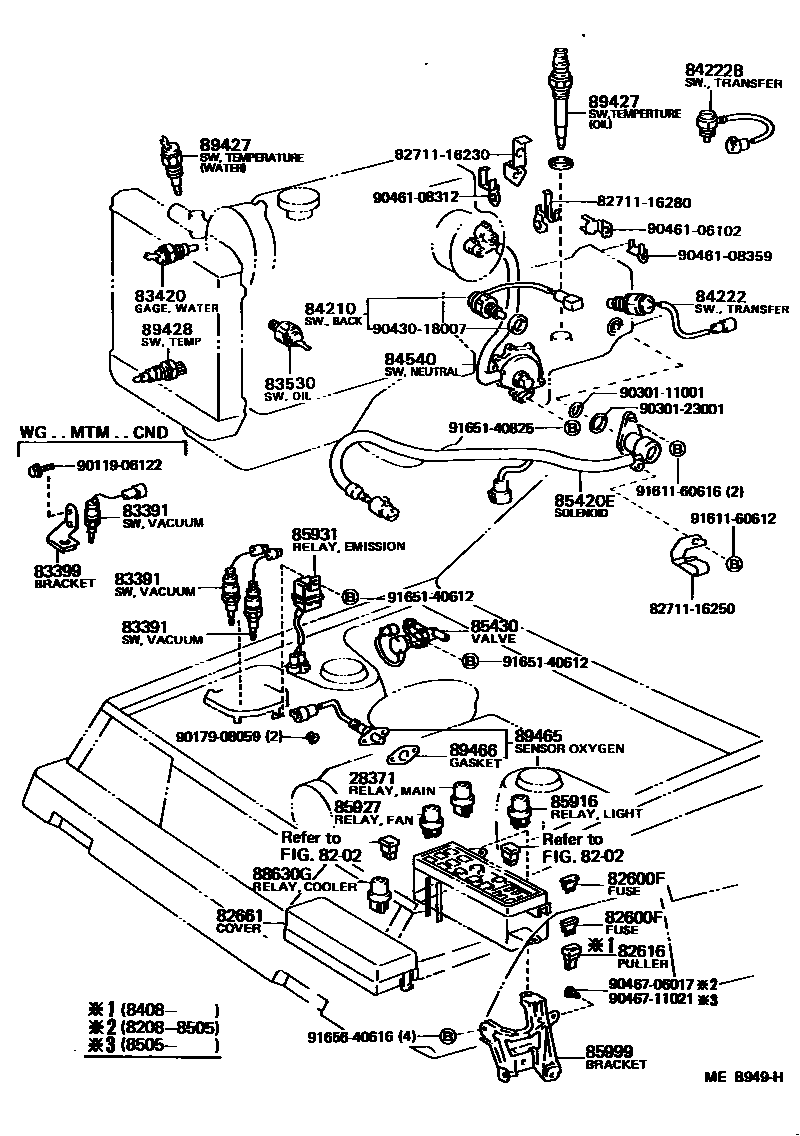

Toyota TERCEL — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28371RELAY, IGNITION, NO.1

main90987-02002i3A#..AL2#198208-198408

main90987-02004i3A#..AL2#198408-198801

8202

82600FFUSE, FUSE BLOCK

main90982-09002iAL2#198208-198801

10A,10A

main90982-09003×9iAL2#198208-198801

15A,15A

main90982-09004×2iAL2#198208-198801

20A,YELLOW,20A

main90982-09005×7iAL2#198208-198801

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iAL2#198208-198801

82661COVER, RELAY BLOCK, NO.1

main82661-16070iAL2#198208-198408

main82661-16110iAL2#198408-198801

83391SWITCH, VACUUM

main83391-16040iAL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC198208-198708

MARK=80M

main83391-16060iAL25198708-198801

MARK=200B

83399BRACKET, VACUUM SWITCH

main83399-22011iAL2#..WG..MTM..CND198208-198708

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAL2#198208-198308

main83420-20020iAL2#198308-198801

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iAL2#198208-198502

main83530-14040iAL2#198502-198511

main83530-30050iAL25198709-198801

sub83530-30051

main83530-30080iAL2#198511-198709

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-16021iAL2#..MTM198208-198408

main84210-16030iAL2#..MTM198408-198801

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-16010iAL25..6F198208-198801

4WD

sub84222-35020

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-16020iAL25..6F198408-198801

EL

84540SWITCH ASSY, NEUTRAL START

main84540-16020iAL2#..3FC198208-198801

85420ESOLENOID ASSY, TRANSMISSION

main85420-16010iAL25..3FC198402-198801

85430VALVE, OUTER VENT CONTROL

main85430-16011iAL2#..USA198208-198801

85916RELAY, LIGHT CONTROL

main90987-01003×2iAL2#198208-198408

main90987-02002iAL2#198408-198801

TAIL LAMP

main90987-02006iAL2#198408-198801

HEADLAMP

85927RELAY, COOLING FAN

main90987-03001iAL2#198208-198801

85931RELAY, EMISSION CONTROL

main85931-16010iAL25198708-198801

85999BRACKET, COMBINATION RELAY

main85999-16030iAL2#198208-198801

88630GRELAY ASSY, COOLER

main90987-01003iAL2#..(3FC,5F,6F)..USA198208-198408

main90987-02004iAL2#..(3FC,5F,6F)..USA198408-198801

89427SWITCH, TEMPERATURE DETECT

main89427-12060iAL25..3FC198402-198801

WATER TEMPERATURE SWITCH

main89427-16020iAL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC198208-198708

main89428-16010iAL25..3FC198402-198801

OIL TEMPERATURE SWITCH

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15030iAL2#198208-198708

89465SENSOR, OXYGEN

main89465-29075iAL25198708-198801

sub89465-29076

89466GASKET, OXYGEN SENSOR

main89466-30010iAL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC198208-198708

sub89466-20020

8271116230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16230

8271116250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16250

8271116280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16280

9011906122

main90119-06122

9017908059

main90179-08059

9030111001

main90301-11001

9030123001

main90301-23001

9043018007

main90430-18007

9046106102

main90461-06102

9046108312

main90461-08312

9046108359

main90461-08359

9046706017

main90467-06017

9046711021

main90467-11021

9161160612

main91611-60612

9161160616

main91611-60616

9165140612

main91651-40612

9165140825

main91651-40825

9165640616

main91656-40616

42 parts on this diagram · 4 diagrams in section
