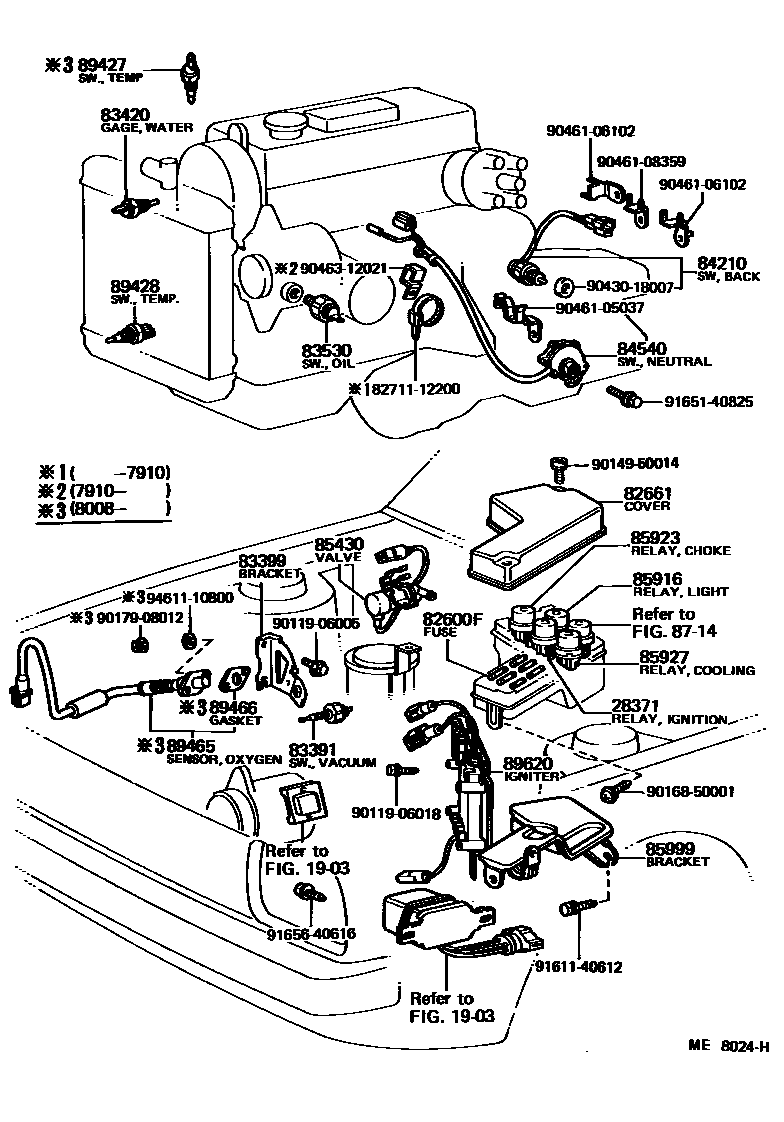

Toyota TERCEL — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

1903

28371RELAY, IGNITION, NO.1

main90987-02001i1AC,3A..AL1#197908-198007

sub90999-99089

main90987-02004i3A#..AL12;1AC..AL10..USA198007-198207

82600FFUSE, FUSE BLOCK

main90982-07010iAL12198008-198207

7.5A

main99118-62005×5iAL1#197908-198207

5A

main99118-62910×8iAL1#197908-198207

10A

main99118-62915×2iAL1#197908-198207

15A,15A

main99118-62920×3iAL1#197908-198207

20A,20A

82661COVER, RELAY BLOCK, NO.1

main82661-16030iAL1#197908-198008

main82661-16040iAL12..USA198008-198207

83391SWITCH, VACUUM

main83391-14010iAL12..USA198008-198207

CALIFORNIA SPEC

main83391-16010iAL10197908-198008

83399BRACKET, VACUUM SWITCH

main83399-16020iAL12..USA;AL12..3AC198108-198207

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAL1#197908-198207

sub83420-20020

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iAL10;AL12..CND;AL12..(3FC,5F)..USA197908-198207

DENSO

sub83530-14030

main83530-30042iAL12..4F..USA198008-198207

sub83530-30050

main83530-36011iAL10;AL12..CND;AL12..(3FC,5F)..USA197908-198207

YAZAKI

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-16020iAL1#..MTM197908-198008

main84210-16021iAL12..MTM198008-198207

84540SWITCH ASSY, NEUTRAL START

main84540-16010iAL1#..3FC197908-198008

main84540-16011iAL12..3FC198008-198207

85430VALVE, OUTER VENT CONTROL

main85430-16010iAL10197908-198008

main85430-16011iAL12..USA;AL12..3AC198008-198207

85916RELAY, LIGHT CONTROL

main90987-01001×2iAL1#197908-198007

sub90999-99088

main90987-01003×2iAL12;AL10..USA198007-198207

85923RELAY, CHOKE CONTROL

main85925-12010iAL1#197908-198008

12V 55A,W/IC REGULATOR

main90987-02001iAL10..USA197908-198008

12V 50A

sub90999-99089

85927RELAY, COOLING FAN

main90987-03001iAL1#197908-198207

85999BRACKET, COMBINATION RELAY

main85999-16010iAL1#197908-198207

8714

89427SWITCH, TEMPERATURE DETECT

main89427-16010iAL12..USA198008-198207

CALIFORNIA SPEC

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15010iAL1#197908-198008

1POLE

main89428-15011iAL12..USA198008-198207

sub89428-32010

main89428-15030iAL12..MTM..CND198003-198207

2POLE

main89428-15040iAL12..3FC..3A198008-198207

89465SENSOR, OXYGEN

main89465-29045iAL12..USA198008-198207

CALIFORNIA SPEC

89466GASKET, OXYGEN SENSOR

main89466-30010iAL12..USA198008-198207

CALIFORNIA SPEC

sub89466-20020

89620IGNITER ASSY

main89620-16030iAL10197908-198008

main89620-16050iAL12..USA;AL12..3AC198008-198207

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906005

main90119-06005

9011906018

main90119-06018

9014950014

main90149-50014

9016850001

main90168-50001

9017908012

main90179-08012

9043018007

main90430-18007

9046105037

main90461-05037

9046106102

main90461-06102

9046108359

main90461-08359

9046312021

main90463-12021

9161140612

main91611-40612

9165140825

main91651-40825

9165640616

main91656-40616

9461110800

main94611-10800

36 parts on this diagram · 4 diagrams in section
