Toyota TERCEL — STEERING WHEEL

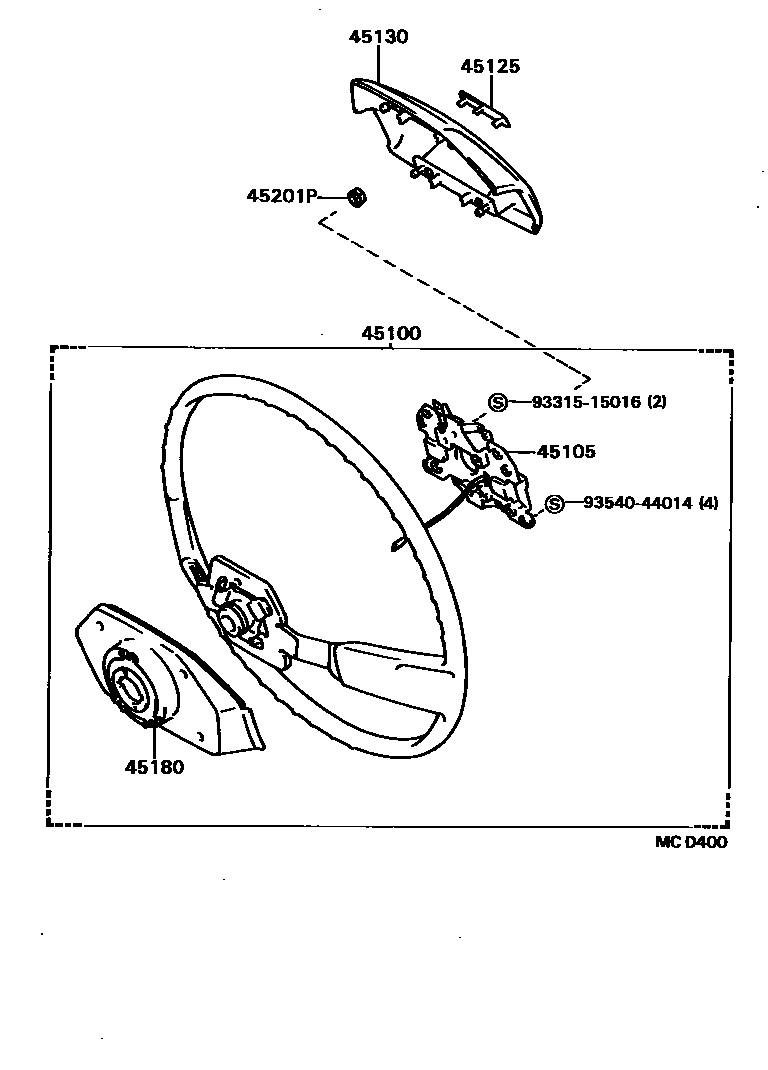

Parts diagram
45100WHEEL ASSY, STEERING
main45100-16131-01i198808-198908
NEW BLACK,TRIM2#
main45100-16131-04i198808-198908
BLUE,TRIM8#
main45100-16131-06i198808-198908
BROWN,TRIM4#
main45100-16132-01i198908-199009
NEW BLACK,TRIM2#
main45100-16132-04i198908-199009
BLUE,TRIM8#
main45100-16132-06i198908-199009
BROWN,TRIM4#
main45100-16161-01i198808-199009
NEW BLACK,TRIM2#
main45100-16161-04i198808-199009
BLUE,TRIM8#
main45100-16161-06i198908-199009
BROWN,TRIM4#
main45100-16171-01i198808-199009
NEW BLACK,TRIM2#
main45100-16171-04i198808-199009
BLUE,TRIM8#
main45100-16171-06i198808-199009
BROWN,TRIM4#
main45100-16231-01i198808-198908
NEW BLACK,NEW BLACK,TRIM2#
main45100-16231-04i198808-198908
BLUE,TRIM8#
main45100-16231-06i198808-198908
BROWN,TRIM4#
main45100-16232-01i198908-199009
NEW BLACK,TRIM2#; URETHANE,NEW BLACK,TRIM2#
main45100-16232-04i198908-199009
BLUE,TRIM8#; URETHANE,BLUE,TRIM8#
main45100-16232-06i198908-199009
BROWN,TRIM4#; URETHANE,BROWN,TRIM4#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-16051i198808-199009
main45105-16080i198808-199009
main45105-16090i198808-199009
main45105-16100i198808-199009
URETHANE
45125MARK, STEERING WHEEL PAD
main45125-16331i198808-199009
45130BUTTON ASSY, HORN
main45130-16140-01i198808-199009
NEW BLACK,TRIM2#
main45130-16140-04i198808-199009
BLUE,TRIM8#
main45130-16140-06i198808-199009
BROWN,TRIM4#
main45130-16170-01i198808-199009
NEW BLACK,TRIM2#
main45130-16170-04i198808-199009
BLUE,TRIM8#
main45130-16170-06i198808-199009
BROWN,TRIM4#
main45130-16181-01i198808-199009
NEW BLACK,TRIM2#,4#,8#
main45130-16181-04i198808-199009
BLUE,TRIM8#
main45130-16181-06i198808-199009
BROWN,TRIM4#
main45130-16200-01i198808-199009
BLACK,TRIM2#; URETHANE,BLACK,TRIM2#
main45130-16200-04i198808-198908
BLUE,TRIM8#
main45130-16200-16i198808-199009
BROWN,TRIM4#; URETHANE,BROWN,TRIM4#
45180COVER SUB-ASSY, STEERING WHEEL
main45180-16020-01i198808-199009
NEW BLACK,TRIM2#
main45180-16020-04i198908-199009
BLUE,TRIM8#
main45180-16020-06i198808-199009
BROWN,TRIM4#
main45180-16040-01i198808-199009
NEW BLACK,TRIM2#
main45180-16040-04i198808-199009
BLUE,TRIM8#
main45180-16040-06i198808-199009
BROWN,TRIM4#
main45180-16050-01i198808-199009
NEW BLACK,TRIM2#
main45180-16050-04i198808-199009
BLUE,TRIM8#
main45180-16050-06i198808-199009
BROWN,TRIM4#
main45180-16100-01i198808-198908
NEW BLACK,TRIM2#
main45180-16100-04i198808-198908
BLUE,TRIM8#
main45180-16100-06i198808-198908
BROWN,TRIM4#
main45180-16101-01i198908-199009
NEW BLACK,TRIM2#
45201PNUT, STEERING WHEEL SET
main90179-12086i198808-199009
9331515016
main93315-15016
9354044014
main93540-44014

8 parts on this diagram · 4 diagrams in section

STEERING WHEEL for Toyota TERCEL

This section contains 29 genuine Toyota parts for the STEERING WHEEL system of the Toyota TERCEL. Key components include: WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, SPACER(FOR HORN BUTTON CONTACT PLATE), PLATE SUB-ASSY, HORN BUTTON STOPPER, MARK, STEERING WHEEL PAD.
