Toyota TERCEL — STEERING COLUMN & SHAFT

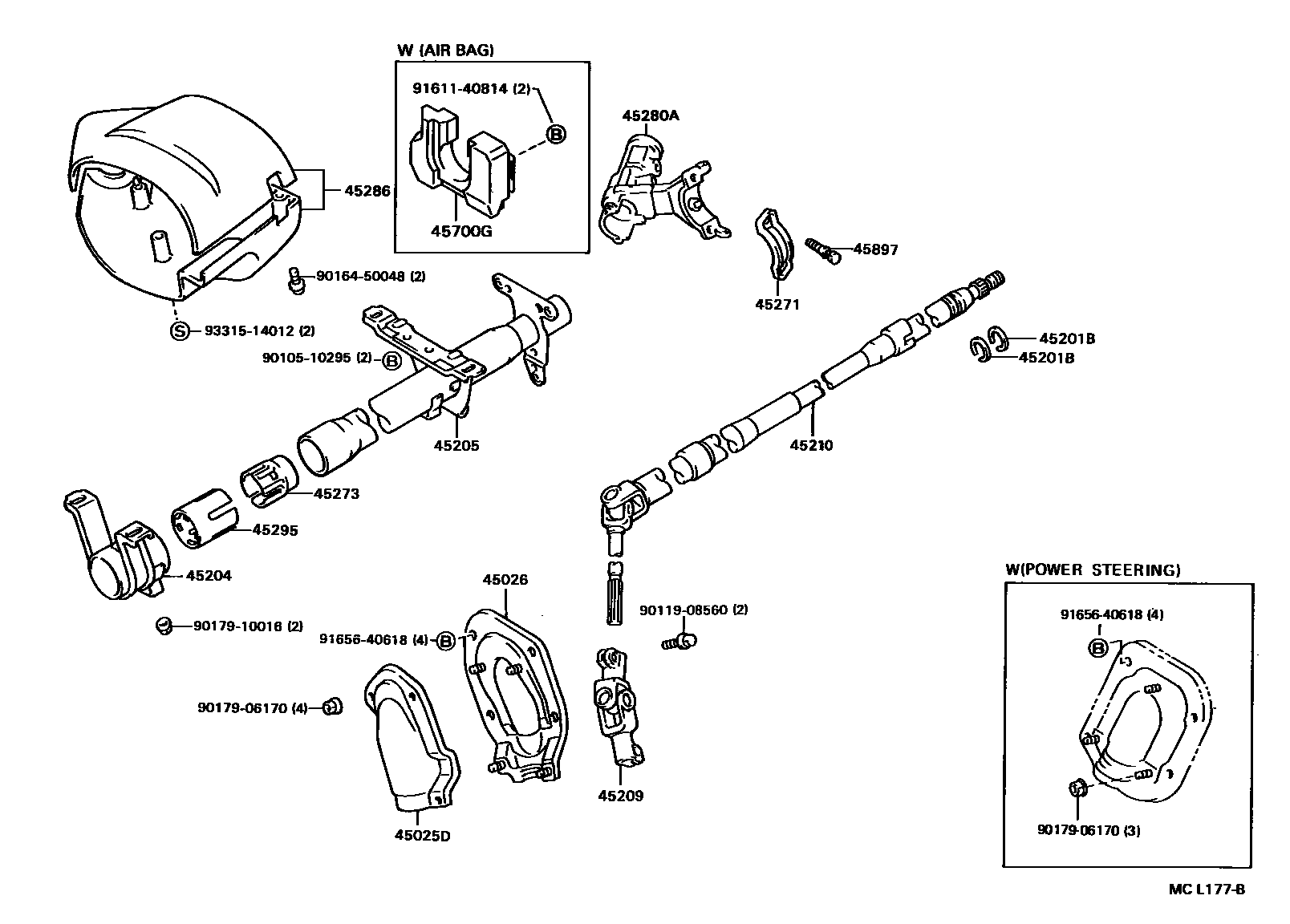

Parts diagram
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-10100i199009-199409
main45025-16110i199009-199409
W(POWER STREEING)
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
main45026-10050i199009-199409
main45026-16050i199009-199409
W(POWER STREEING)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17042×2i199009-199306
T=1.20
main90520-17196×2i199009-199306
T=1.35-1.45
main90520-17269i199306-199409
T=1.20,NO.2
45204TUBE ASSY, STEERING COLUMN, LOWER
main45204-16040i199009-199208
main45204-16050i199208-199409
45205TUBE SUB-ASSY, STEERING COLUMN
main45205-10190i199009-199208
main45205-16070i199208-199409
45209YOKE SUB-ASSY, STEERING SLIDING
main45209-16040i199009-199409
main45209-16051i199009-199409
W(POWER STREEING)
45210SHAFT ASSY, STEERING MAIN
main45210-16120i199009-199208
main45210-16141i199009-199409
W(POWER STREEING)
main45210-16160i199009-199208
45271CLAMP, STEERING COLUMN, UPPER
main45271-16020i199009-199409
45273BUSH, STEERING MAIN SHAFT
main45273-16010i199009-199309
main45273-20030i199309-199409
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-16080i199009-199409
45286COVER, STEERING COLUMN
main45286-16914-02i199009-199208
BLACK,TRIM2#
main45286-16914-04i199009-199208
GRAYISH BLUE,TRIM8#
main45286-16915-01i199009-199208
BLACK,TRIM2#
main45286-16915-04i199009-199208
GRAYISH BLUE,TRIM8#
main45286-16915-22i199208-199409
BLACK,TRIM2#
main45286-16915-W4i199208-199409
EISEN BLUE,TRIM8#
main45286-16922-C0i199208-199409
BLACK,TRIM2#
main45286-16922-J0i199208-199409
EISEN BLUE,TRIM8#
45295BUSH, STEERING COLUMN TUBE
main45295-10010i199009-199409
45700GDAMPER ASSY, STEERING
main45700-16010i199208-199409
45897BOLT, STEERING LOCK SET
main45897-12020×2i199310-199409
main45897-32010×2i199009-199310
9010510295
main90105-10295
9011908560
main90119-08560
9016450048
main90164-50048
9017906170
main90179-06170
9017910016
main90179-10016
9161140814
main91611-40814
9165640618
main91656-40618
9331514012
main93315-14012

22 parts on this diagram · 1 diagram in section

STEERING COLUMN & SHAFT for Toyota TERCEL

This section contains 22 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota TERCEL. Key components include: COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2, RING, SHAFT SNAP(FOR STEERING MAIN SHAFT), TUBE ASSY, STEERING COLUMN, LOWER, TUBE SUB-ASSY, STEERING COLUMN.
