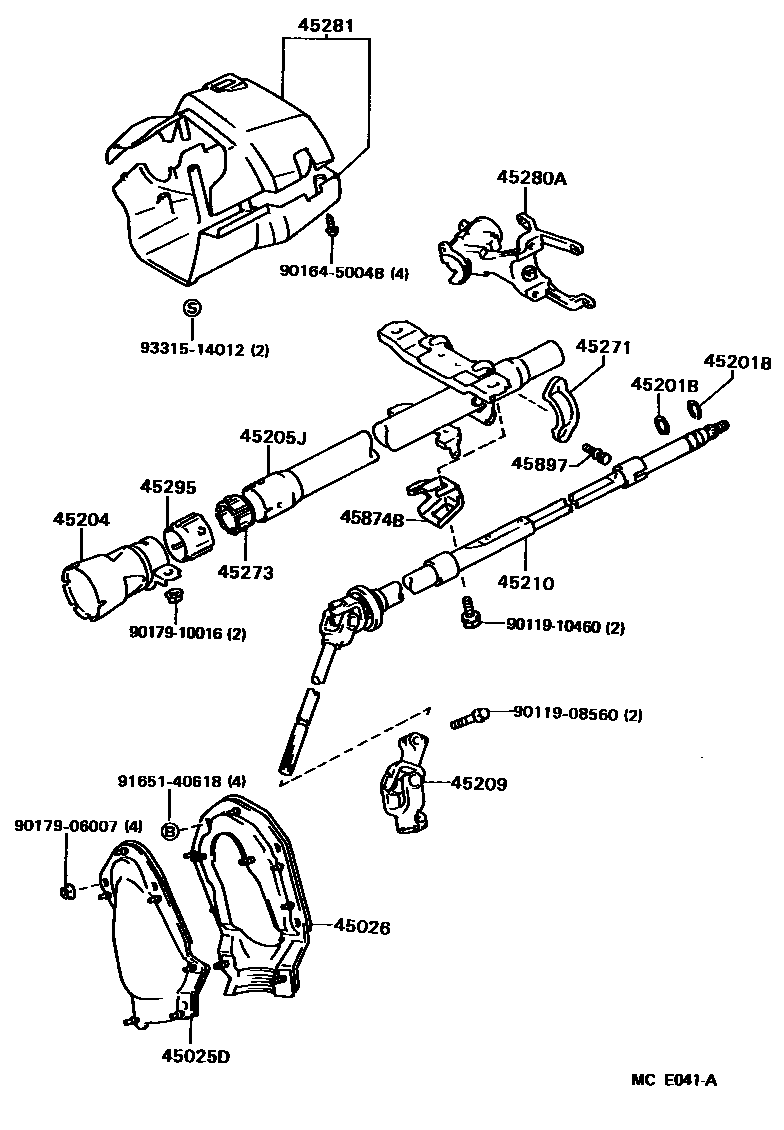

Toyota TERCEL — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
W/POWER STEERING
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
W/POWER STEERING
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45204TUBE ASSY, STEERING COLUMN, LOWER
W/*TIS
W/*TIS & POWER STEERING
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
W/*TIS
45209YOKE SUB-ASSY, STEERING SLIDING
W/POWER STEERING
45210SHAFT ASSY, STEERING MAIN
W/POWER STEERING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
BLACK,NEW BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
BLACK,W/*TIS,NEW BLACK,TRIM2#
BLUE,W/*TIS,BLUE,TRIM8#
BEIGE,W/*TIS,DARK BEIGE,TRIM4#
45295BUSH, STEERING COLUMN TUBE
45874BPROTECTOR, STEERING COLUMN, NO.1
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9011910460
main90119-10460
9016450048
main90164-50048
9017906007
main90179-06007
9017910016
main90179-10016
9165140618
main91651-40618
9331514012
main93315-14012
21 parts on this diagram · 2 diagrams in section
STEERING COLUMN & SHAFT for Toyota TERCEL
This section contains 33 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota TERCEL. Key components include: COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2, SPRING, TORSION(FOR TILT STEERING RETURN), RING, SHAFT SNAP(FOR STEERING MAIN SHAFT), TUBE ASSY, STEERING COLUMN, LOWER.
