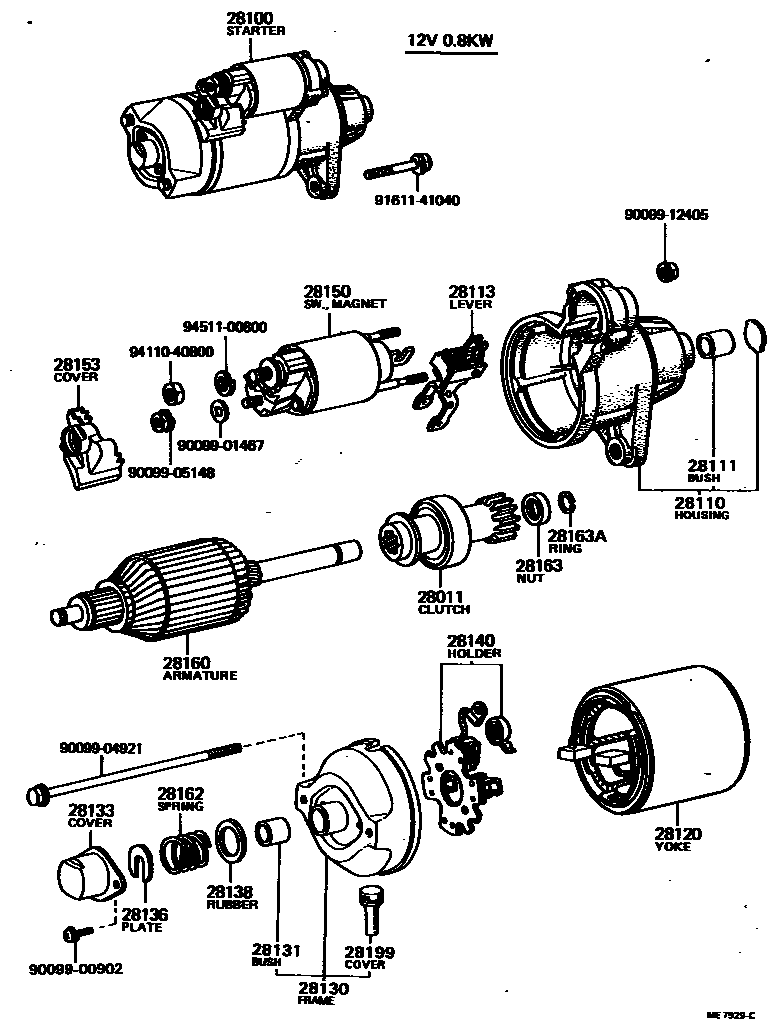

Toyota TERCEL — STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

main28011-26042i1AC,3A#..AL1#197908-198207

12V 0.9KW

28100STARTER ASSY

main28100-15011i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW,12V 0.8KW

main28100-15020i1AC,3A#..AL1#197908-198207

12V 1.0KW,12V 0.9KW

28110HOUSING ASSY, STARTER DRIVE

main28110-15011i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

main28110-15020i1AC,3A#..AL1#197908-198207

12V 0.9KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

main28120-26070i1AC,3A#..AL1#197908-198207

12V 0.9KW

sub28120-26071

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

main28130-15020i1AC,3A#..AL1#197908-198207

12V 0.9KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

main28140-26070i1AC,3A#..AL1#197908-198207

12V 0.9KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i1AC,3AC..AL1#..USA197908-198009

12V 0.8KW

sub28150-37010

main28150-15012i3AC..AL12..USA198009-198207

12V 0.8KW

sub28150-37010

main28150-15020i1AC,3A#..AL1#197908-198207

12V 0.9KW

28153COVER, MAGNET SWITCH

main28159-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

main28160-26070i1AC,3A#..AL1#197908-198207

12V 0.9KW

sub28160-26071

28162SPRING, STARTER BRAKE

main28162-15010i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

28199COVER, STARTER

main28199-77090i1AC,3AC..AL1#..USA197908-198207

12V 0.8KW

9009900902

main90099-00902

9009901467

main90099-01467

9009904921

main90099-04921

9009905148

main90099-05148

9009912405

main90099-12405

9161141040

main91611-41040

9411040800

main94110-40800

9451100800

main94511-00800

27 parts on this diagram · 2 diagrams in section
