Toyota TERCEL — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12040i198208-198608

09110JACK ASSY

main09111-12070i198507-198708

main09111-16010i198507-198801

main09118-12020i198208-198212

main09118-12021i198212-198408

main09118-16010i198408-198507

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020i198208-198312

main09115-32010i198312-198708

09116LEVER, JACK HANDLE

main09116-16010i198208-198801

09120BAG, TOOL

main09120-12030i198208-198801

09135ABIT, SCREW DRIVER

main09135-00011i198208-198304

W/SUN ROOF

main09135-00012i198304-198801

W/SUN ROOF

09183WRENCH, WHEEL CAP

main09183-00010i198208-198801

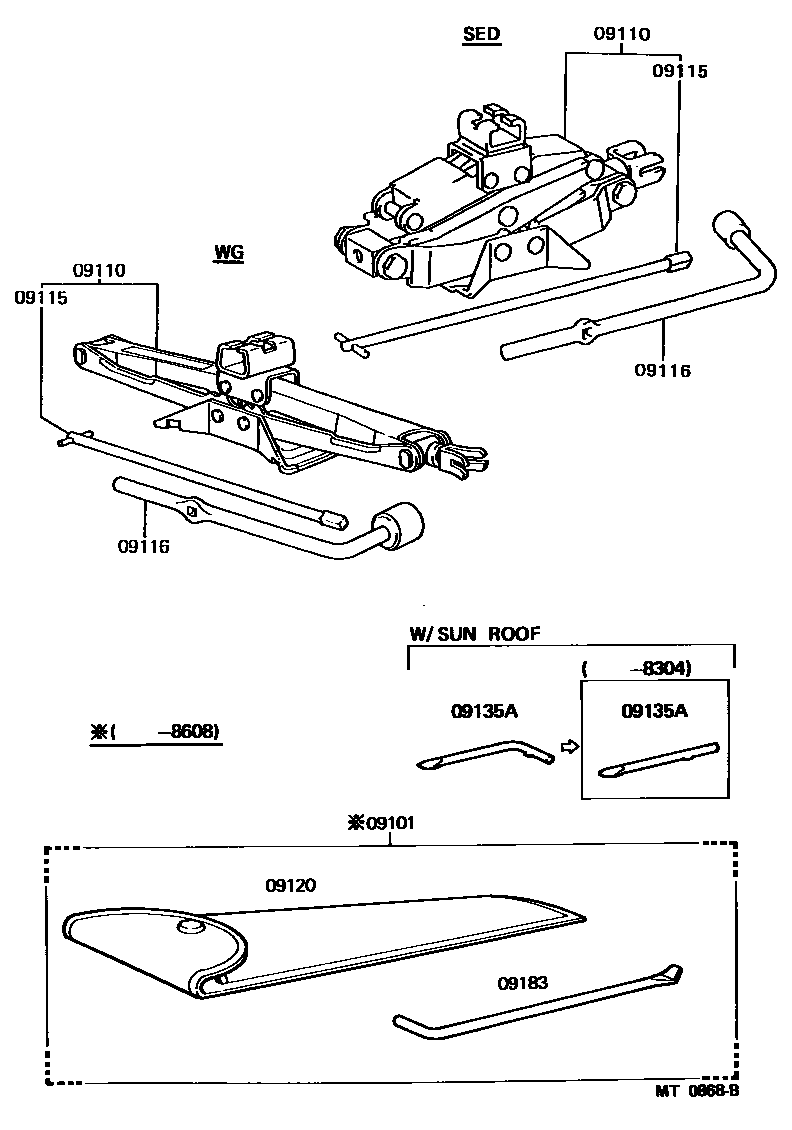

7 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota TERCEL

This section contains 7 genuine Toyota parts for the STANDARD TOOL system of the Toyota TERCEL. Key components include: TOOL SET, STANDARD W/O JACK, JACK ASSY, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
