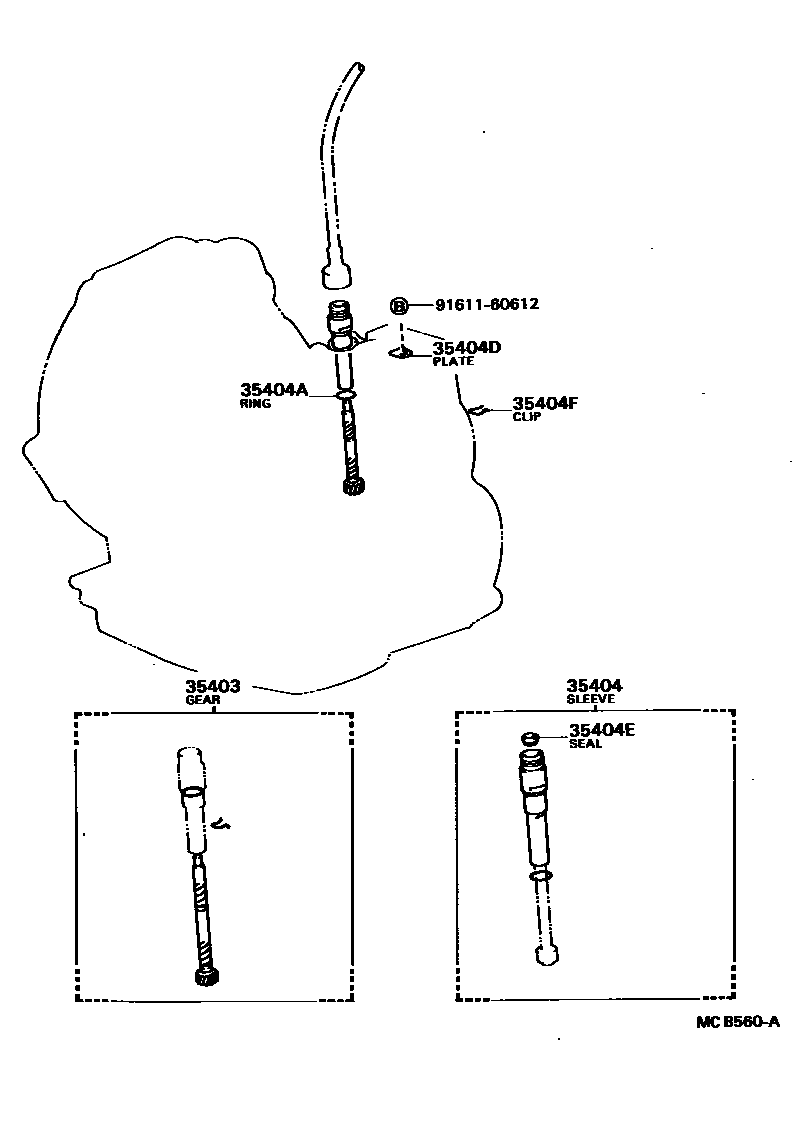

Toyota TERCEL — SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19305i198608-198808

N=22

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-32010i198608-198808

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018i198608-198808

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010i198608-198808

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001i198608-198808

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i198608-198808

9161160612

main91611-60612

7 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota TERCEL

This section contains 7 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota TERCEL. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM), RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE), PLATE, SPEEDOMETER SLEEVE LOCK (ATM), SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE).
