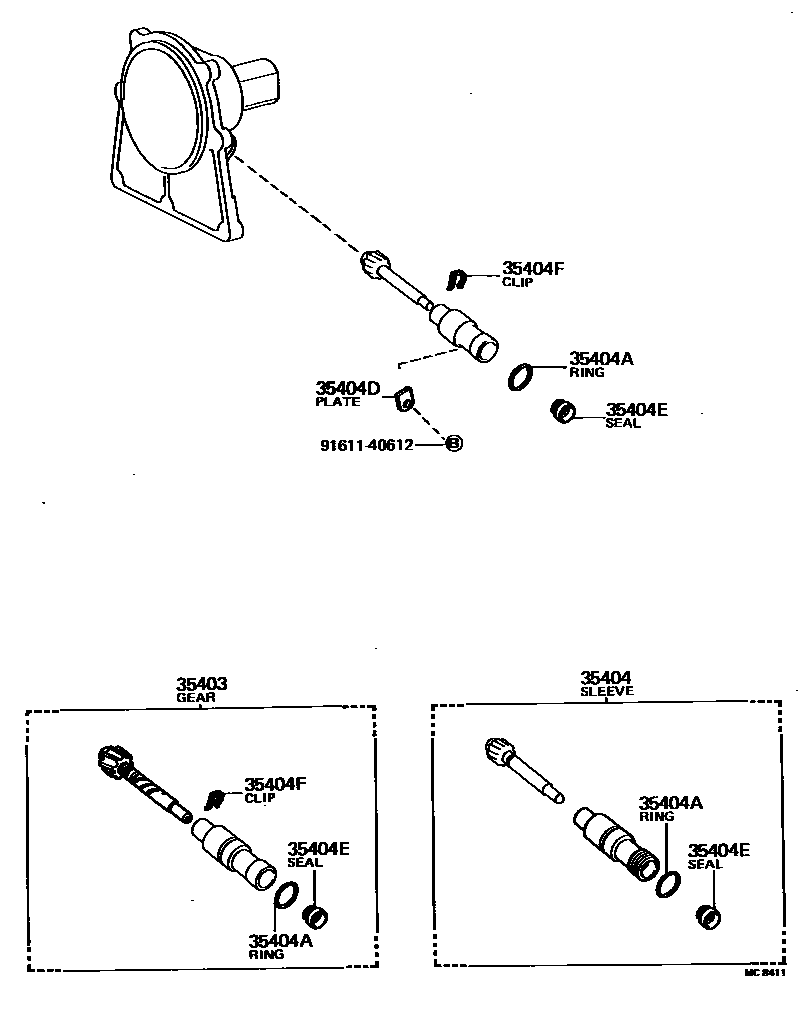

Toyota TERCEL — SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19105i198208-198408

N=19

main33403-19115i198308-198708

N=20

main33403-19315i198402-198408

N=20

main33403-19345i198408-198801

N=21

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-16010i198208-198801

main33404-16020i198402-198801

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96710-02018i198208-198210

main96711-24018i198210-198801

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010i198208-198801

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001i198208-198801

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i198208-198801

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota TERCEL

This section contains 7 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota TERCEL. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM), RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE), PLATE, SPEEDOMETER SLEEVE LOCK (ATM), SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE).
