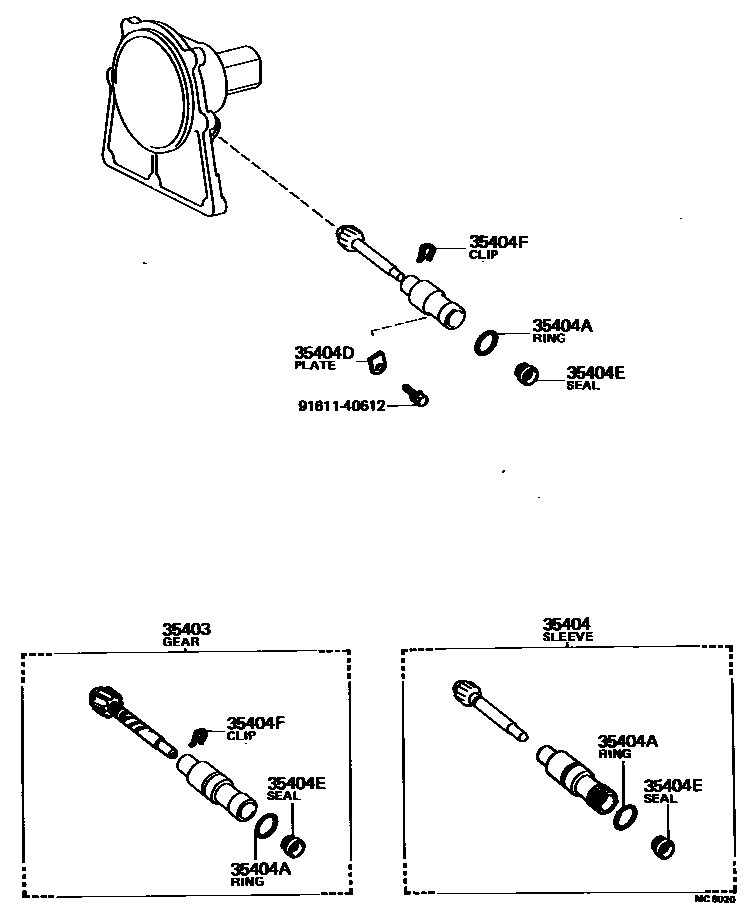

Toyota TERCEL — SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19115i197908-198004

N=20

main33403-19125i198004-198008

N=21

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-16010i197908-198207

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96710-02018i197908-198207

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010i198008-198207

main33485-16010i197908-198008

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001i197908-198207

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i197908-198207

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota TERCEL

This section contains 7 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota TERCEL. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM), RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE), PLATE, SPEEDOMETER SLEEVE LOCK (ATM), SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE).
