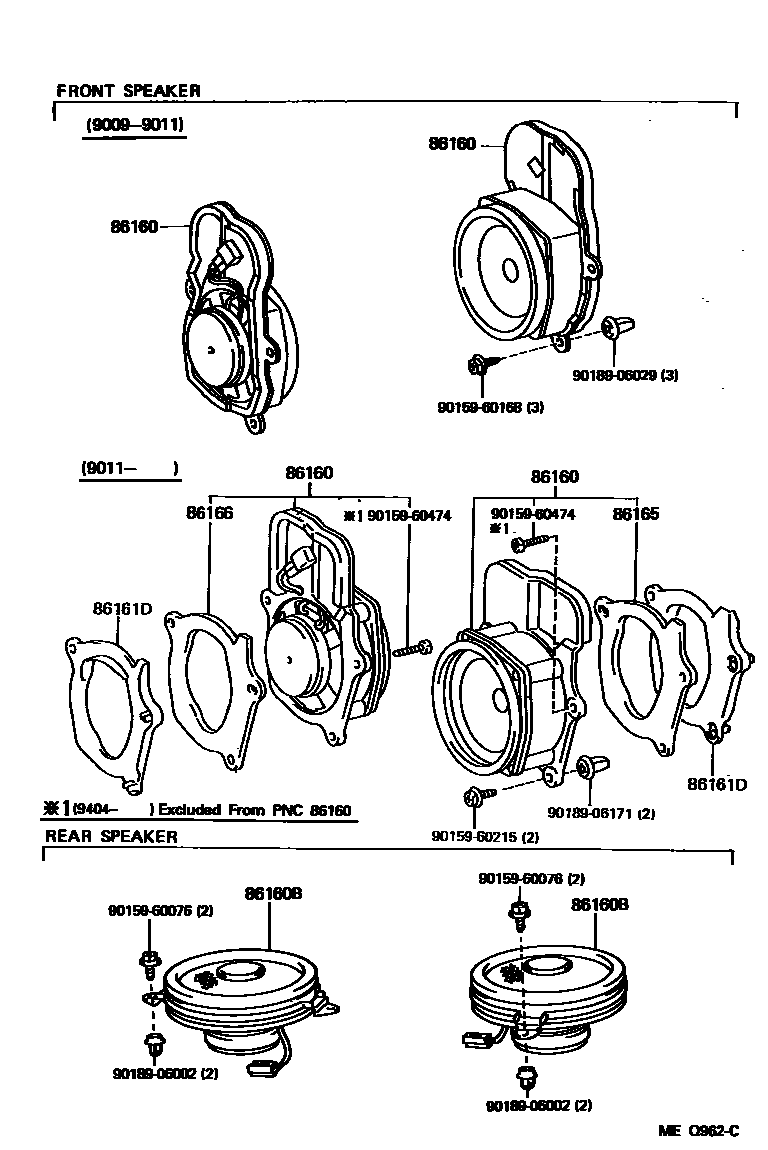

Toyota TERCEL — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-16220iEL42199009-199011

RH

main86160-16230iEL42199009-199011

LH

main86160-16410iEL42..4DS..CND199308-199404

RH

sub90159-60474

main86160-16411iEL42..4DS..CND199404-199409

RH

main86160-16420iEL42..4DS..CND199308-199404

LH

sub90159-60474

main86160-16421iEL42..4DS..CND199404-199409

LH

main86160-16430iEL42..4DS..DLX..CND199308-199404

RH

sub90159-60474

main86160-16431iEL42..4DS..DLX..CND199404-199409

RH

main86160-16440iEL42..4DS..DLX..CND199308-199404

LH

sub90159-60474

main86160-16441iEL42..4DS..DLX..CND199404-199409

LH

86160BSPEAKER ASSY, REAR

main86160-16270×2iEL42..DLX,LE;EL42..STD..CND199009-199409

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-16010iEL42199011-199409

RH

main86161-16020iEL42199011-199409

LH

86165SEAL, SPEAKER, NO.1

main86165-16020iEL42199011-199409

86166SEAL, SPEAKER, NO.2

main86166-16010iEL42199011-199409

9015960076

main90159-60076

9015960168

main90159-60168

9015960215

main90159-60215

9015960474

main90159-60474

9018906002

main90189-06002

9018906029

main90189-06029

9018906171

main90189-06171

12 parts on this diagram · 1 diagram in section
