Toyota TERCEL — SIDE MOULDING

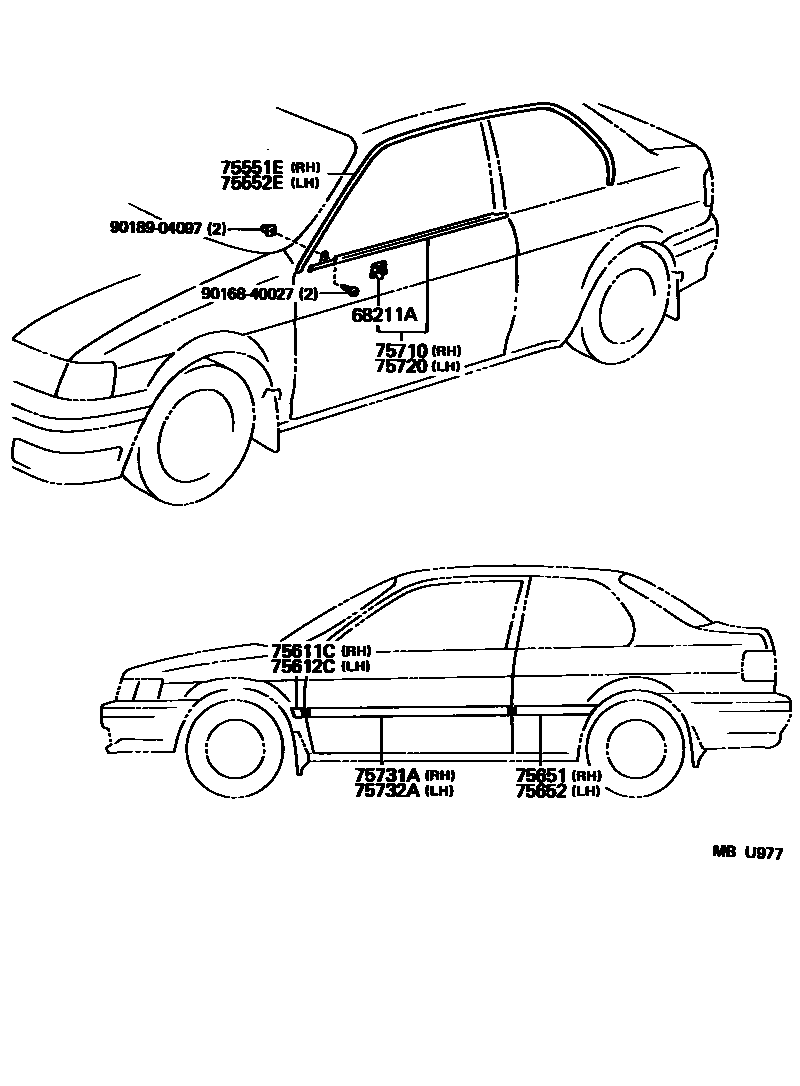

Parts diagram

68211ACLIP, DOOR BELT MOULDING

main68212-16010i199009-199409

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-16150i199009-199010

main75551-16170i199009-199409

main75551-16190i199009-199409

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-16150i199009-199010

main75552-16170i199009-199409

main75552-16190i199009-199409

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-16400i199009-199203

main75611-16401i199203-199409

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75612-16390i199009-199203

main75612-16391i199203-199409

75651MOULDING, QUARTER, OUTSIDE RH

main75651-16370i199009-199203

main75651-16371i199203-199409

main75651-16400i199009-199203

main75651-16401i199203-199409

75652MOULDING, QUARTER, OUTSIDE LH

main75652-16350i199009-199203

main75652-16351i199203-199409

main75652-16380i199009-199203

main75652-16381i199203-199409

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-16140i199009-199409

main75710-16150i199009-199409

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-16140i199009-199409

main75720-16150i199009-199409

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-16670i199009-199203

main75731-16671i199203-199409

main75731-16700i199009-199203

main75731-16701i199203-199409

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-16670i199009-199203

main75732-16671i199203-199409

main75732-16700i199009-199203

main75732-16701i199203-199409

9016840027

main90168-40027

9018904097

main90189-04097

13 parts on this diagram · 2 diagrams in section

SIDE MOULDING for Toyota TERCEL

This section contains 17 genuine Toyota parts for the SIDE MOULDING system of the Toyota TERCEL. Key components include: CLIP, DOOR BELT MOULDING, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING, FRONT FENDER, OUTSIDE RH, MOULDING, FRONT FENDER, OUTSIDE LH.
