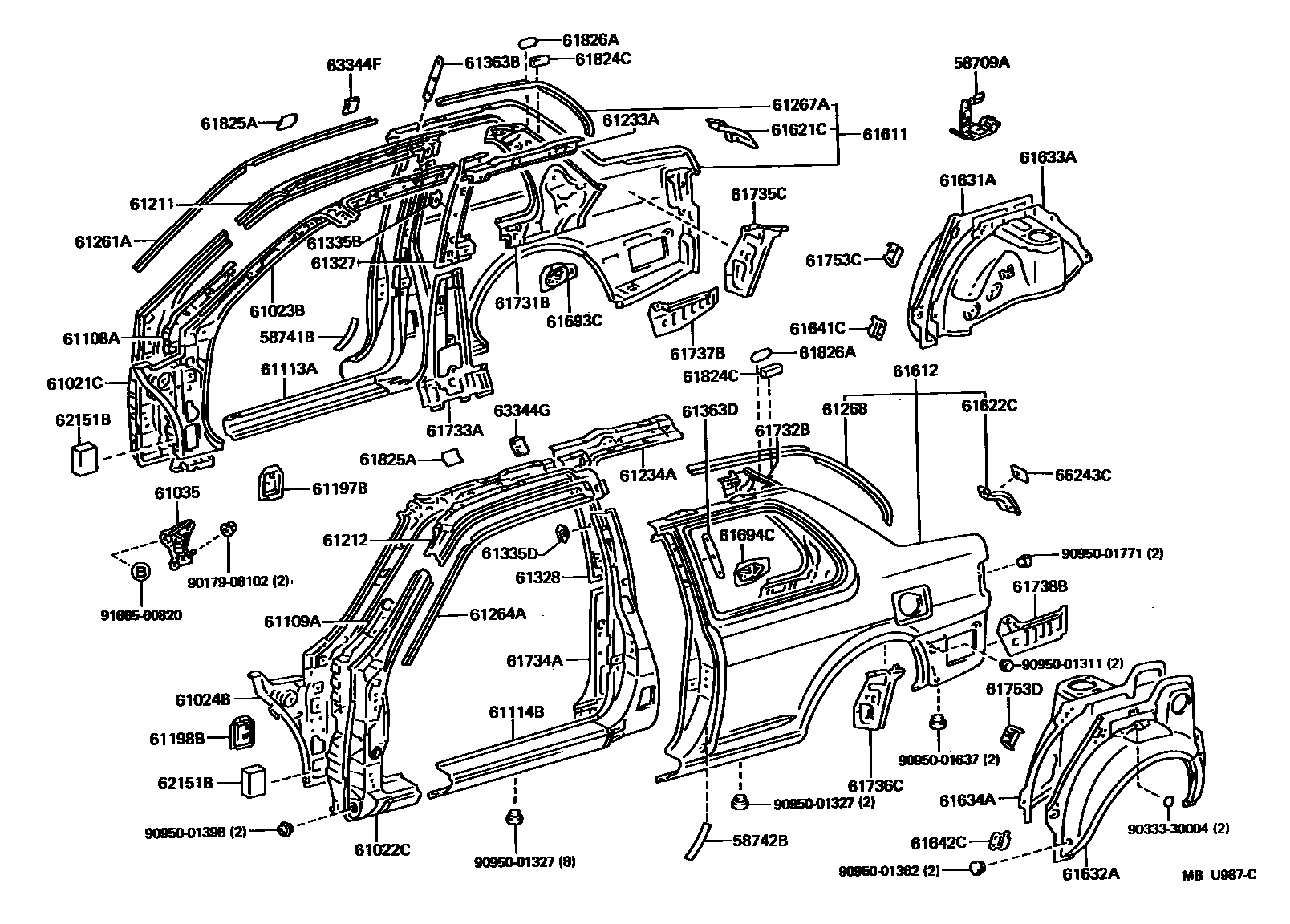

Toyota TERCEL — SIDE MEMBER

0001 1 0002 1

58709ACARRIER SUB-ASSY, JACK

main58709-16030iEL42199208-199409

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12040iEL42..4DS199009-199409

main58741-16030iEL42..2DS199009-199409

58742BPROTECTOR, QUARTER PANEL, LH

main58742-12040iEL42..4DS199009-199409

main58742-16030iEL42..2DS199009-199409

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61027-16010iEL42..4DS199009-199409

main61027-16030iEL42..2DS199009-199409

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61028-16010iEL42..4DS199009-199409

main61028-16030iEL42..2DS199009-199409

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-16020iEL42..2DS199009-199205

sub61023-16120

sub90159-70003

main61023-16021iEL42..2DS..USA199208-199409

sub61023-16022

sub90159-70003

main61023-16070iEL42..4DS199009-199205

sub61023-16130

sub90159-70003

main61023-16071iEL42..4DS199205-199208

sub61023-16072

sub90159-70003

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-16020iEL42..2DS199009

sub61024-16021

sub90159-70003

main61024-16080iEL42..4DS199009

sub61024-16081

sub90159-70003

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-16020iEL42199009-199409

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-16900iEL42199009-199409

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-16900iEL42199009-199409

61113APANEL, SIDE, OUTER NO.2 RH

main61113-16010iEL42..4DS..CND199009-199409

main61113-16020iEL42..4DS..USA199009-199409

main61113-16040iEL42..2DS199009-199409

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-16010iEL42..4DS..CND199009-199208

main61114-16020iEL42..4DS..USA199009-199208

main61114-16040iEL42..2DS199009-199409

61197BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 RH

main61197-16010iEL42199009-199208

sub82711-2A630

main61197-16011iEL42199208-199409

61198BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 LH

main61198-16010iEL42199009-199208

sub82711-2A630

main61198-16011iEL42199208-199409

61211RAIL, ROOF SIDE, OUTER RH

main61211-16100iEL42..4DS199009-199409

main61211-16120iEL42..2DS199009-199409

61212RAIL, ROOF SIDE, OUTER LH

main61202-16110iEL42..4DS199009-199409

main61202-16120iEL42..2DS199009-199409

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-16010iEL42..2DS199009-199409

main61233-16040iEL42..4DS199009-199409

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-16010iEL42..2DS199009-199409

main61234-16040iEL42..4DS199009-199409

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-16060iEL42..2DS199009-199409

main61263-16070iEL42..4DS199009-199409

61264ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-16060iEL42..2DS199009-199409

main61264-16070iEL42..4DS199009-199409

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-16090iEL42..2DS199009-199409

main61267-16110iEL42..4DS199009-199409

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-16090iEL42..2DS199009-199409

main61268-16110iEL42..4DS199009-199409

61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH

main61327-16060iEL42..2DS199009-199409

61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH

main61328-16060iEL42..2DS199009-199409

61335BRETAINER, SEAT BELT ANCHOR

main61335-16010iEL42..2DS199009-199409

61335DRETAINER, SEAT BELT ANCHOR

main61335-16010iEL42..2DS199009-199409

61363BREINFORCEMENT, SEAT BELT ANCHOR SIDE, RH

main61363-16020iEL42..2DS..USA199009-199409

61363DREINFORCEMENT, SEAT BELT ANCHOR SIDE

main61363-16020iEL42..2DS..USA199009-199208

61611PANEL, QUARTER, RH

main61601-16770iEL42..2DS199009-199208

sub61601-16771

sub90167-70001

main61601-16820iEL42..4DS199009-199409

61612PANEL, QUARTER, LH

main61602-1G220iEL42..2DS199009-199208

main61602-1G221iEL42..2DS199208-199409

sub61602-1G222

sub90167-70001

main61602-1G280iEL42..4DS199009-199208

main61602-1G281iEL42..4DS199208-199409

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-16080iEL42199009-199409

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-16080iEL42199009-199409

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-16150iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-16150iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-16220iEL42..2DS199009-199409

main61607-16300iEL42..LE..USA;EL42..4DS..CND199009-199208

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-16240iEL42..2DS199009-199409

main61608-16310iEL42..LE..USA;EL42..4DS..CND199009-199208

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-16040iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-16060iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61693CRETAINER, REAR SEATBACK SET, RH

main61693-16090iEL42..DLX,LE199208-199409

61694CRETAINER, REAR SEATBACK SET, LH

main61694-16070iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

61731BPANEL, ROOF SIDE, INNER RH

main61731-16902iEL42..2DS199009-199409

main61731-16903iEL42..LE..USA;EL42..4DS..CND199009-199208

61732BPANEL, ROOF SIDE, INNER LH

main61732-16902iEL42..2DS199009-199409

main61732-16903iEL42..LE..USA;EL42..4DS..CND199009-199208

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-16050iEL42..2DS199009-199409

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-16050iEL42..2DS199009-199409

61735CPANEL, ROOF SIDE, INNER REAR RH

main61735-16900iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61736CPANEL, ROOF SIDE, INNER REAR LH, NO.2

main61736-16900iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61737-16090iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61738BPANEL, ROOF SIDE, INNER LOWER LH

main61738-16090iEL42..CND;EL42..(LE,STD)..USA;EL42..2DS..DLX..USA199009-199208

61753CRETAINER, QUARTER TRIM, LOWER

main61753-16020iEL42..2DS199009-199409

61753DRETAINER, QUARTER TRIM, LOWER

main61753-16020iEL42..2DS199009-199409

61824CPAD, NOISE SHUTTER, NO.1

main61824-16010×2iEL42199009-199409

61825APLATE, NOISE CONTROL, NO.2

main61825-12010×2iEL42199009-199409

61826APLATE, NOISE CONTROL, NO.3

main61826-16020×2iEL42199009-199409

62151BPAD, COWL SIDE SILENCER

main62151-12100×2iEL42199009-199409

63344FPAD, ROOF SILENCER, NO.4

main63344-16010×3iEL42199009-199409

63344GPAD, ROOF SILENCER, NO.4

main63344-16010×3iEL42199009-199409

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010×2iEL42199009-199409

9017908102

main90179-08102

9033330004

main90333-30004

9095001311

main90950-01311

9095001327

main90950-01327

9095001362

main90950-01362

9095001398

main90950-01398

9095001637

main90950-01637

9095001771

main90950-01771

9166560820

main91665-60820

66 parts on this diagram · 2 diagrams in section
