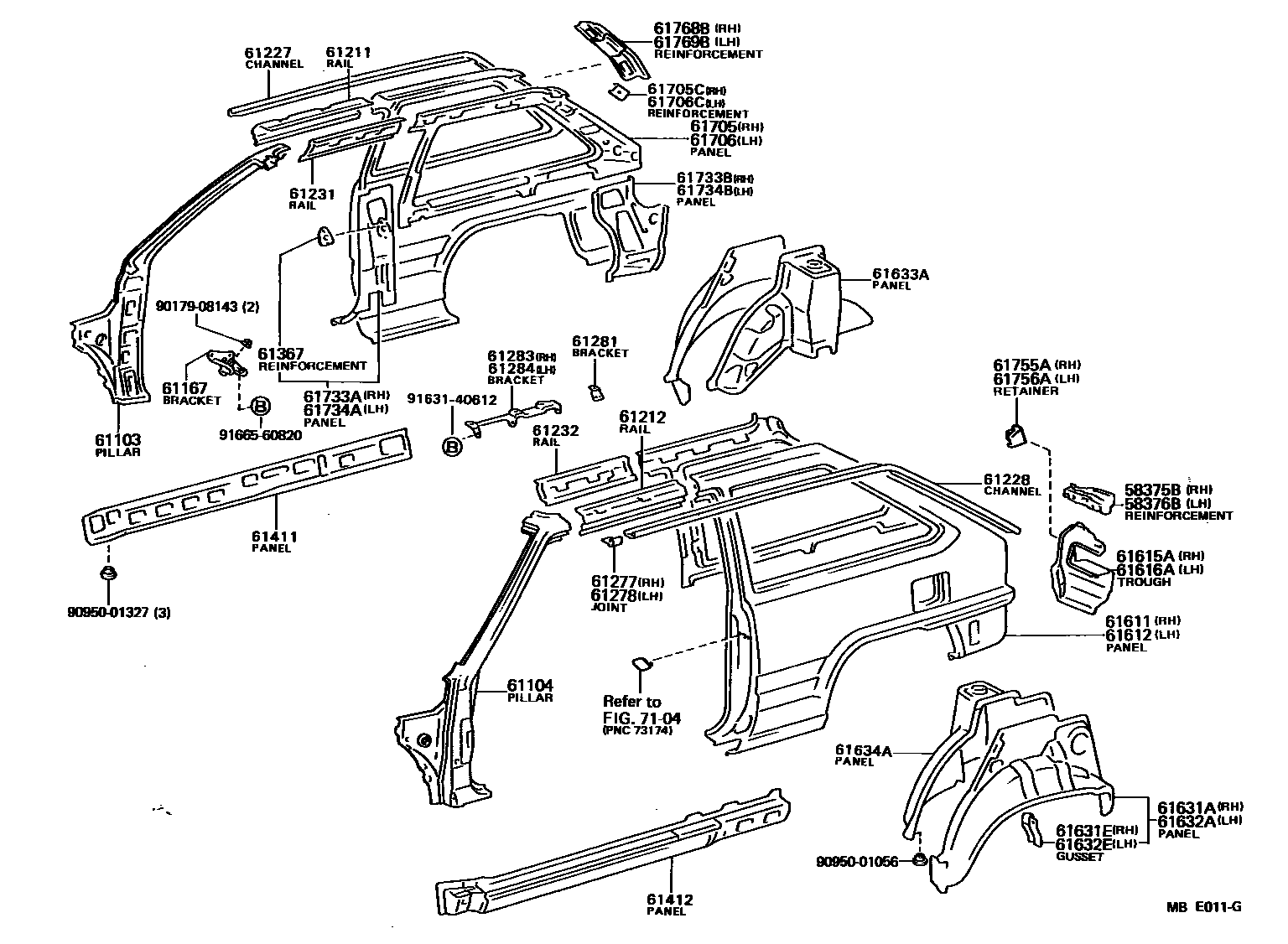

Toyota TERCEL — SIDE MEMBER

0001 1 0002 1 0003 1

58375BREINFORCEMENT, BODY LOWER BACK PANEL, RH

main58375-16010iAL21..SED198208-198608

58376BREINFORCEMENT, BODY LOWER BACK PANEL, LH

main58376-16010iAL21..SED198208-198608

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-16050iAL2#..WG198208-198408

W/O SUN ROOF

main61021-16090iAL2#..WG198604-198801

W/SUN ROOF

main61021-16150iAL2#..WG198408-198604

W/SUN ROOF

main61021-16160iAL21..SED198408-198608

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-16070iAL21..SED198208-198408

W/O SUN ROOF

main61022-16110iAL2#..WG198208-198408

W/SUN ROOF

main61022-16170iAL2#..WG198408-198801

W/SUN ROOF

main61022-16190iAL2#..WG198408-198801

W/O SUN ROOF

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-16020iAL2#198208-198801

61211RAIL, ROOF SIDE, OUTER RH

main61211-16030iAL21..3DS198208-198608

main61211-16050iAL21..5DS198208-198608

main61211-16070iAL2#..WG198208-198801

61212RAIL, ROOF SIDE, OUTER LH

main61212-16030iAL21..3DS198208-198608

main61212-16050iAL21..5DS198208-198608

main61212-16070iAL2#..WG198208-198801

61227CHANNEL, ROOF DRIP SIDE, REAR RH

main61267-16030iAL21..3DS198208-198608

main61267-16040iAL21..5DS198208-198608

main61267-16050iAL2#..WG198208-198801

61228CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-16030iAL21..3DS198208-198608

main61268-16040iAL21..5DS198208-198608

main61268-16050iAL2#..WG198208-198801

61231RAIL, ROOF SIDE, INNER RH

main61231-16050iAL21..3DS198208-198608

main61231-16070iAL21..5DS198208-198608

main61231-16090iAL2#..WG198208-198801

61232RAIL, ROOF SIDE, INNER LH

main61232-16050iAL21..3DS198208-198608

main61232-16070iAL21..5DS198208-198608

main61232-16090iAL2#..WG198208-198801

61277JOINT, ROOF DRIP CHANNEL, FRONT RH

main61277-16020iAL21..STD198208-198608

61278JOINT, ROOF DRIP CHANNEL, FRONT LH

main61277-16020iAL21..STD198208-198608

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-16010×2iAL21..CND198208-198308

main61281-16020×2iAL2#..WG198208-198801

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-16010iAL21..CND198208-198308

main61283-16020iAL2#..WG198208-198801

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-16010iAL21..CND198208-198308

main61284-16020iAL2#..WG198208-198801

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-14010×2iAL21..3DS198208-198608

61411PANEL, ROCKER, OUTER RH

main61401-16090iAL21..3DS198208-198608

main61401-16100iAL2#..WG;AL21..5DS198208-198801

61412PANEL, ROCKER, OUTER LH

main61402-16090iAL21..3DS198208-198608

main61402-16100iAL2#..WG;AL21..5DS198208-198801

61611PANEL, QUARTER, RH

main61601-16500iAL21..WG198308-198708

sub61601-16920

main61601-16901iAL21..5DS198208-198405

main61601-16904iAL21..3DS198208-198405

main61601-16908iAL25198208-198801

main61601-16910iAL21..5DS198405-198608

main61601-16913iAL21..3DS198405-198608

61612PANEL, QUARTER, LH

main61602-16530iAL21..WG198308-198708

sub61602-16929

main61602-16902iAL21..5DS198208-198405

main61602-16907iAL21..3DS198208-198405

main61602-16913iAL25198208-198801

main61602-16916iAL21..5DS198405-198608

main61602-16920iAL21..3DS198405-198608

61615ATROUGH, BACK DOOR OPENING, RH

main61621-16030iAL21..SED198208-198608

61616ATROUGH, BACK DOOR OPENING, LH

main61622-16030iAL21..SED198208-198608

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-16140iAL21..5DS198208-198608

main61605-16150iAL21..3DS198208-198608

main61605-16170iAL25198208-198801

main61605-16190iAL21..WG198308-198708

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12050iAL25198208-198305

main61645-12080iAL25198305-198801

main61645-16010iAL21..SED198208-198608

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61606-16160iAL21..5DS198208-198608

main61606-16170iAL21..3DS198208-198608

main61606-16190iAL25198208-198801

main61606-16210iAL21..WG198308-198708

61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-16020iAL21..SED198208-198708

main61646-16030iAL25198208-198801

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-16100iAL25198208-198604

sub90948-02105

main61607-16110iAL21198208-198708

main61607-16160iAL25198604-198801

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-16130iAL25198208-198604

sub90948-02105

main61608-16140iAL21198208-198708

main61608-16180iAL25198604-198801

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-16310iAL25198208-198801

main61705-16350iAL21..WG198308-198708

main61705-16908iAL21..5DS198208-198608

main61705-16910iAL21..3DS198208-198608

61705CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR RH

main61665-14010iAL21..SED198208-198512

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-16310iAL25198208-198801

main61706-16350iAL21..WG198308-198708

main61706-16908iAL21..5DS198208-198608

main61706-16910iAL21..3DS198208-198608

61706CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR LH

main61665-14010iAL21..SED198208-198512

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-16900iAL21..3DS198208-198608

61733BPANEL, ROOF SIDE, INNER REAR RH

main61735-16030iAL21..SED198208-198608

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-16900iAL21..3DS198208-198608

61734BPANEL, ROOF SIDE, INNER REAR LH

main61736-16030iAL21..SED198208-198608

61755ARETAINER, DECK SIDE TRIM, UPPER RH

main61755-16020×2iAL21..SED198208-198608

61756ARETAINER, DECK SIDE TRIM, UPPER LH

main61755-16020×2iAL21..SED198208-198608

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-16010iAL21..3DS198208-198608

main61768-16020iAL21..5DS198208-198608

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-16010iAL21..3DS198208-198608

main61769-16020iAL21..5DS198208-198608

7104

9017908143

main90179-08143

9095001056

main90950-01056

9095001327

main90950-01327

9163140612

main91631-40612

9166560820

main91665-60820

47 parts on this diagram · 3 diagrams in section
