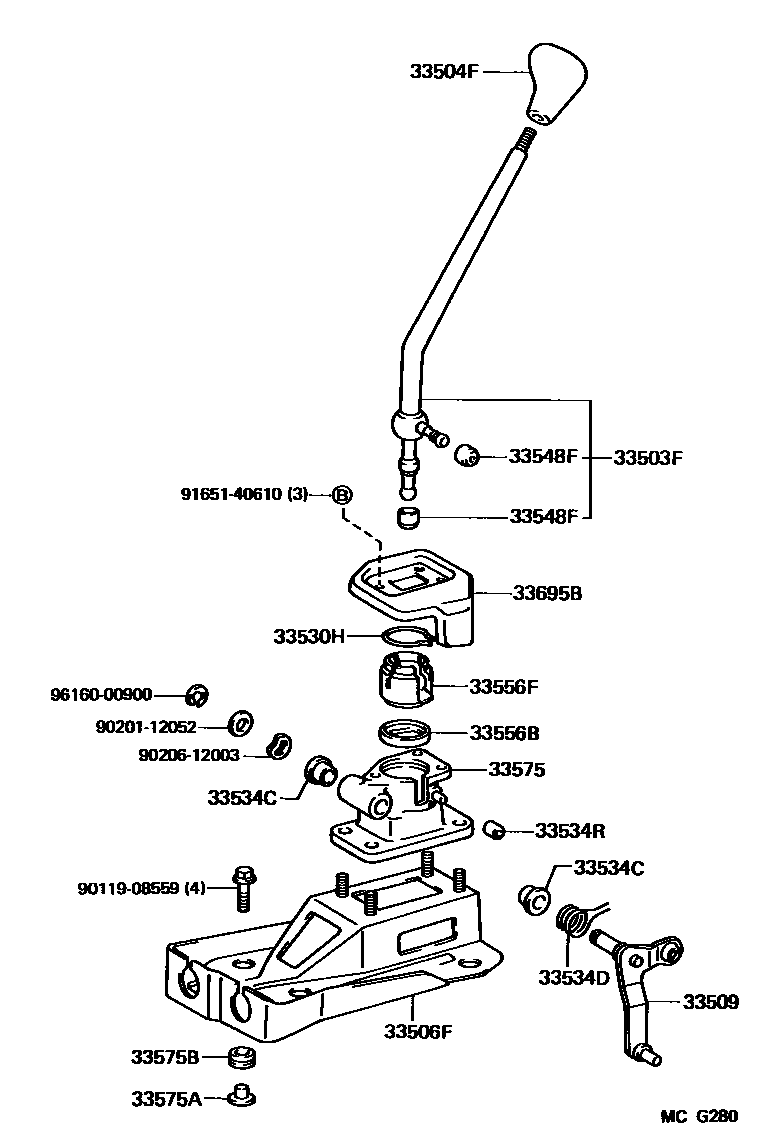

Toyota TERCEL — SHIFT LEVER & RETAINER

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-16190i198808-198904

main33503-16191i198904-199009

main33503-16221i198808-199009

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12080-01i198808-199009

BLACK,TRIM2#

sub33504-14040

main33504-14050-11i198808-199009

NEW BLACK,TRIM2#

sub33504-14070

main33504-14050-34i198808-199009

BLUE,TRIM8#

sub33504-14070

main33542-16040-01i198808-199009

NEW BLACK,TRIM2#

main33542-16040-04i198808-199009

BLUE,TRIM8#

main33542-16040-06i198808-199009

BROWN,TRIM4#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-16030i198808-199009

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12060i198808-198910

sub90206-12003

main33509-12080i198910-199009

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002i198808-199009

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12034×2i198808-199009

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084i198808-199009

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029i198808-199009

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021×2i198808-199009

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-34001i198808-199009

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020i198808-199009

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-16040i198808-198910

main33575-20390i198910-199009

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031×4i198808-199009

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10018×4i198808-199009

33695BCOVER, SELECTING SPRING (FOR FLOOR SHIFT)

main33695-20010i198808-199009

9011908559

main90119-08559

9020112052

main90201-12052

9020612003

main90206-12003

9165140610

main91651-40610

9616000900

main96160-00900

20 parts on this diagram · 5 diagrams in section
