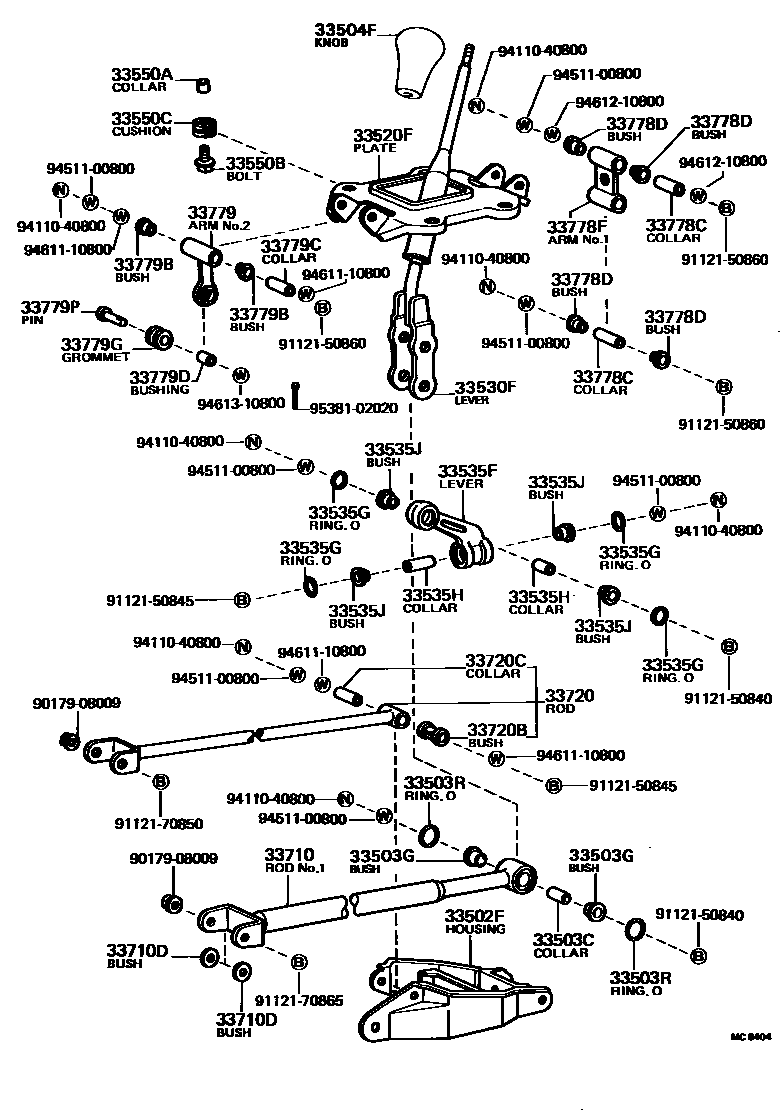

Toyota TERCEL — SHIFT LEVER & RETAINER

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-16070i198605-198801

main33502-16091i198605-198801

33502FHOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)

main33502-16010i198208-198801

33503CCOLLAR(FOR SHIFT LEVER SUB-ASSY)

main90387-08010i198208-198801

33503GBUSH(FOR SHIFT LEVER)

main90389-11002×2i198208-198801

33503RRING, O(FOR SHIFT LEVER SUB-ASSY)

main96711-24018×2i198208-198801

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-02i198208-198608

DARK WINE,RED/MAROON

main33504-14040-03i198208-198408

GRAY,GRAY

main33504-14040-05i198408-198605

BEIGE,BEIGE

main33504-14040-06i198208-198408

BROWN,BROWN

main33504-14040-13i198408-198602

GRAY,GRAY

main33504-14040-33i198602-198608

GRAY,GRAY

main33504-14050-02i198208-198608

DARK WINE,RED/MAROON

main33504-14050-03i198208-198408

GRAY,GRAY

main33504-14050-05i198408-198605

BEIGE,BEIGE

main33504-14050-06i198208-198408

BROWN,BROWN

main33504-14050-11i198608-198801

BLACK,NEW BLACK

main33504-14050-13i198408-198602

GRAY,GRAY

main33504-14050-25i198605-198608

BEIGE,DARK BEIGE

main33504-14050-43i198602-198608

GRAY,GRAY

main33504-16020-01i198608-198801

BLACK,NEW BLACK

main33504-16020-03i198208-198408

GRAY,GRAY

main33504-16020-05i198408-198605

BEIGE,BEIGE

main33504-16020-06i198208-198408

BROWN,BROWN

main33504-16020-13i198408-198608

GRAY,GRAY

main33504-16020-15i198605-198801

BEIGE,DARK BEIGE

main33504-24010-12i198208-198408

DARK WINE,RED/MAROON

main33504-24010-13i198208-198408

GRAY,GRAY

main33504-24010-16i198208-198408

BROWN,BROWN

main33504-24010-33i198408-198508

GRAY,GRAY

main33504-24010-45i198408-198508

BEIGE,BEIGE

main33542-12110-03i198408-198603

GRAY,GRAY

main33542-12110-05i198408-198605

BEIGE,BEIGE

main33542-12110-11i198608-198801

BLACK,NEW BLACK

main33542-12110-12i198408-198608

DARK WINE,RED/MAROON

main33542-12110-15i198605-198801

BEIGE,DARK BEIGE

main33542-12110-33i198603-198608

GRAY,GRAY

main33542-16010-02i198208-198408

DARK WINE,RED/MAROON

main33542-16010-03i198208-198408

GRAY,GRAY

main33542-16010-06i198208-198408

BROWN,BROWN

main33542-16030-03i198402-198408

GRAY,GRAY

main33542-16030-06i198402-198408

BROWN,BROWN

main33542-16031-01i198608-198801

BLACK,NEW BLACK

main33542-16031-03i198408-198608

GRAY,GRAY

main33542-16031-05i198408-198605

BEIGE,BEIGE

main33542-16031-15i198605-198801

BEIGE,DARK BEIGE

33520FPLATE, SHIFT LEVER

main33521-16010i198208-198801

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-16100i198208-198801

main33503-16120i198402-198801

main33530-16040i198208-198801

main33530-16060i198208-198801

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-16010i198208-198801

33535GRING, 0 (FOR CONTROL SELECT LEVER)

main96711-24018×4i198208-198801

33535HCOLLAR (FOR CONTROL SELECT LEVER)

main90387-08009i198208-198801

L=30

main90387-08010i198208-198801

L=22

33535JBUSH (FOR CONTROL SELECT LEVER)

main90389-11002×2i198208-198801

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-16110-02i198208-198408

DARK WINE,RED/MAROON

main33550-16110-03i198208-198408

GRAY,GRAY

main33550-16110-06i198208-198408

BROWN,BROWN

main33550-16170-03i198402-198403

GRAY,GRAY

main33550-16170-06i198402-198403

BROWN,BROWN

main33550-16171-03i198403-198408

GRAY,GRAY

main33550-16171-05i198408-198605

BEIGE,BEIGE

main33550-16171-06i198403-198408

BROWN,BROWN

main33550-16171-13i198408-198605

GRAY,GRAY

main33550-16190-02i198408-198605

DARK WINE,DARK WINE

main33550-16190-03i198408-198605

GRAY,GRAY

main33550-16190-05i198408-198605

BEIGE,BEIGE

33550ACOLLAR FOR FLOOR SHIFT)

main90387-06003×4i198208-198801

33550BBOLT, W/WASHER (FOR FLOOR SHIFT)

main90119-06182×4i198208-198801

33550CCUSHION(FOR FLOOR SHIFT)

main90541-13002×4i198208-198801

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-16020i198208-198801

33710DBUSH (FOR SHIFTING ROD, NO.1)

main90386-11005×2i198208-198801

33720ROD ASSY, SHIFT LEVER HOUSING

main33770-16020i198208-198801

33720BBUSH (FOR SHIFT LEVER HOUSING ROD)

main90385-10004i198208-198801

33720CCOLLAR (FOR SHIFT LEVER HOUSING ROD)

main90387-08012i198208-198801

33778CCOLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)

main90387-08011×2i198208-198801

33778DBUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)

main90386-11002×4i198208-198801

33778FARM, SHIFT LEVER HOUSING, NO.1

main33778-16010i198208-198801

33779ARM, SHIFT LEVER HOUSING, NO.2

main33779-16010i198208-198801

33779BBUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90386-11002×2i198208-198801

33779CCOLLAR (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90387-08011i198208-198801

33779DBUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90389-08005i198208-198801

33779GGROMMET (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90480-17177i198208-198801

33779PPIN, W/HOLE (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90240-08015i198208-198801

9017908009

main90179-08009

9112150840

main91121-50840

9112150845

main91121-50845

9112150860

main91121-50860

9112170850

main91121-70850

9112170865

main91121-70865

9411040800

main94110-40800

9451100800

main94511-00800

9461110800

main94611-10800

9461210800

main94612-10800

9461310800

main94613-10800

9538102020

main95381-02020

42 parts on this diagram · 4 diagrams in section

SHIFT LEVER & RETAINER for Toyota TERCEL

This section contains 83 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota TERCEL. Key components include: BUSH (FOR FLOOR SHIFT CONTROL SHAFT), PLATE SUB-ASSY, SHIFT LEVER, COLLAR (FOR FLOOR SHIFT SETTING), HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT), COLLAR(FOR SHIFT LEVER SUB-ASSY).
