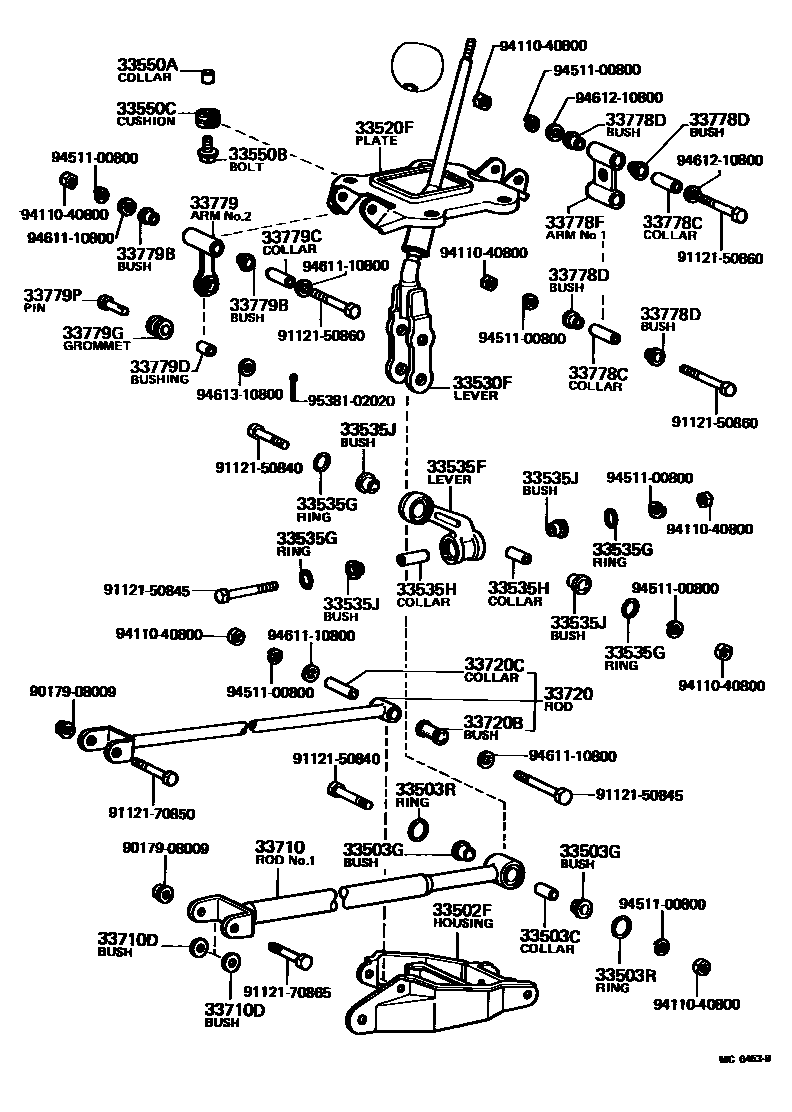

Toyota TERCEL — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33502FHOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)

main33502-16010iAL1#..MTM197908-198207

33503CCOLLAR(FOR SHIFT LEVER SUB-ASSY)

main90387-08010iAL1#..MTM197908-198207

33503GBUSH(FOR SHIFT LEVER)

main90389-11002×2iAL1#..MTM197908-198207

33503RRING, O(FOR SHIFT LEVER SUB-ASSY)

main90301-16007×2iAL1#..MTM197908-198010

main96710-02018×2iAL12..MTM198010-198205

sub96711-19018

33520FPLATE, SHIFT LEVER

main33521-16010iAL1#..MTM197908-198207

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-16030iAL1#..3FC197908-198207

main33530-16020iAL1#..MTM197908-198108

main33530-16021iAL12..MTM198108-198207

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-16010iAL1#..MTM197908-198207

33535GRING, 0 (FOR CONTROL SELECT LEVER)

main90301-16007×4iAL1#..MTM197908-198010

main96710-02018×4iAL12..MTM198010-198205

sub96711-19018

33535HCOLLAR (FOR CONTROL SELECT LEVER)

main90387-08009iAL1#..MTM197908-198207

L=30

main90387-08010iAL1#..MTM197908-198207

L=22

33535JBUSH (FOR CONTROL SELECT LEVER)

main90389-11002×4iAL1#..MTM197908-198207

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-16030iAL1#..3FC197908-198008

main33550-16070-01iAL12..3FC198008-198207

BLACK,BLACK

main33550-16070-04iAL12..3FC198008-198112

BLUE,BLUE

main33550-16070-06iAL12..3FC198008-198207

LIGHT BROWN,BROWN

main33550-16070-14iAL12..3FC198112-198207

BLUE,BLUE

33550ACOLLAR FOR FLOOR SHIFT)

main90387-06003×4iAL1#..MTM197908-198207

33550BBOLT, W/WASHER (FOR FLOOR SHIFT)

main90119-06182×4iAL1#..MTM197908-198207

33550CCUSHION(FOR FLOOR SHIFT)

main90541-13002×4iAL1#..MTM197908-198207

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-16011iAL1#..MTM197908-198207

33710DBUSH (FOR SHIFTING ROD, NO.1)

main90386-11005×2iAL1#..MTM197908-198207

33720ROD ASSY, SHIFT LEVER HOUSING

main33770-16010iAL1#..MTM197908-198207

33720BBUSH (FOR SHIFT LEVER HOUSING ROD)

main90385-10004iAL1#..MTM197908-198207

33720CCOLLAR (FOR SHIFT LEVER HOUSING ROD)

main90387-08012iAL1#..MTM197908-198207

33778CCOLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)

main90387-08011×2iAL1#..MTM197908-198207

33778DBUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)

main90386-11002×4iAL1#..MTM197908-198207

33778FARM, SHIFT LEVER HOUSING, NO.1

main33778-16010iAL1#..MTM197908-198207

33779ARM, SHIFT LEVER HOUSING, NO.2

main33779-16010iAL1#..MTM197908-198207

33779BBUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90386-11002×2iAL1#..MTM197908-198207

33779CCOLLAR (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90387-08011iAL1#..MTM197908-198207

33779DBUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90389-08005iAL1#..MTM197908-198207

33779GGROMMET (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90480-17177iAL1#..MTM197908-198207

33779PPIN, W/HOLE (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90240-08015iAL1#..MTM197908-198207

9017908009

main90179-08009

9112150840

main91121-50840

9112150845

main91121-50845

9112150860

main91121-50860

9112170850

main91121-70850

9112170865

main91121-70865

9411040800

main94110-40800

9451100800

main94511-00800

9461110800

main94611-10800

9461210800

main94612-10800

9461310800

main94613-10800

9538102020

main95381-02020

40 parts on this diagram · 3 diagrams in section
