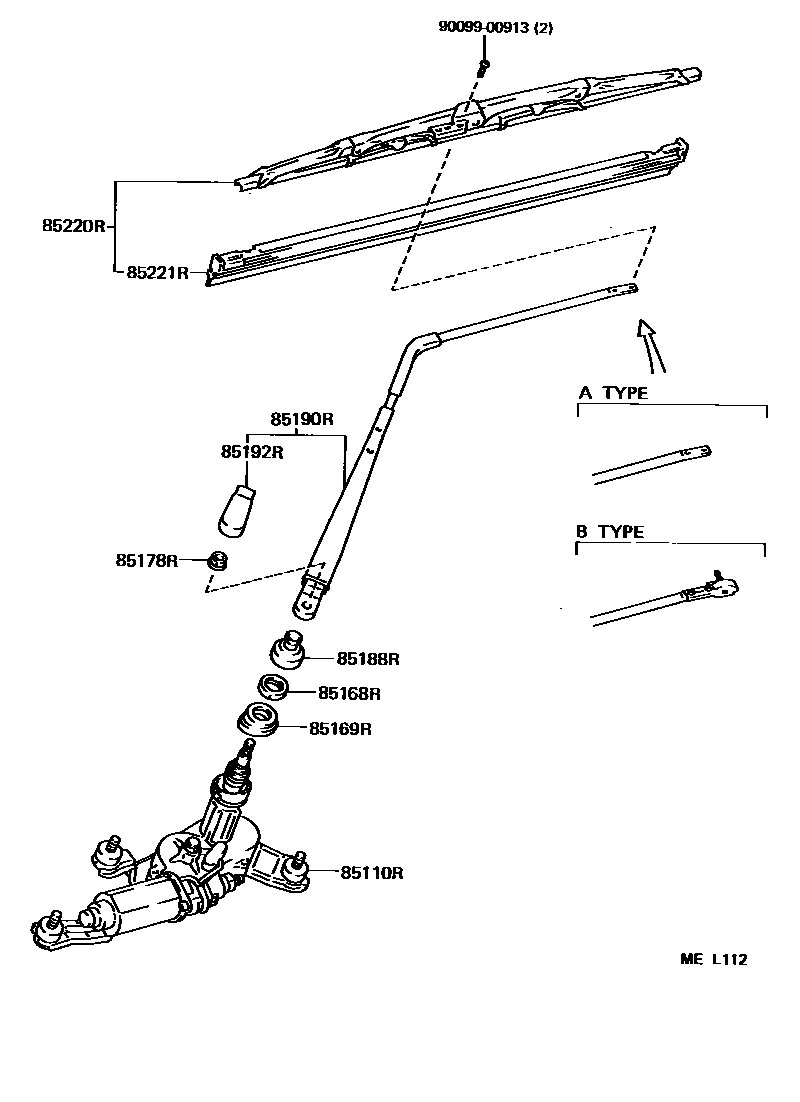

Toyota TERCEL — REAR WIPER
85110RMOTOR ASSY, REAR WIPER
85168RNUT, REAR WIPER LINK PIVOT, NO.1
85169RWASHER, REAR WIPER LINK PIVOT, NO.1
85178RNUT (FOR REAR WIPER ARM SETTING)
85188RCAP, REAR WIPER PIVOT, NO.1
85190RARM ASSY, REAR WIPER
A TYPE
B TYPE
B TYPE
B TYPE
85192RCOVER, REAR WIPER ARM
85220RBLADE ASSY, REAR WIPER
ARM=A TYPE
ARM=B TYPE
9009900913
main90099-00913
10 parts on this diagram · 1 diagram in section
REAR WIPER for Toyota TERCEL
This section contains 10 genuine Toyota parts for the REAR WIPER system of the Toyota TERCEL. Key components include: MOTOR ASSY, REAR WIPER, NUT, REAR WIPER LINK PIVOT, NO.1, WASHER, REAR WIPER LINK PIVOT, NO.1, NUT (FOR REAR WIPER ARM SETTING), CAP, REAR WIPER PIVOT, NO.1.
