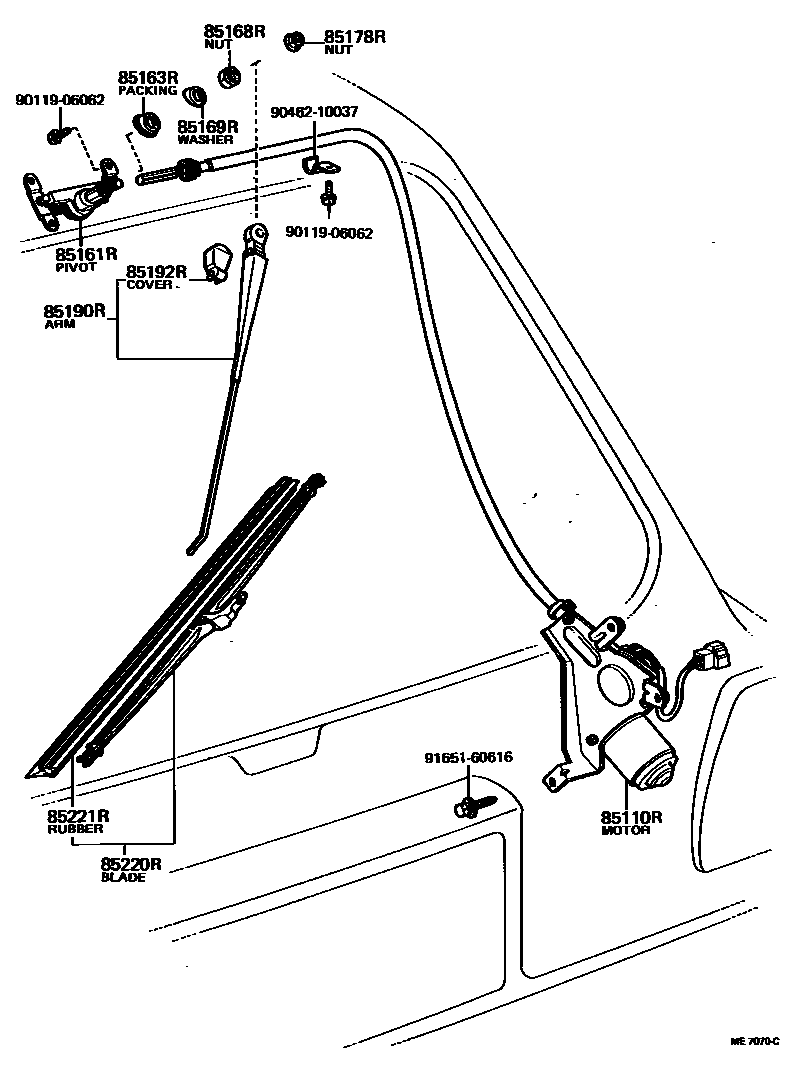

Toyota TERCEL — REAR WIPER
85110RMOTOR ASSY, REAR WIPER
85161RPIVOT, REAR WIPER LINK, NO.1
85163RPACKING, REAR WIPER PIVOT, NO.1
85168RNUT, REAR WIPER LINK PIVOT, NO.1
85169RWASHER, REAR WIPER LINK PIVOT, NO.1
85178RNUT (FOR REAR WIPER ARM SETTING)
85190RARM ASSY, REAR WIPER
85192RCOVER, REAR WIPER ARM
85220RBLADE ASSY, REAR WIPER
85221RBLADE, REAR WIPER
9011906062
main90119-06062
9046210037
main90462-10037
9165160616
main91651-60616
13 parts on this diagram · 1 diagram in section
REAR WIPER for Toyota TERCEL
This section contains 13 genuine Toyota parts for the REAR WIPER system of the Toyota TERCEL. Key components include: MOTOR ASSY, REAR WIPER, PIVOT, REAR WIPER LINK, NO.1, PACKING, REAR WIPER PIVOT, NO.1, NUT, REAR WIPER LINK PIVOT, NO.1, WASHER, REAR WIPER LINK PIVOT, NO.1.
