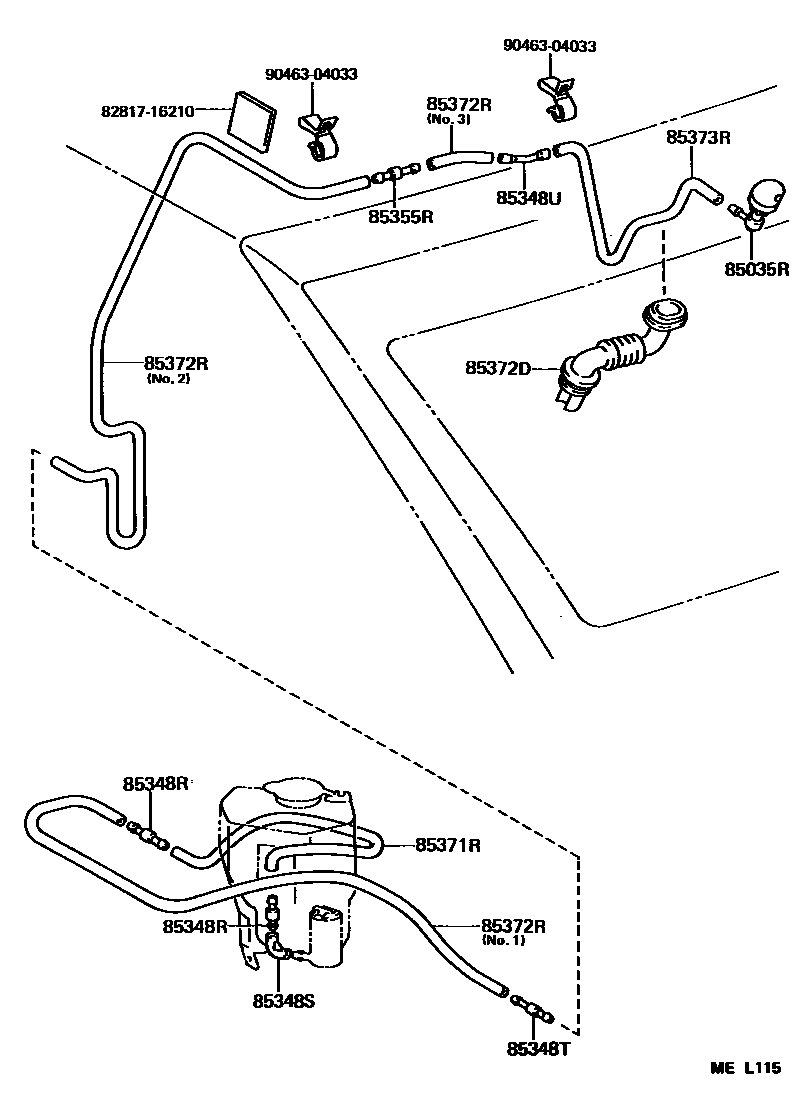

Toyota TERCEL — REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
main85349-89122iEL31..(3DS,5DS)..CND; EL31..(3DS,5DS)..USA..CBR; EL31..3DS..EFI;EL31..(3DS,5DS)..CND; EL31..3DS..USA..CBR198808-199009
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85355RVALVE, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1000
85372DGROMMET, REAR WASHER HOSE
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=2640,NO.2
L=2800,NO.2
L=1000,NO.3
L=1800,NO.1
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450
8281716210PROTECTOR, WIRING HARNESS, NO.1
main82817-16210
9046304033
main90463-04033
12 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota TERCEL
This section contains 12 genuine Toyota parts for the REAR WASHER system of the Toyota TERCEL. Key components include: NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2, JOINT, REAR WASHER HOSE, NO.3.
