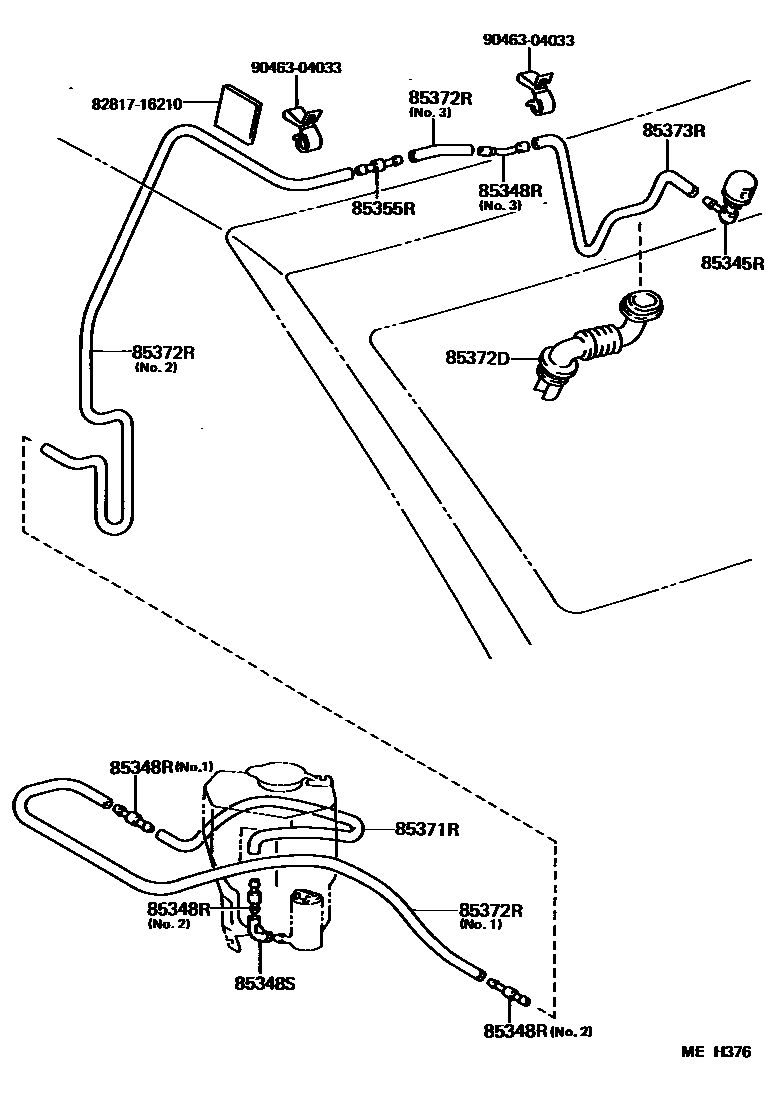

Toyota TERCEL — REAR WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
NO.1 & NO.2
NO.3
85348SJOINT, REAR WASHER ELBOW, NO.1
85355RVALVE, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1000
85372DGROMMET, REAR WASHER HOSE
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450(*H,L=60),NO.3
L=2640,NO.2
L=2800,NO.2
L=1200,NO.1
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=330)
8281716210PROTECTOR, WIRING HARNESS, NO.1
main82817-16210
9046304033
main90463-04033
10 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota TERCEL
This section contains 10 genuine Toyota parts for the REAR WASHER system of the Toyota TERCEL. Key components include: NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, VALVE, REAR WASHER HOSE, HOSE, REAR WASHER (FROM MOTOR TO JOINT).
